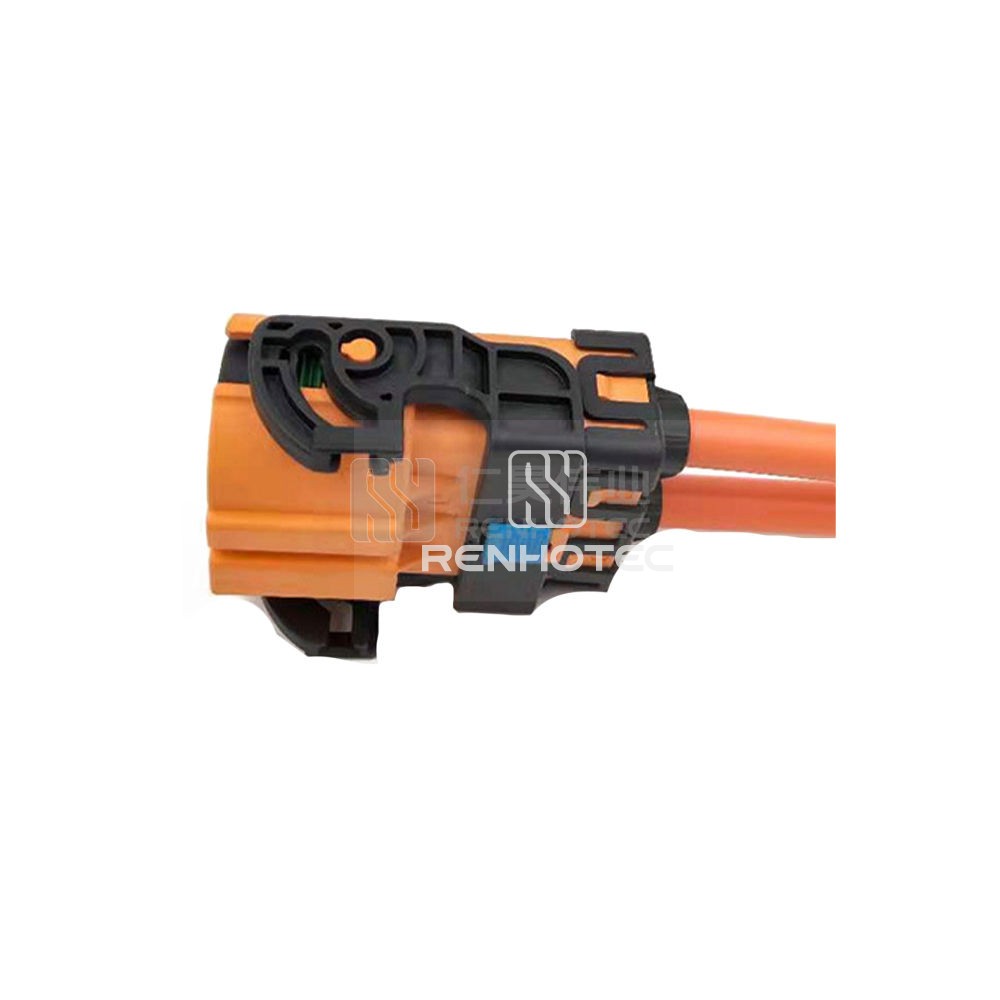

product image

ST515300-A-25

2 POS High Power Electric vehicle Cable Plug 150A 25mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle cable plug features 2 POS, 150A capacity, shielded 25mm² cable, and a key straight design. Perfect for efficient and reliable electric vehicle charging systems.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationStraight
Number of Positions2
Contact Size9mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishSilver
Mechanical
Mounting TypeCable Type
Wire Gauge or Range25mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage1500V
Rated Current150A
ShieldingShielded
