NI2-1-B060-2YYA-C08

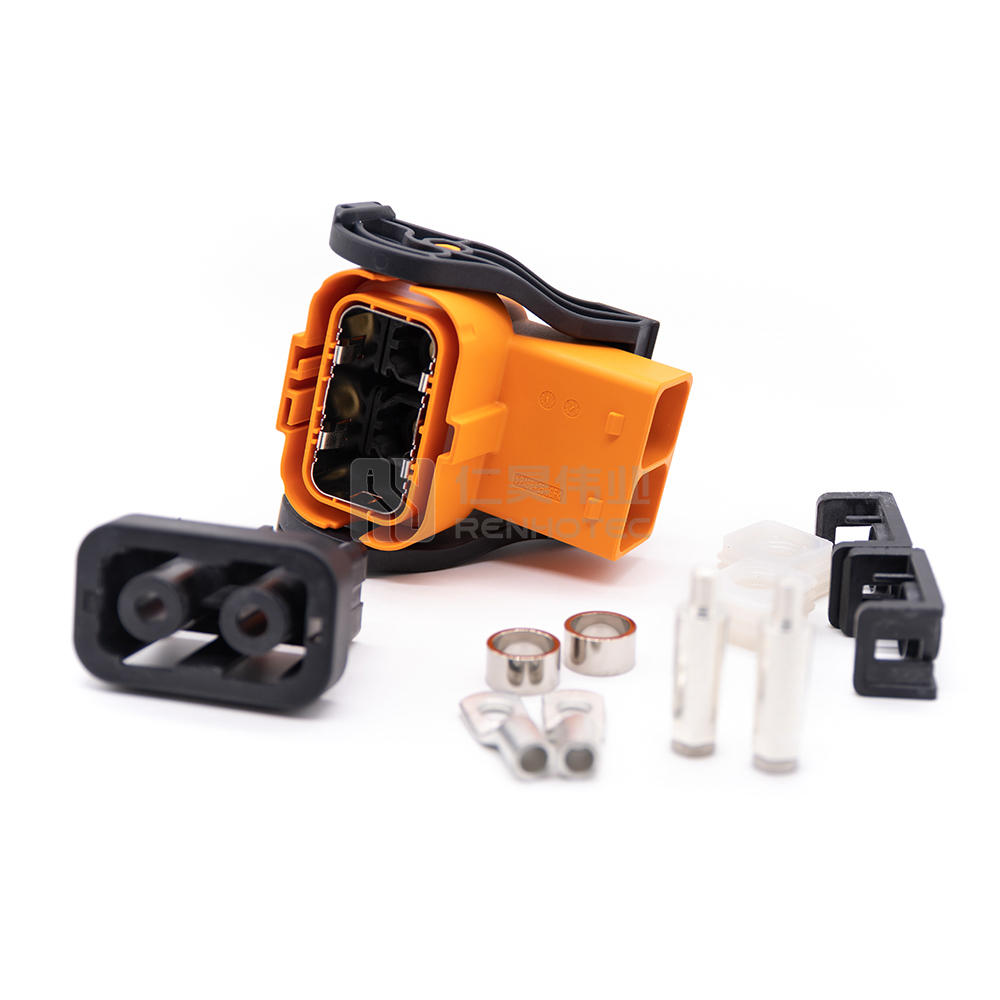

2 POS High Power Electric vehicle Cable Plug 125A 25mm2 Shielded Cable Y Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This high-quality plastic plug connector features 2 positions, 125A capacity, and is designed for use with 25mm² shielded cables. It offers a secure interlock connection and straight orientation, making it ideal for high voltage applications.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 2 |
Contact Size | 6mm |
Contact Termination | Crimp |
Key | Y |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 125A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 25mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
