Products > HVIL Series Connector > 2 POS High Power Electric Vehicle Cable Plug 125A 25mm² Shielded Cable Right Angle
FHV801280SX-25S01
2 POS High Power Electric Vehicle Cable Plug 125A 25mm² Shielded Cable Right Angle- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

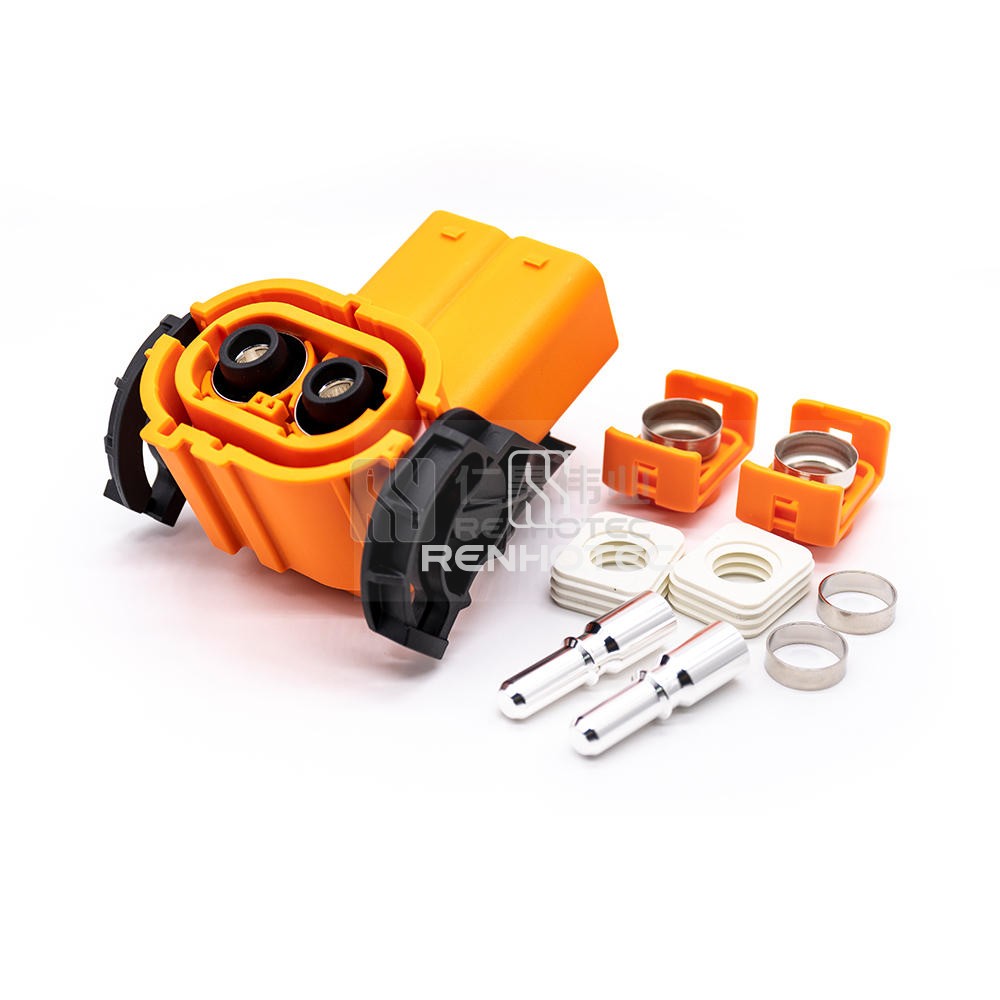

This high quality 2 POS electric vehicle cable plug features a 125A capacity, 25mm² shielded cable, and a convenient right angle design.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 2 |
Contact Size | 8mm |
Contact Termination | Crimp |
Key | X |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 125A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 25mm² |
Material | |
---|---|
Shell Material | PA66 |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
