Products > Energy Storage Connector > 12.0mm Power Entry Connector 350A Receptacle Busbar Teminal(M10 screw) Orange
FCC12BS-M1YL

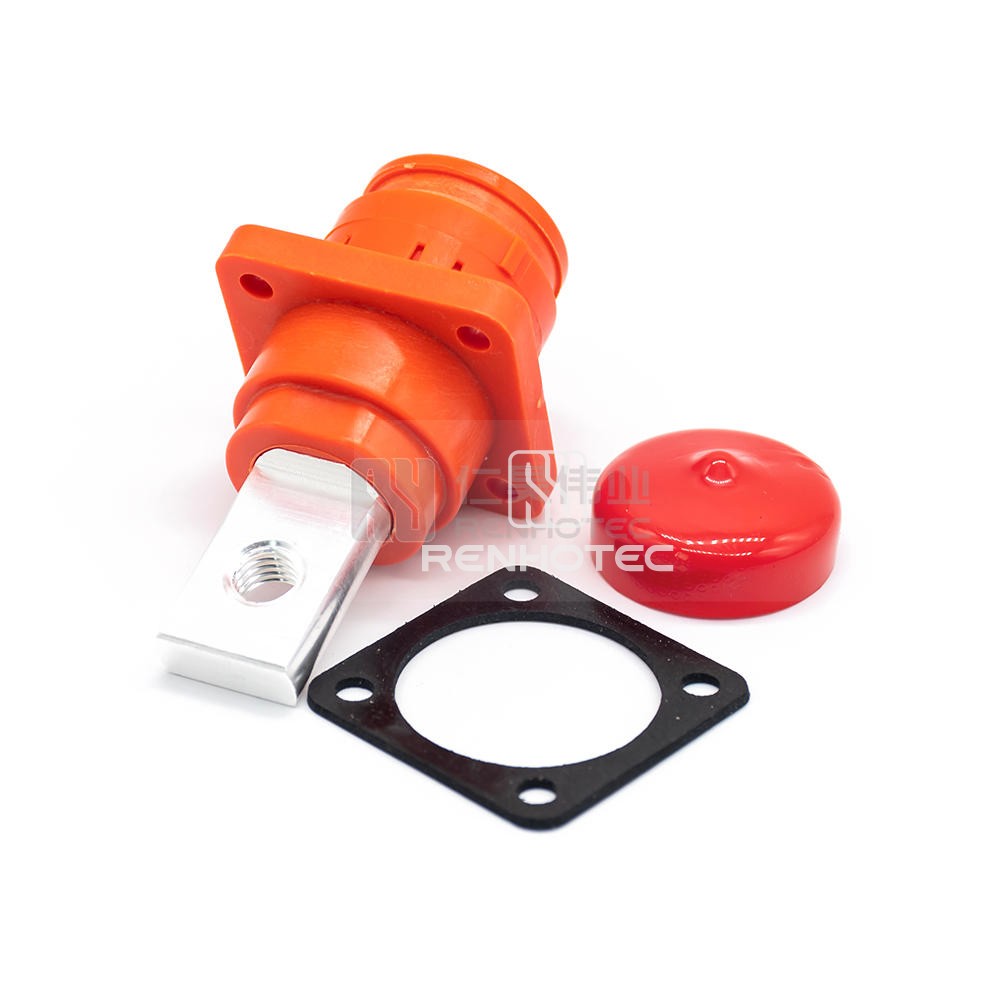

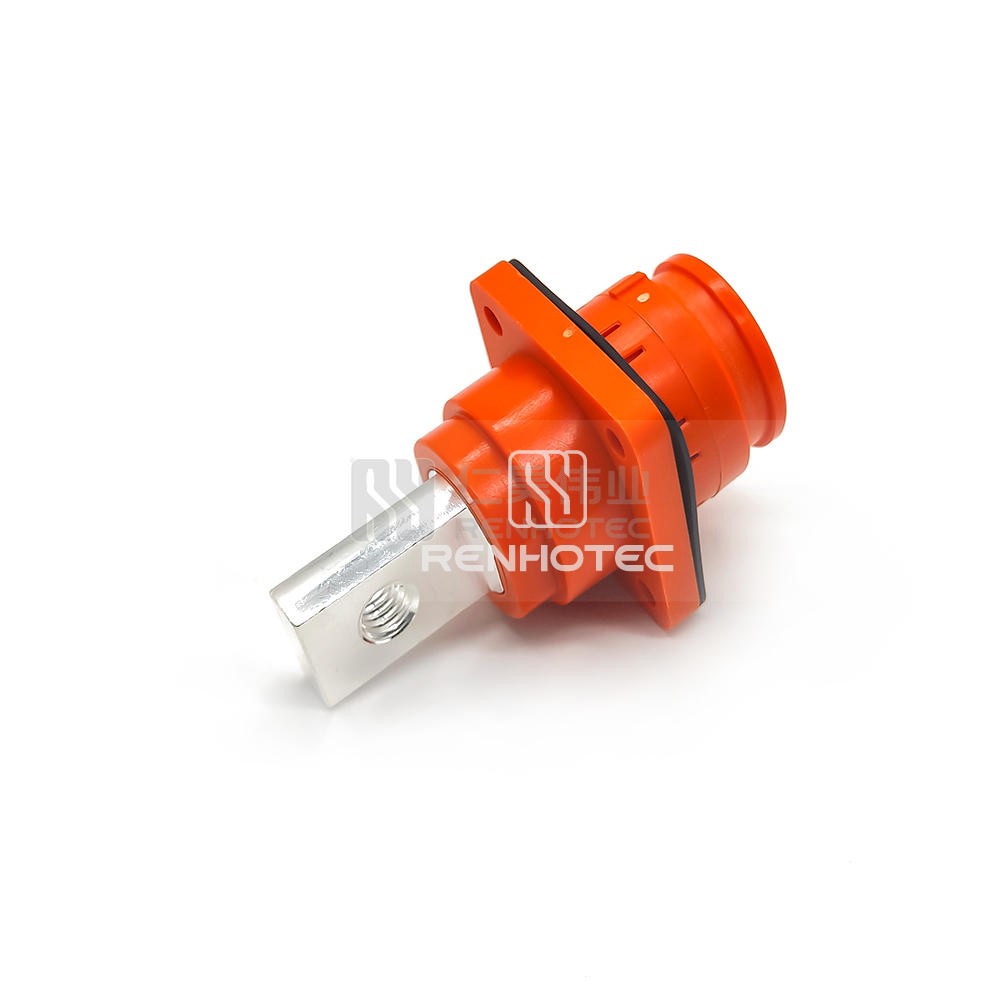

12.0mm Power Entry Connector 350A Receptacle Busbar Teminal(M10 screw) Orange- Overview
- Technical data
- Certification
- Download
Product excerpt
Get reliable power connections with this 12.0mm Power Entry Connector. Featuring a 350A receptacle with a secure M10 screw terminal in a vibrant orange color. Enhance your electrical projects with this high-quality connector.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Termination | Busbar |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 350A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Panel Mount |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
