Products > Energy Storage Connector > 12.0mm Power Entry Connector 250A Cable Plug Right Angled 70mm2 Unshielded Cable Red
FCC1270-F1RR
12.0mm Power Entry Connector 250A Cable Plug Right Angled 70mm2 Unshielded Cable Red- Overview
- Technical data
- Certification
- Download
Product excerpt

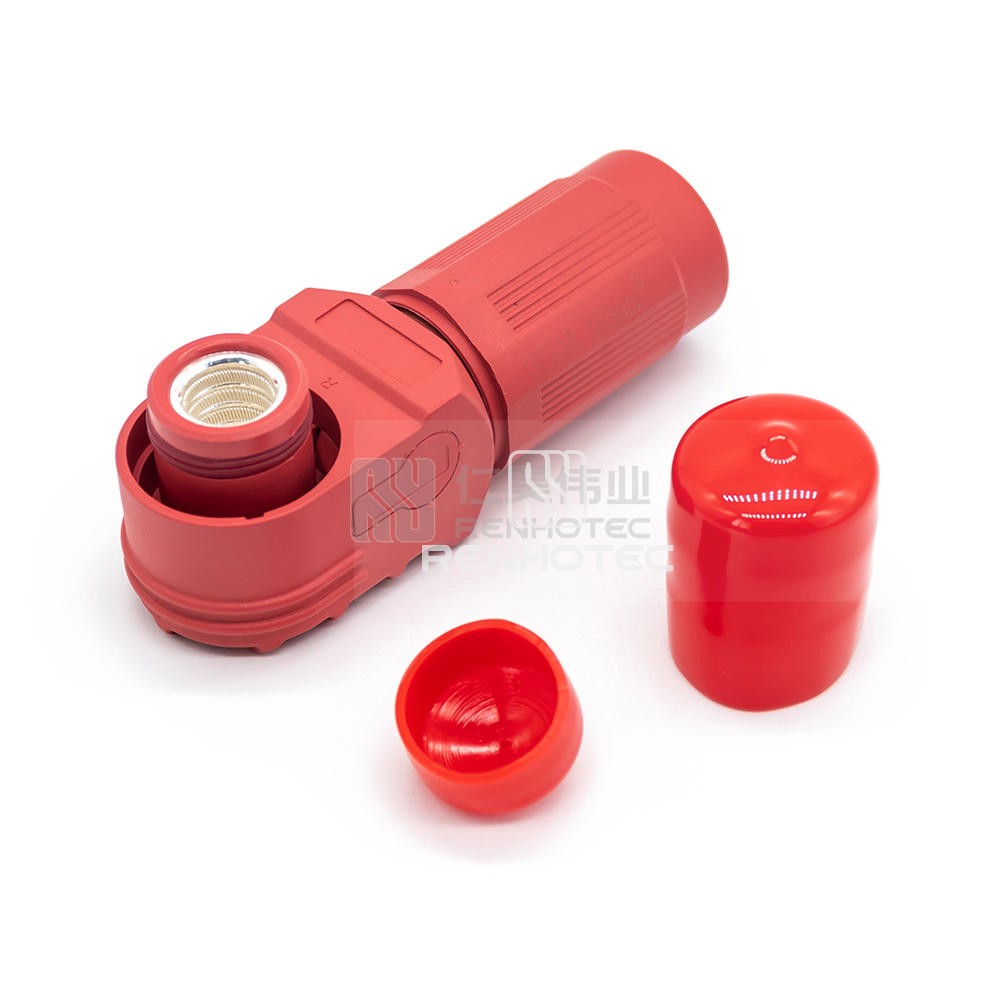

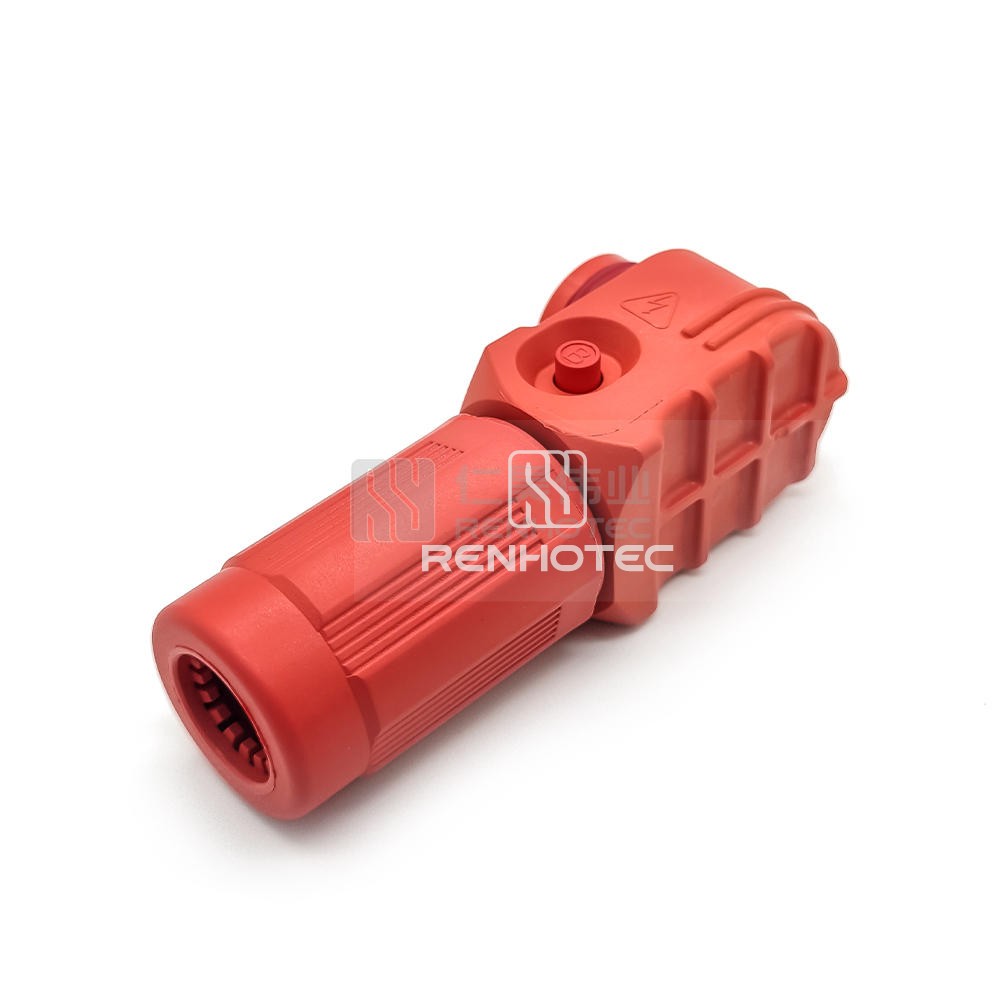

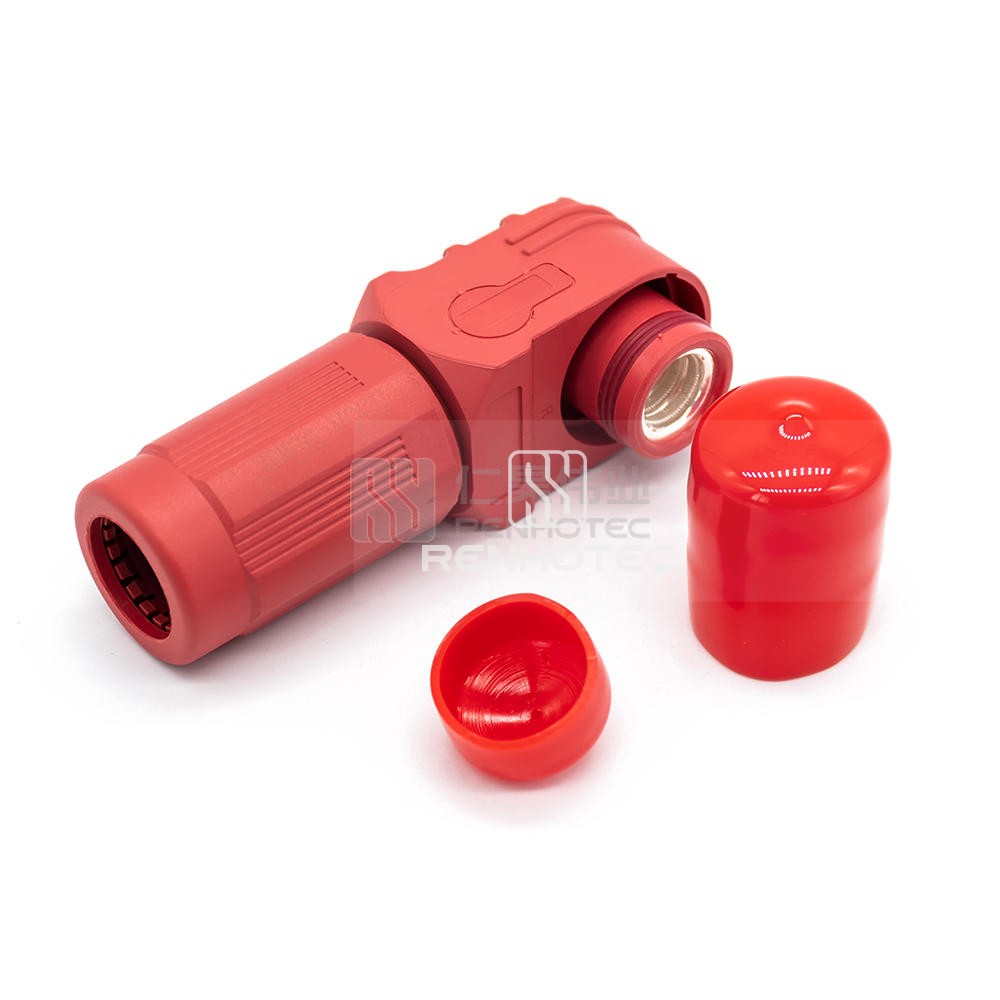

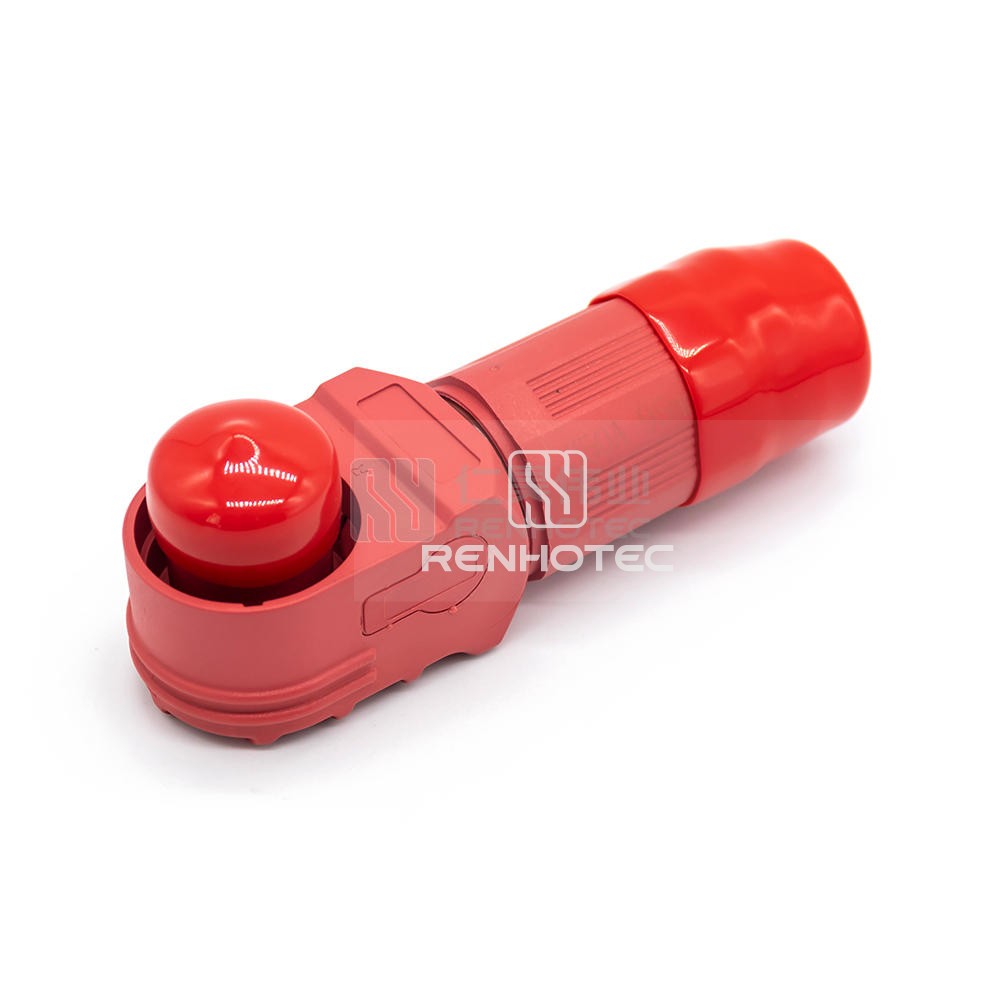

This 12.0mm power entry connector features a 250A capacity, right-angled design, and is compatible with 70mm2 unshielded cables in a striking red color. Upgrade your connections with this high-quality, reliable component.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Termination | Crimp |
| Color | Red |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 250A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
