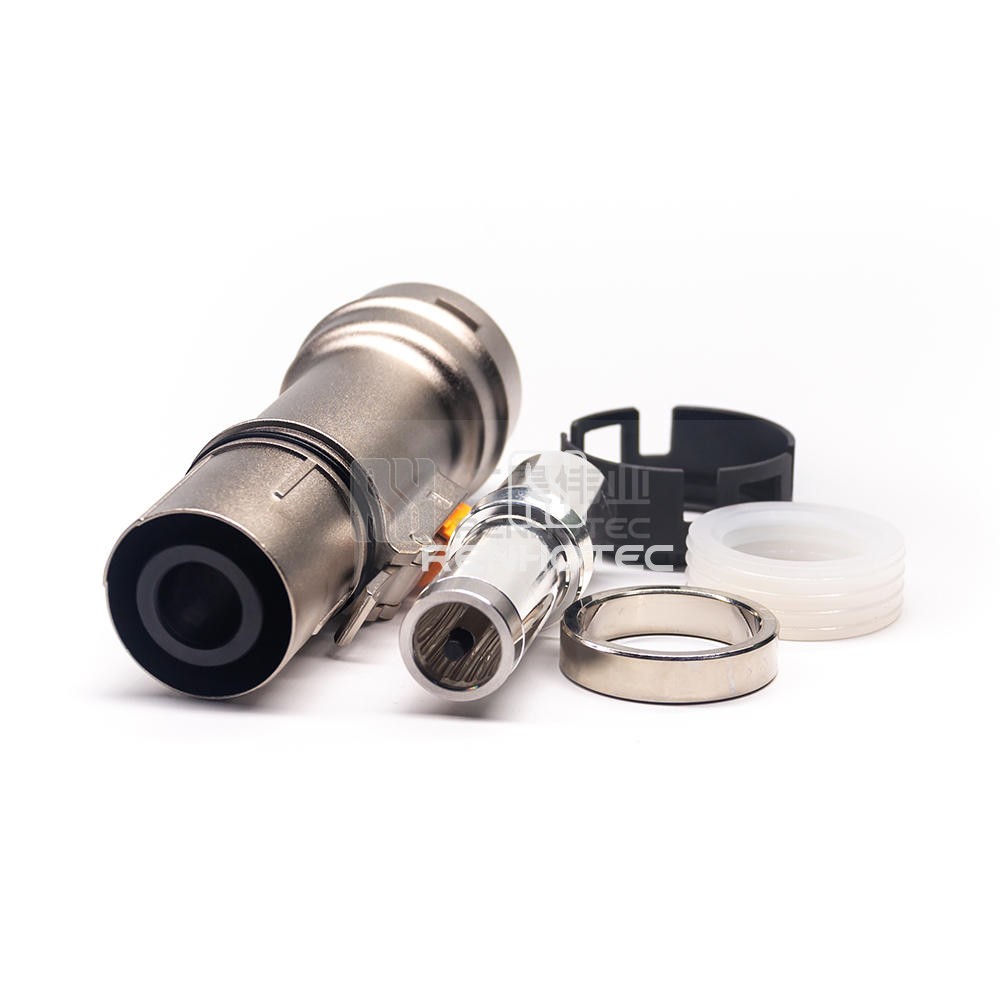

product image

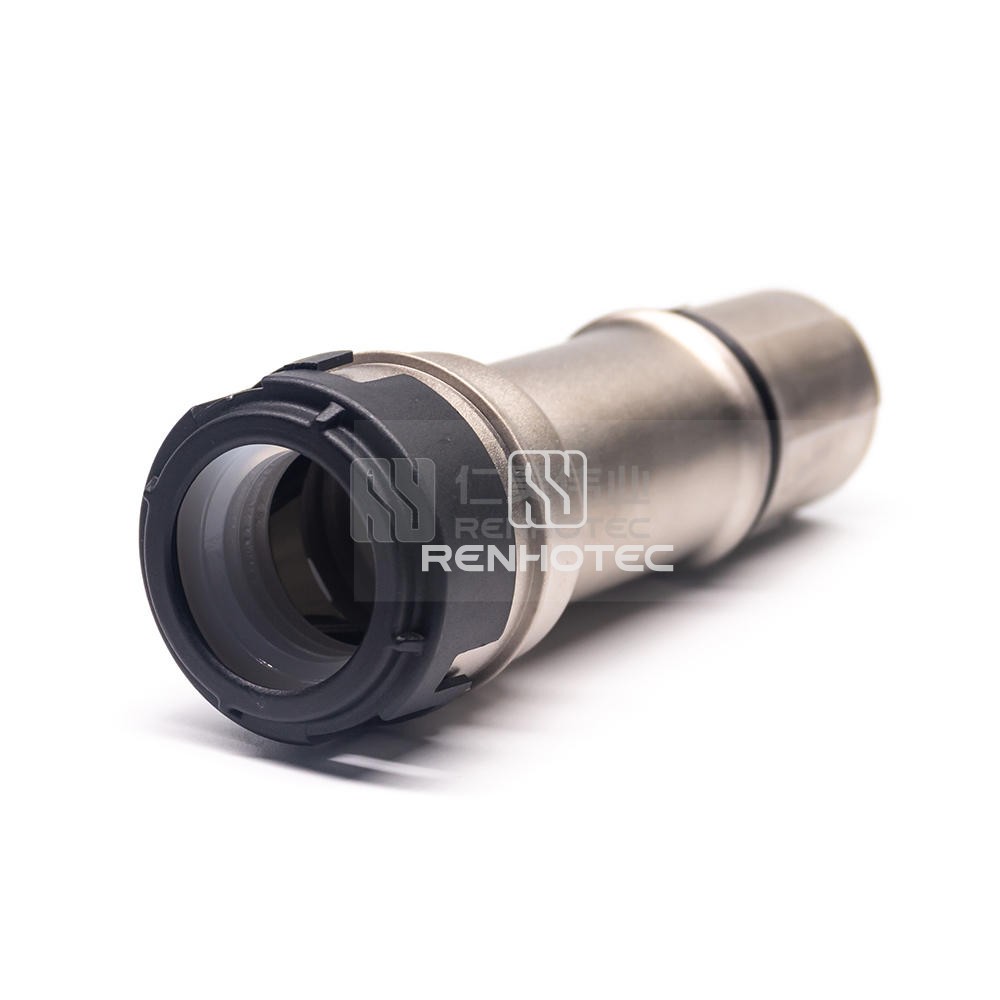

product image

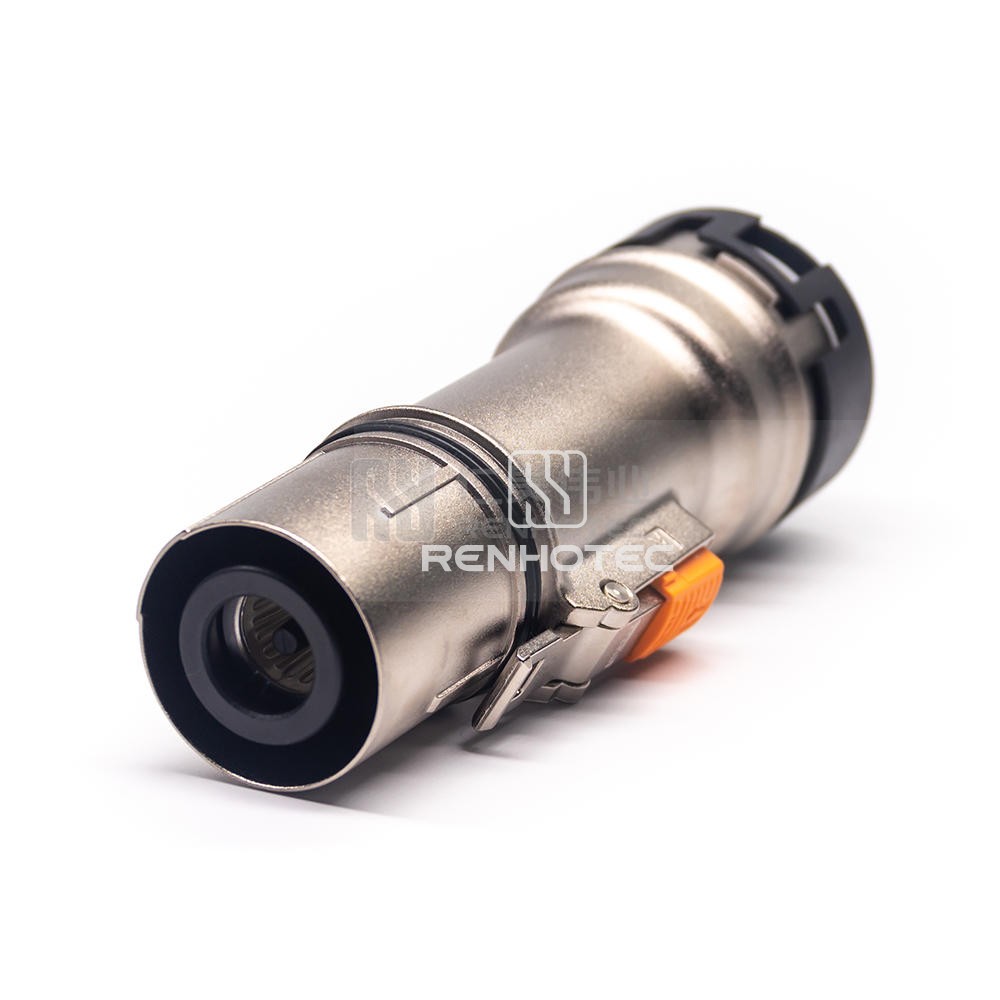

product image

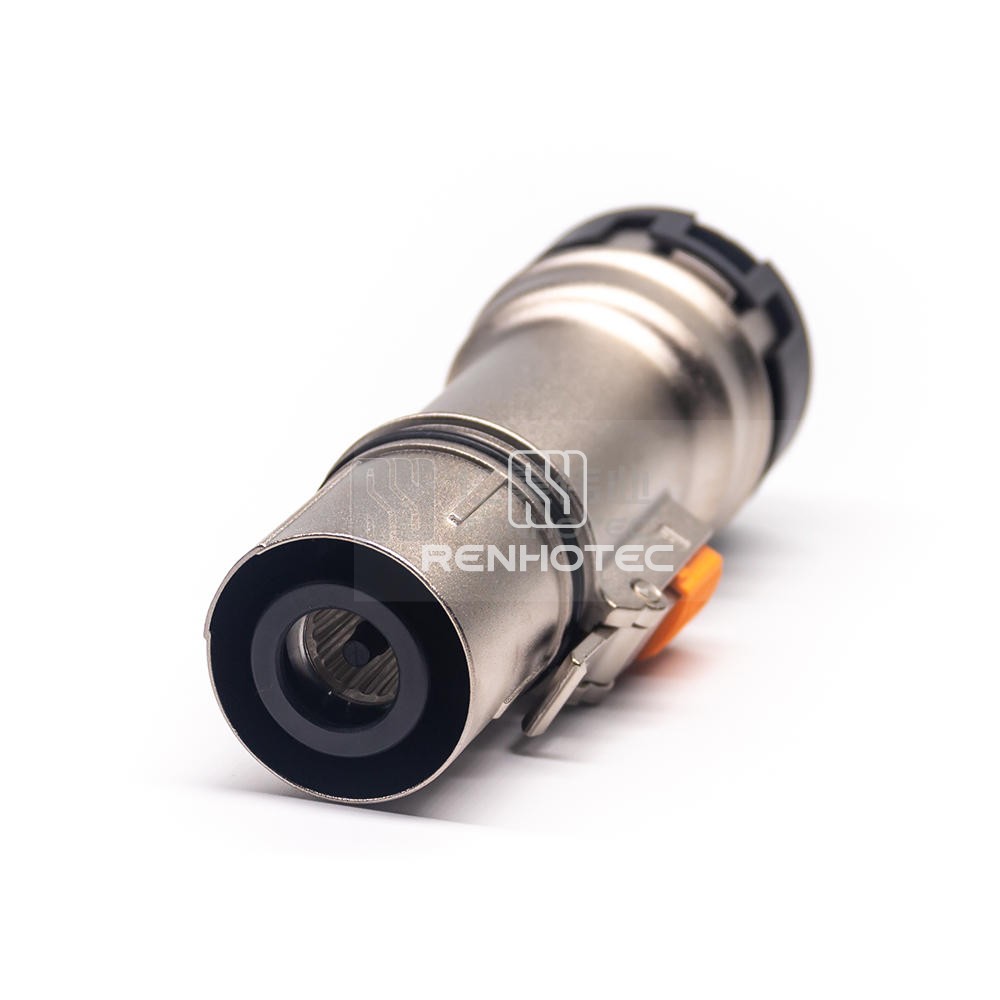

product image

NI1-1-S120-1AYA-C12

1 POS High Voltage Interlock Connector Metal Plug 350A 95mm2 Shielded Cable A Key Straight
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high voltage interlock connector metal plug with a 350A capacity and shielded cable is designed with a straight A key for secure and efficient connections. Ideal for applications requiring powerful connectivity in various industries.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationStraight
Number of Positions1
Contact Size12mm
Contact TerminationCrimp
KeyA
ColorSilver
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current350A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range95mm²
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
