NI1-1-B120-1YYB-C10

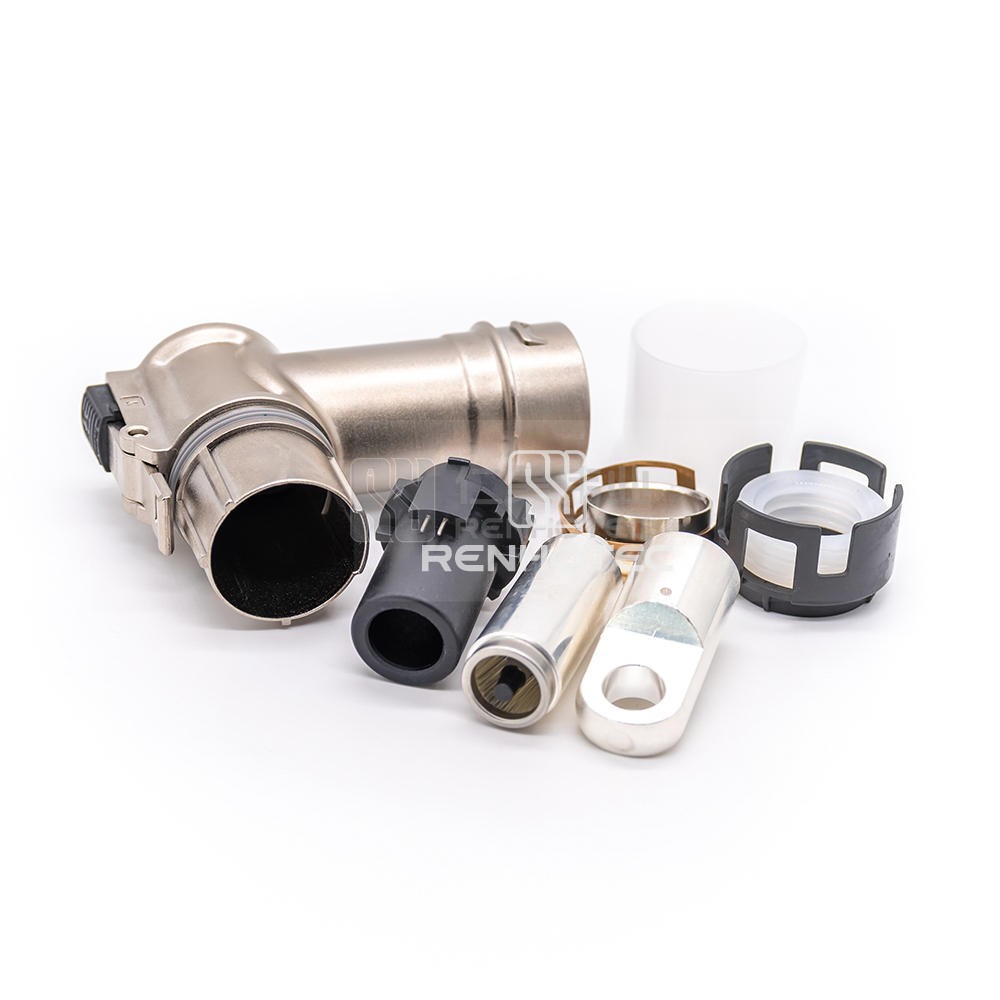

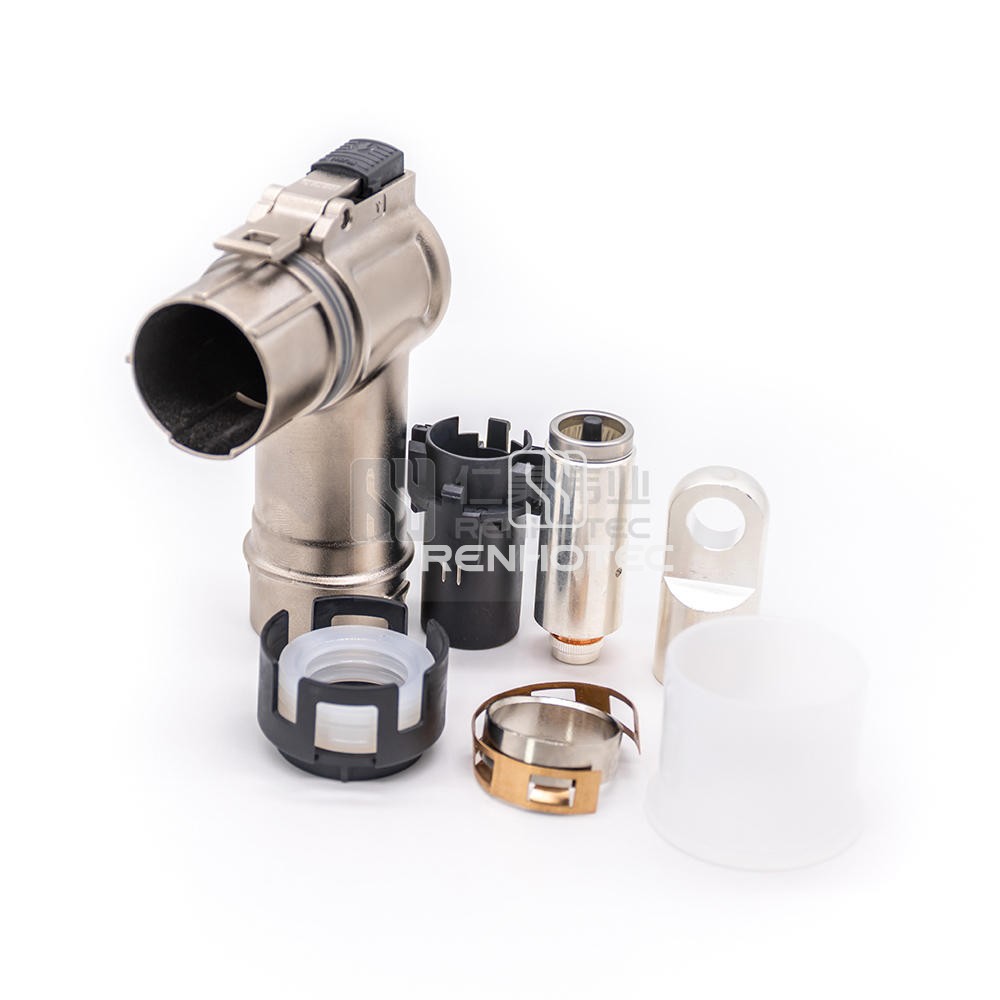

1 POS High Voltage Interlock Connector Metal Plug 200A 50mm2 Shielded Cable Y Key Right Angle
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high-quality high voltage interlock connector features a 200A capacity, shielded 50mm² cable, Y key design, and right angle plug. Ideal for secure and efficient power connections in various applications.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypePlug
OrientationRight Angle
Number of Positions1
Contact Size12mm
Contact TerminationCrimp
KeyY
ColorSilver
FeaturesIntegrated Internal HVIL
Electrical
Rated Voltage800V
Rated Current200A
ShieldingShielded
Mechanical
Mounting TypeCable Type
Wire Gauge or Range50mm²
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
