ST522000-A-35

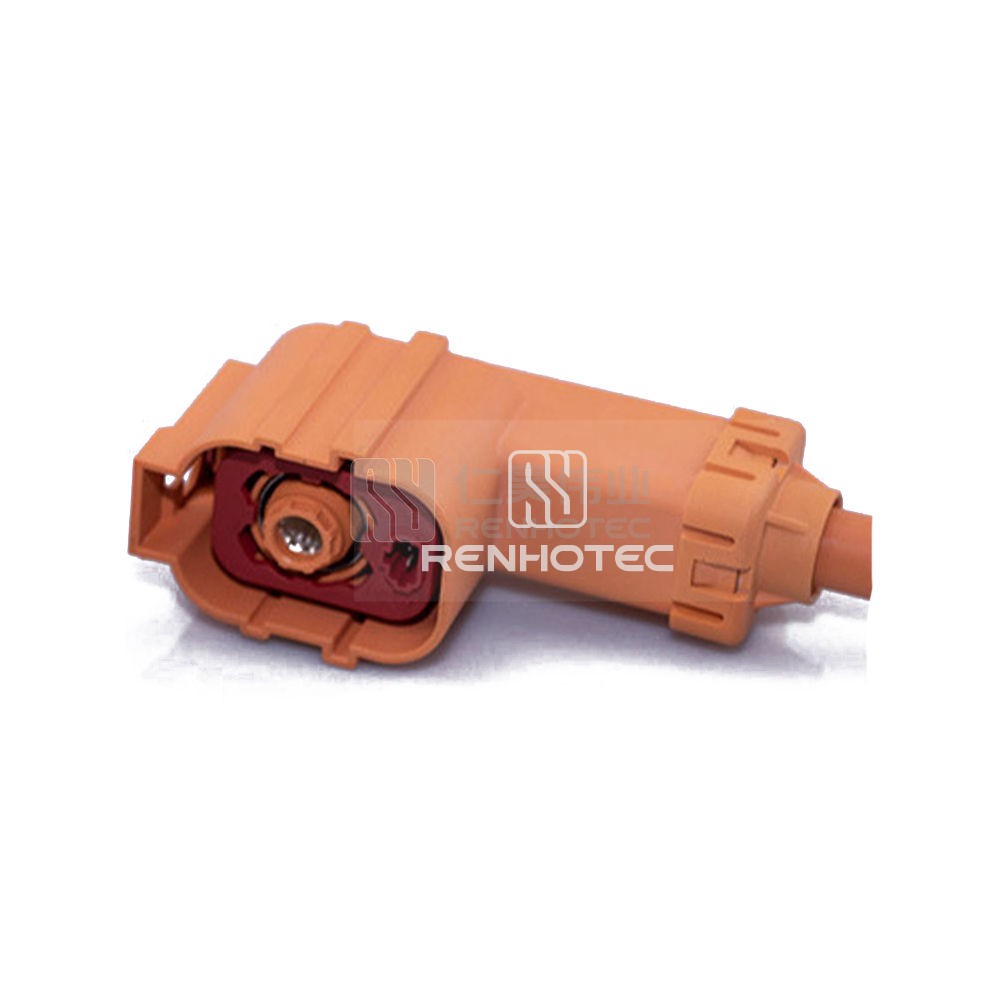

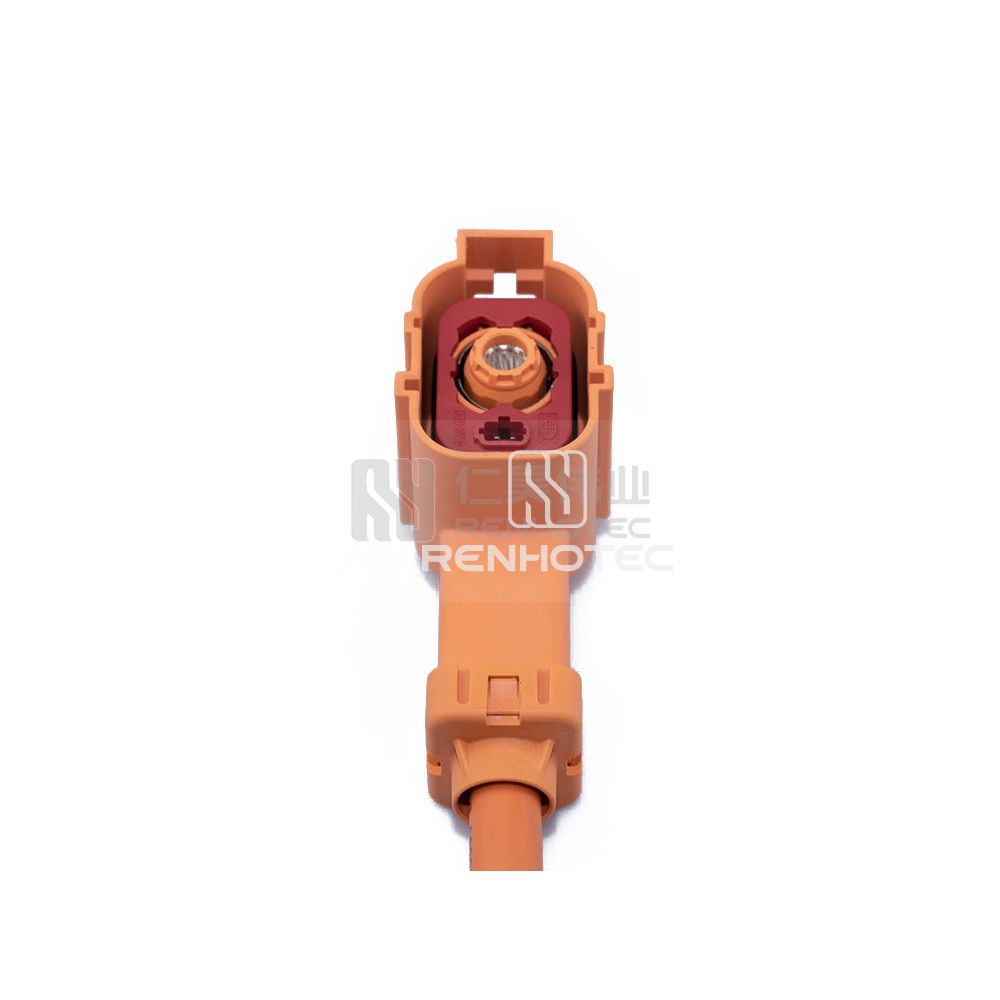

1 POS High Power Electric vehicle Cable Plug 200A 35mm2 Shielded Cable A Key Right Angle
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle cable plug features a 200A capacity, 35mm² shielded cable, and a convenient key right angle design. Ideal for seamless electric vehicle charging and power management in various applications.
GeneralMaterialMechanicalEnvironmentalElectrical
General
Connector TypePlug
OrientationRight Angle
Number of Positions1
Contact Size8mm
Contact TerminationCrimp
KeyA
ColorOrange
FeaturesWaterproof
Material
Shell MaterialPA66+GF
Contact MaterialCopper Alloy
Contact FinishSilver
Mechanical
Mounting TypeCable Type
Wire Gauge or Range35mm²
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
Electrical
Rated Voltage1500V
Rated Current200A
ShieldingShielded

Certification

High Voltage Interlock Connectors CE Download

Catelog

RENHOTEC EV Product Catalog [EN] Download
RENHOTEC HVIL Connector Catalog [EN] Download
