Products > HVIL Series Connector > 6 POS High Power Electric vehicle connector Socket 40A 6mm2 Shielded Cable A Key
ST534000-A
6 POS High Power Electric vehicle connector Socket 40A 6mm2 Shielded Cable A Key- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt

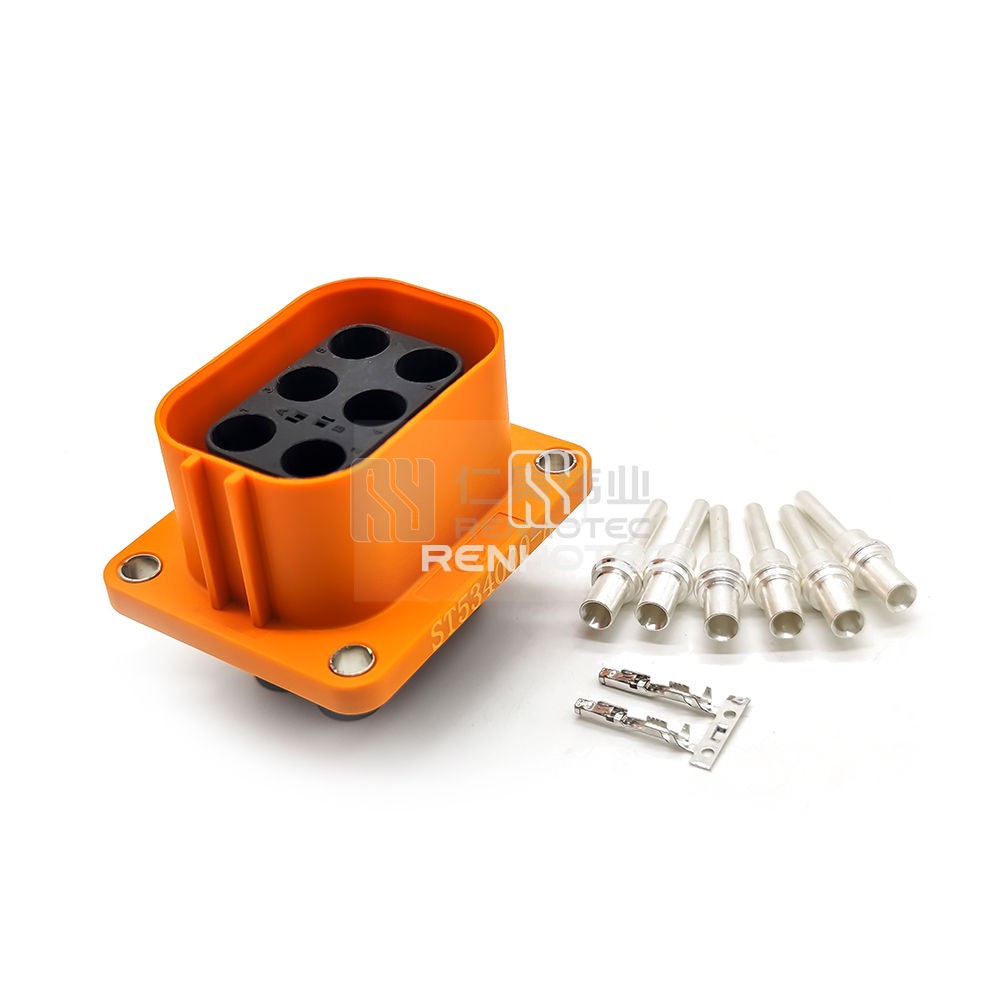

This high power electric vehicle connector socket features 6 positions, 40A capacity, and a 6mm² shielded cable with A key. Designed for waterproof touch proof connections, ensuring safety and reliability for electric vehicles.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 6 |
Contact Termination | Crimp |
Key | A |
Color | Orange |
Features | Waterproof |
Electrical | |
---|---|
Rated Voltage | 800V |
Rated Current | 40A |
Shielding | Shielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Four Flange |
Wire Gauge or Range | 6mm² |
Material | |
---|---|
Shell Material | PA66+GF |
Contact Material | Copper Alloy |
Contact Finish | Tin |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
Certification
High Voltage Interlock Connectors CE | Download |
