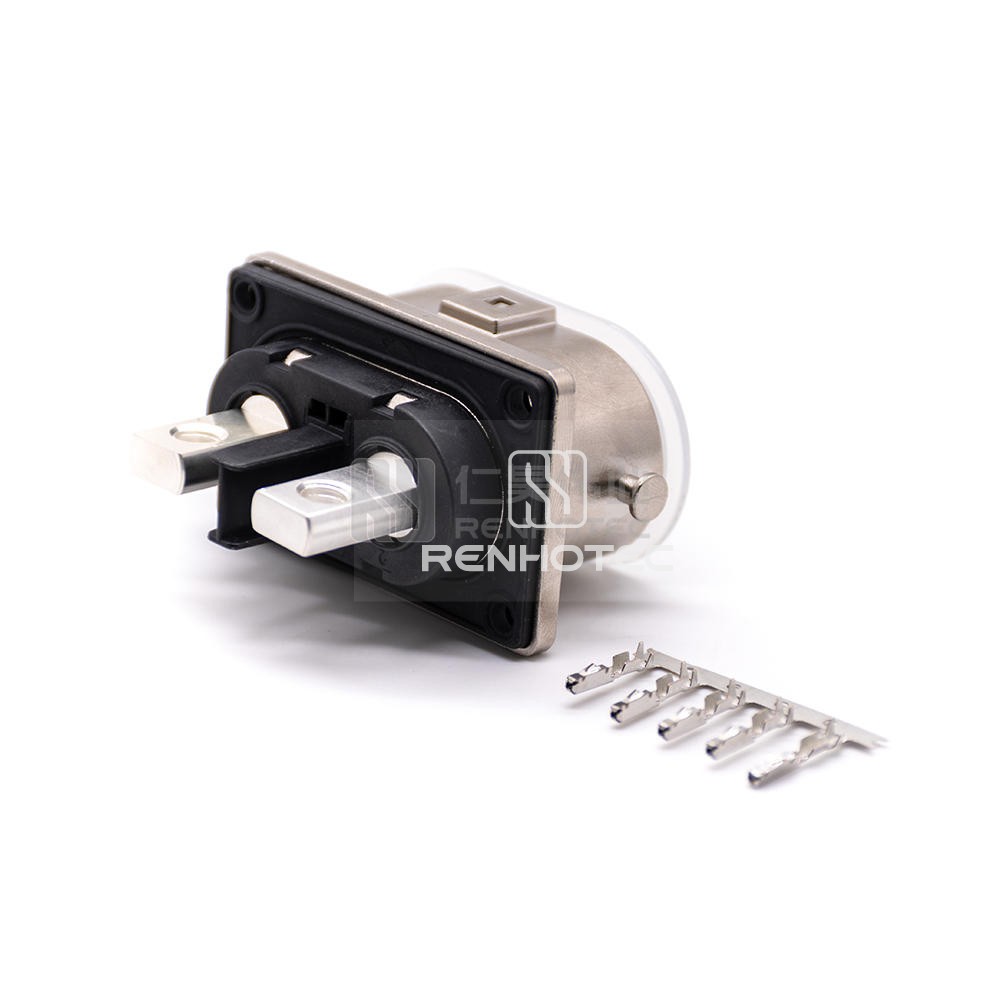

product image

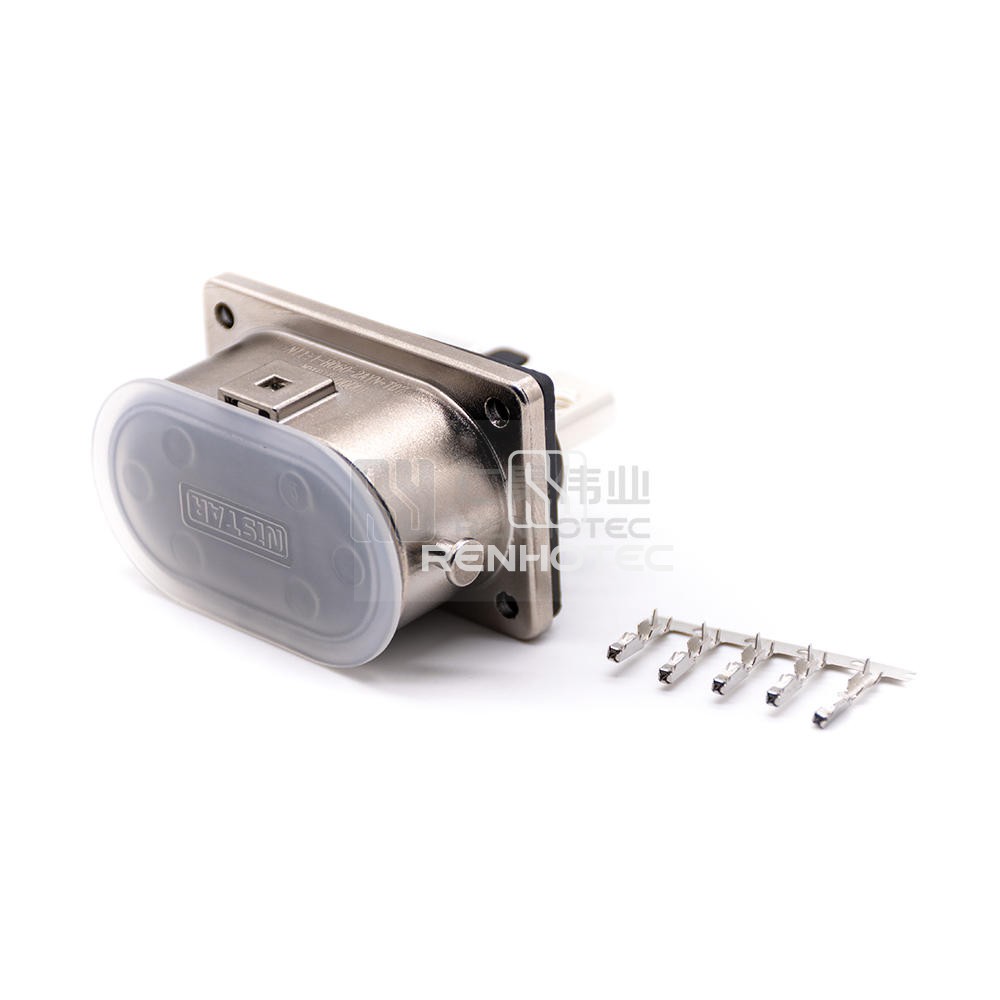

product image

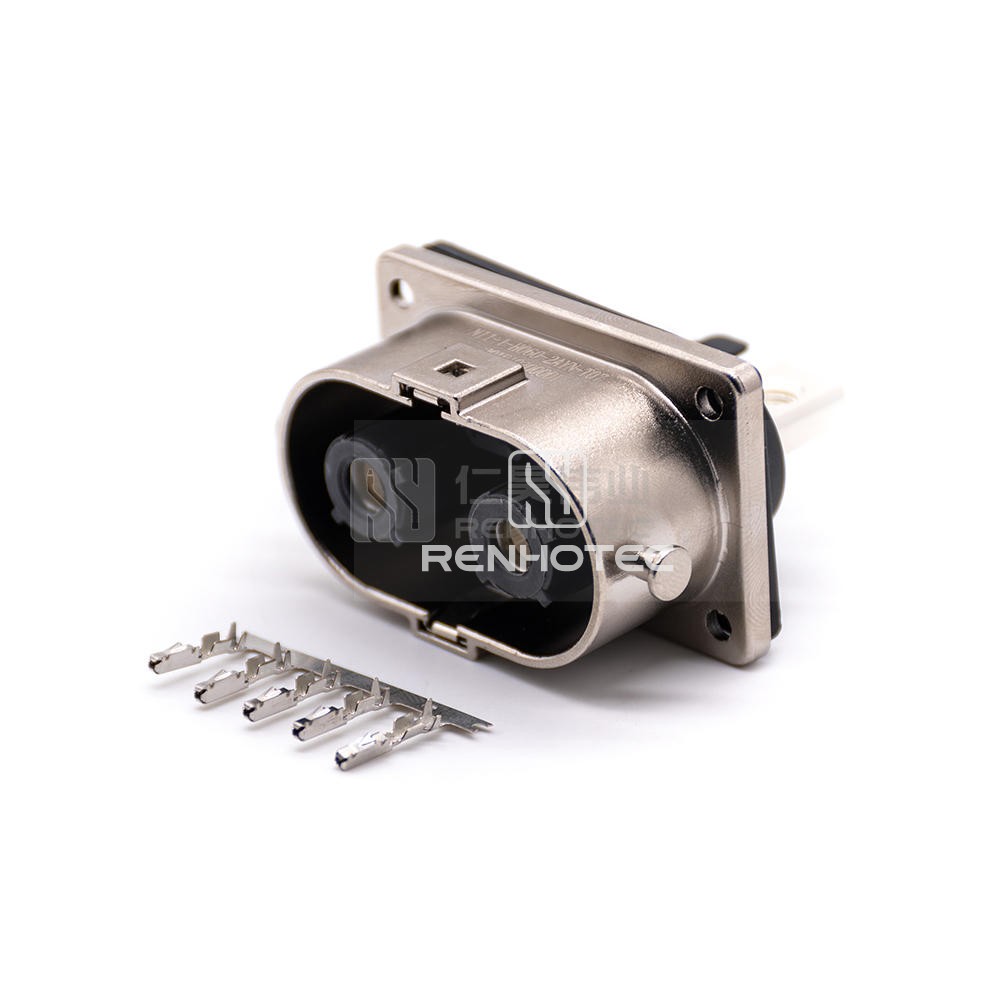

product image

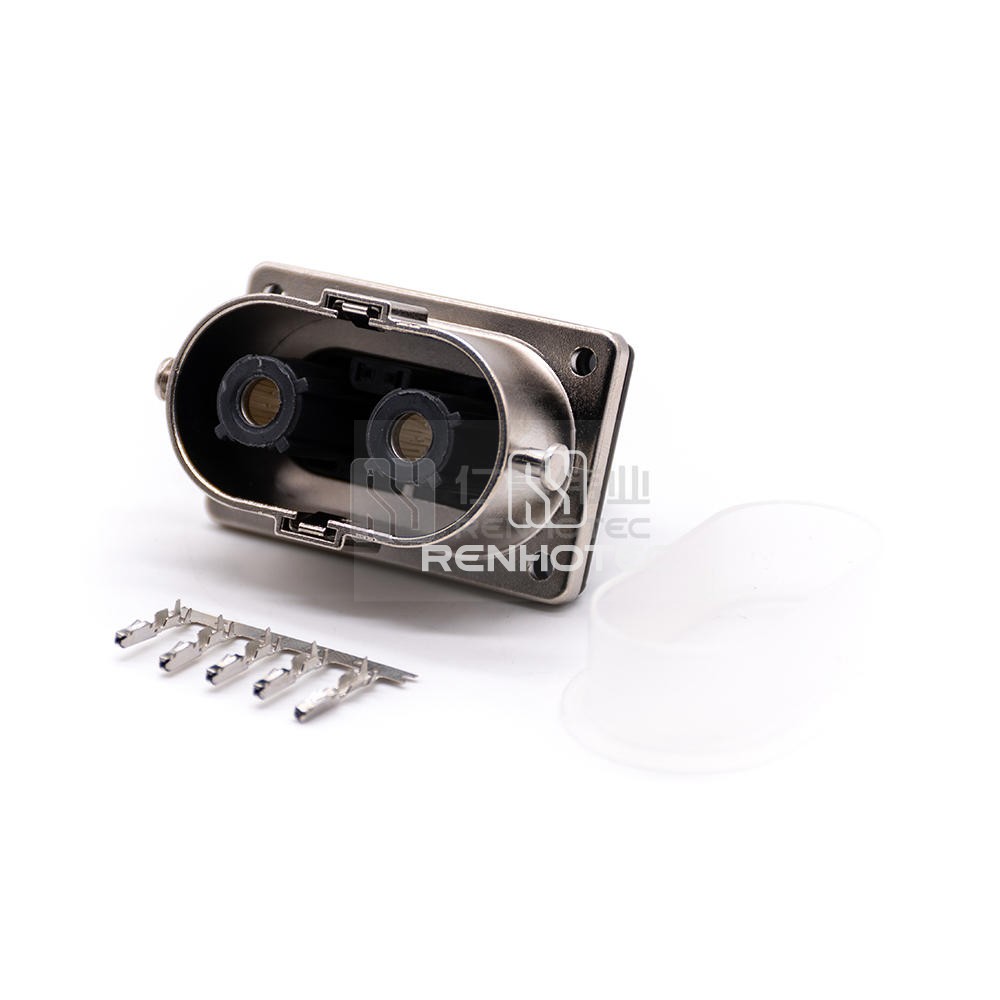

product image

NI1-1-H060-2AYN-T03

2 POS High Power Electric vehicle connector Socket 125A Busbar φ6.5 Through Hole A Key Box Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

×

Product excerpt

This high power electric vehicle connector socket features a 125A busbar with a φ6.5 through hole and A key box mount. It is waterproof and touch proof, ensuring durability and safety for your electric vehicle needs.
GeneralElectricalMechanicalMaterialEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Number of Positions2
Contact Size6mm
Contact TerminationBusbar
KeyA
ColorSilver
Electrical
Rated Voltage1000V
Rated Current125A
ShieldingShielded
Mechanical
Mounting TypePanel Mount
Mounting FeatureFour Flange
Wire Gauge or Rangeφ6.5Through Hole
Material
Shell MaterialZinc Alloy
Contact MaterialCopper Alloy
Contact FinishNickel
Environmental
Ingress ProtectionIP67
Operating Temperature-40°C ~ + 125°C
FlammabilityUL94 V-0
