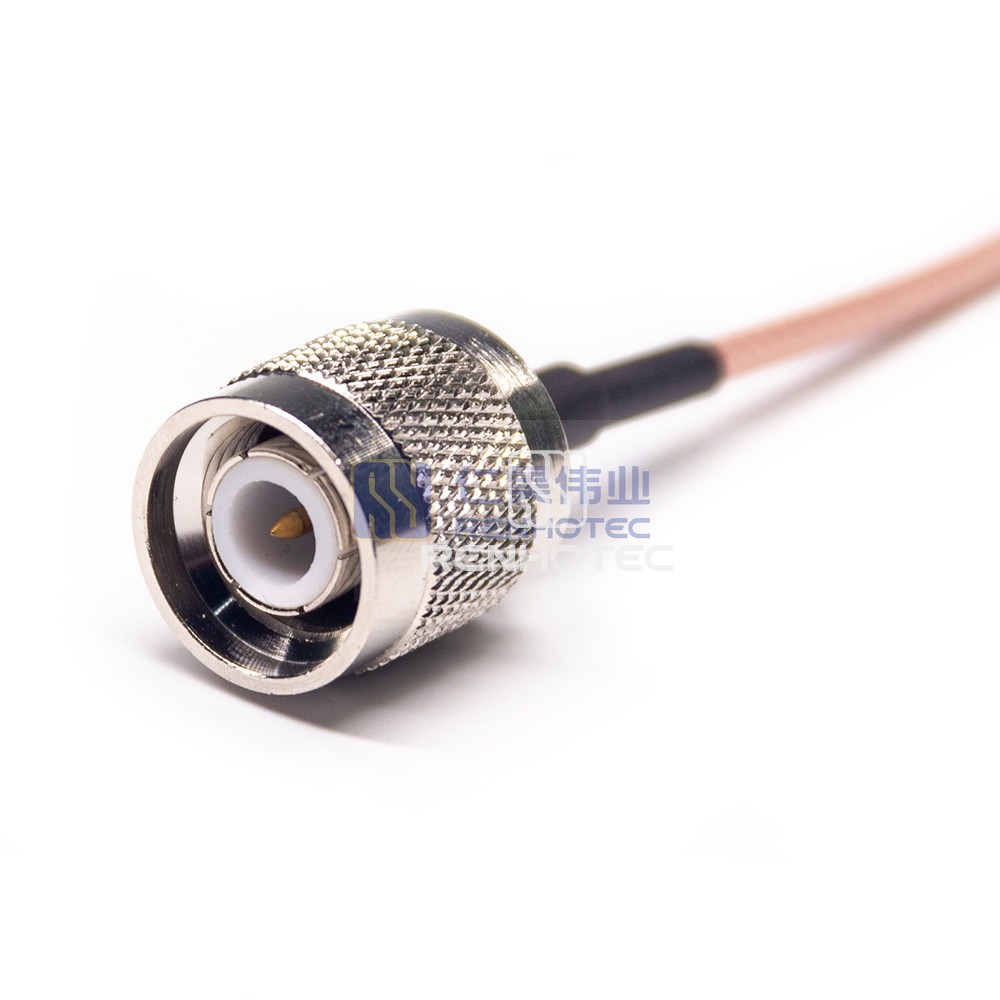

Products > RF Cable Assembly > TNC Plug to Right Angle MCX Plug RF Cable Assemblies RG316 Cable 50ohm
R02-T01-10014-20
TNC Plug to Right Angle MCX Plug RF Cable Assemblies RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality TNC plug to right angle MCX plug RF cable assemblies featuring RG316 cable with 50 ohm impedance. Perfect for connecting components in RF applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | TNC Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | MCX Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
