R02-B01-10001-100

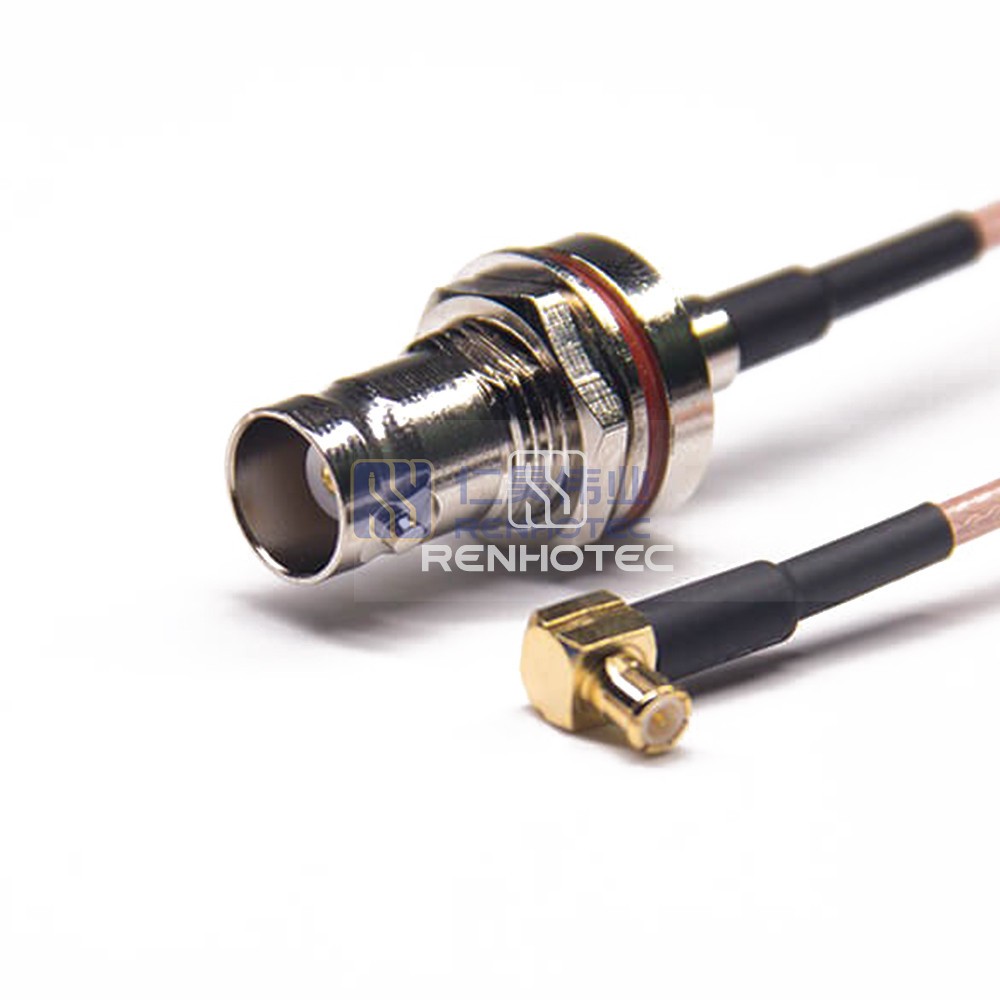

BNC Jack Bulkhead Front Side Nut to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality RF cable assembly featuring a BNC Jack Bulkhead Front Side Nut to MCX Plug Right Angle connection, made with 50 Ohm RG316 Coax.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
FeaturesWaterproof
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
