R02-B01-10018-100

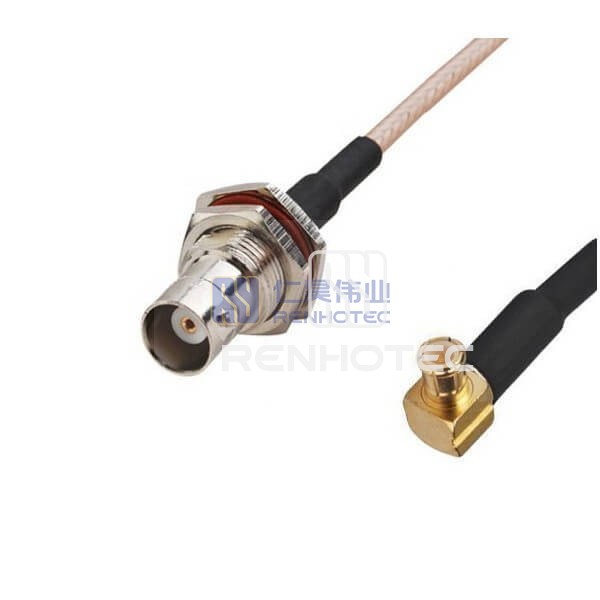

BNC Jack Bulkhead Front Side Nut to MCX Plug Right Angle RF Cable Assembly with 50 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

The BNC Jack Bulkhead to MCX Plug Right Angle RF Cable Assembly features 50 Ohm RG316 Coax, ideal for seamless RF connections.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesMCX Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
FeaturesWaterproof
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
