R02-B01-10123-100

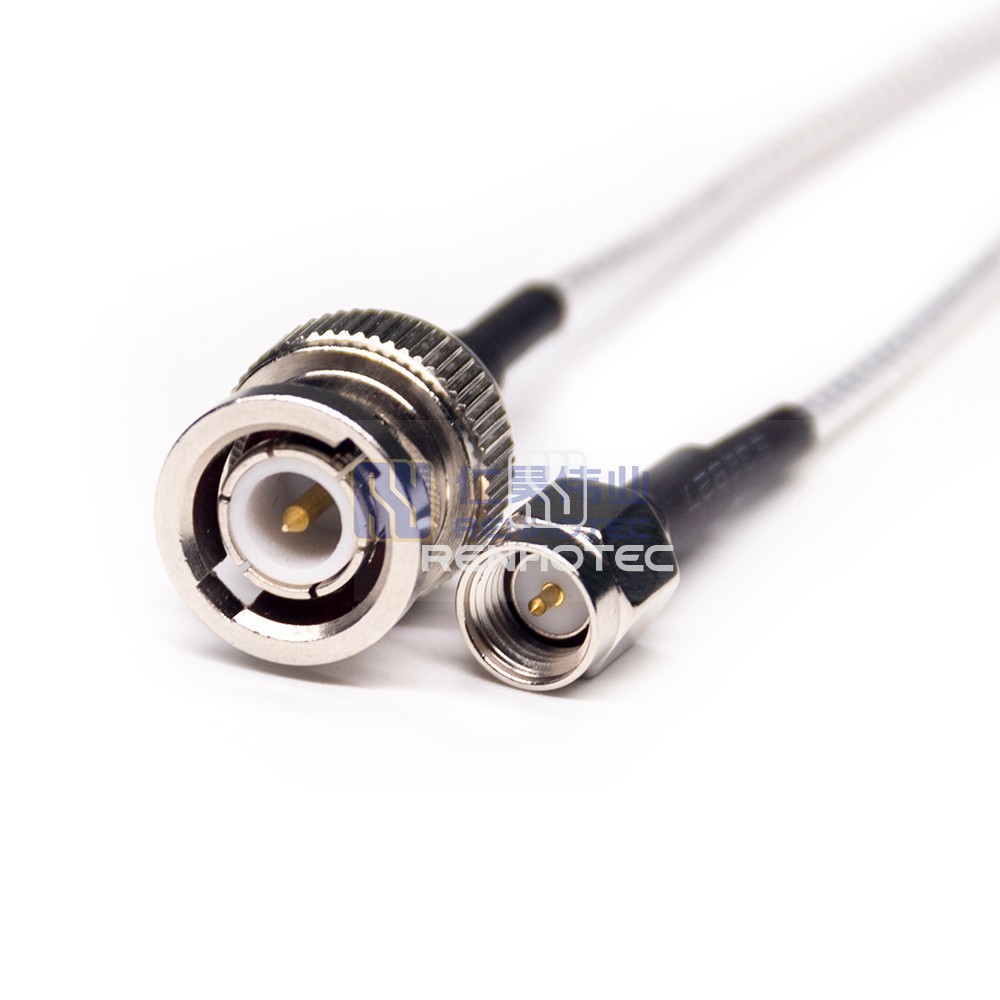

Straight BNC Plug to SMA Plug RF Pigtail Cable RG316 Cable 50ohm
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality Straight BNC Plug to SMA Plug RF Pigtail Cable made of RG316 cable with 50ohm impedance. Perfect for connecting devices in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMA Plug
2nd Contact TypeMale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
