R02-B01-10117-100

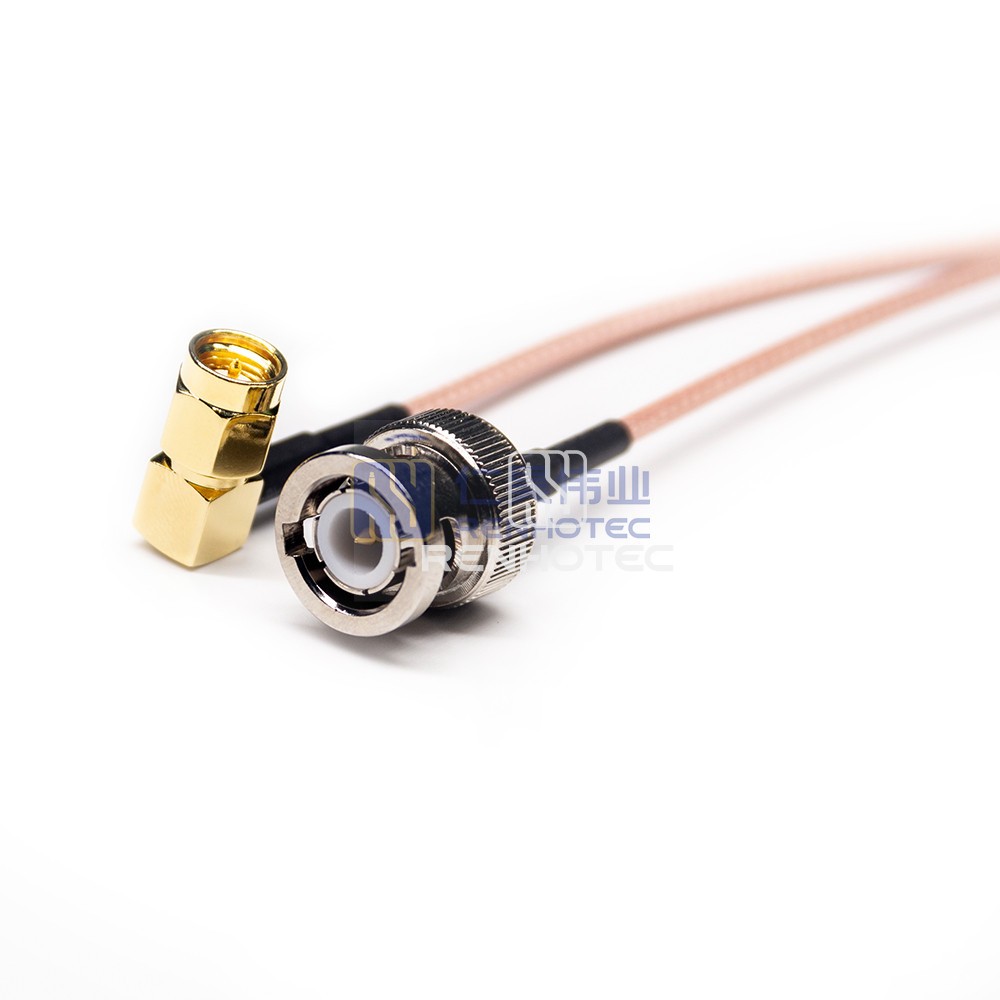

BNC Plug to Right Angle SMA Plug RF Pigtail Cable RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt
Connect devices with ease using this BNC Plug to Right Angle SMA Plug RF Pigtail Cable RG316 Cable 50ohm. It ensures reliable signal transmission and is suitable for various RF applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | BNC Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | SMA Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
