Products > RF Cable Assembly > MCX Male Right Angle to UHF Female Bulkhead Cable Assembly with 50Ohm RG316 Coax
R02-U01-10001-10

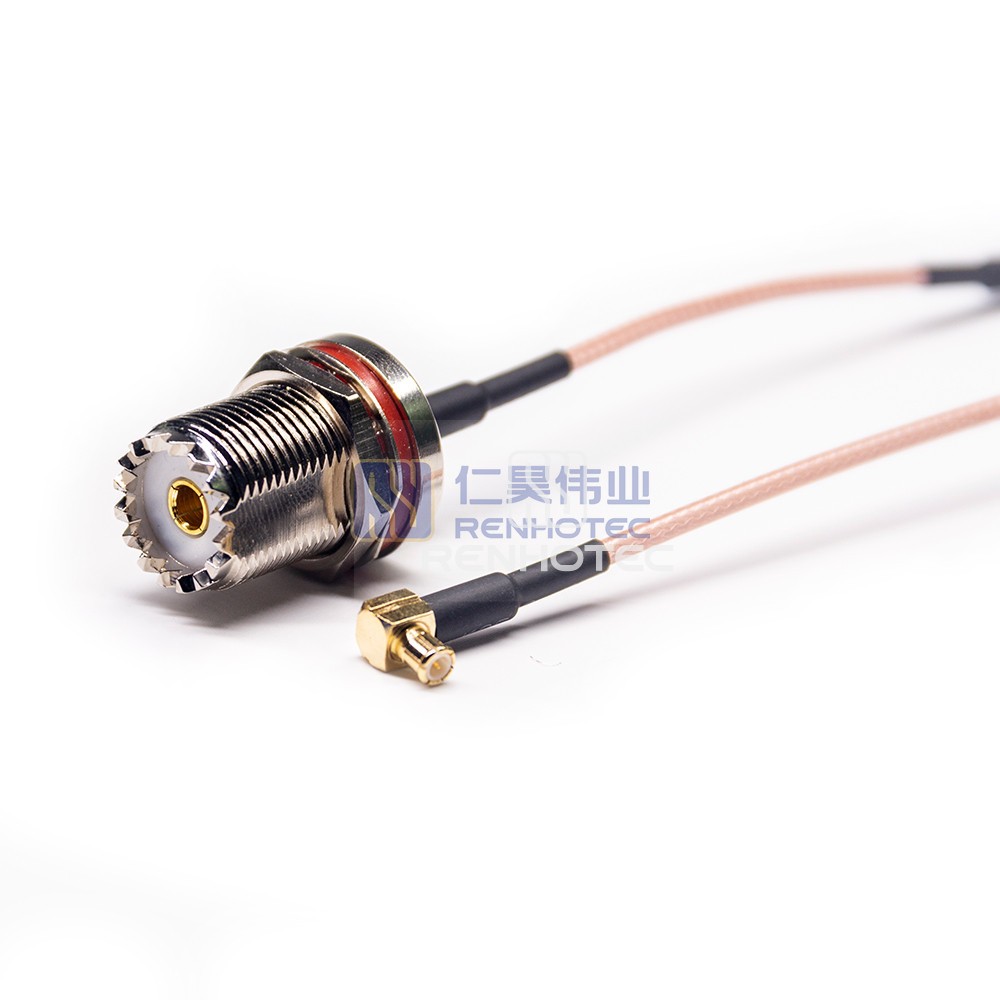

MCX Male Right Angle to UHF Female Bulkhead Cable Assembly with 50Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure reliable RF signal transmission with this MCX Male Right Angle to UHF Female Bulkhead Cable Assembly. Made with 50Ohm RG316 coaxial cable, it's ideal for connecting antennas or RF devices in various applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | MCX Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Right Angle |
2nd Connector Series | UHF Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Straight |
Features | Waterproof |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
