R02-U01-10007-10

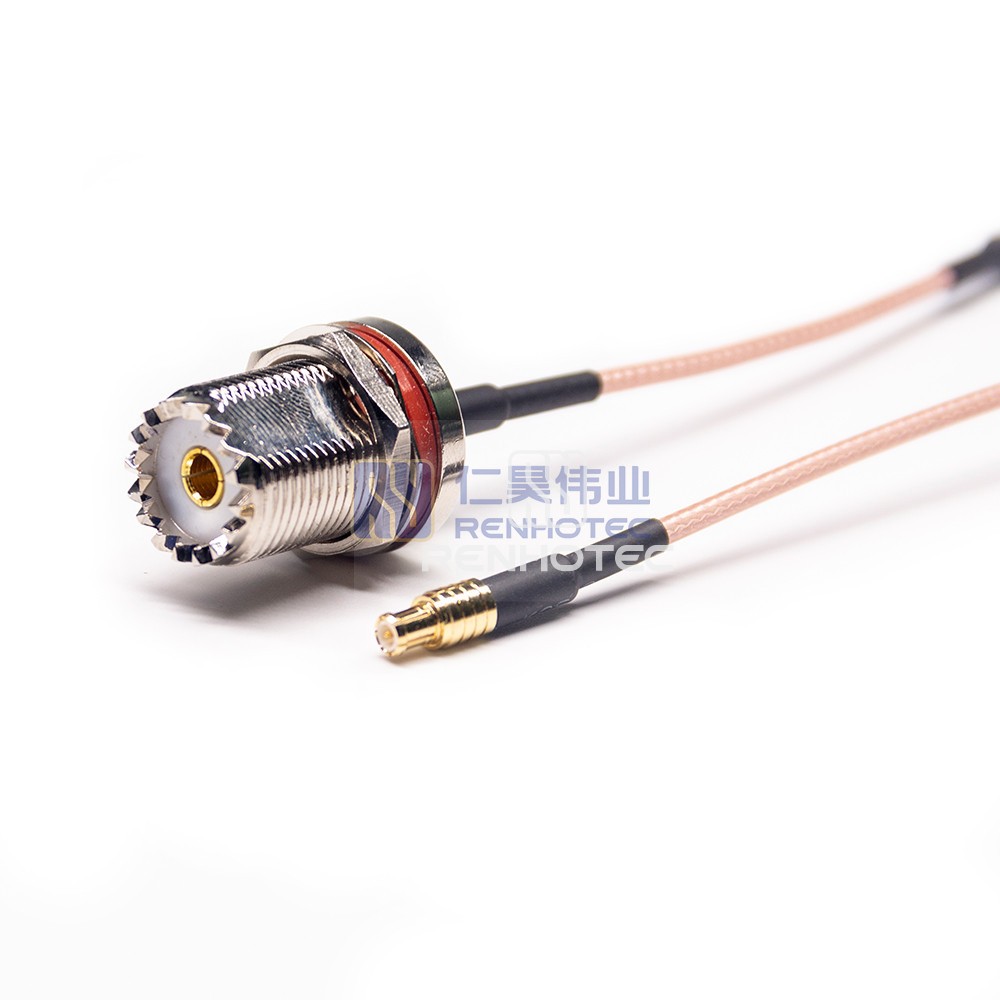

MCX Male to UHF Female Bulkhead Cable Assembly with 50Ohm RG316 Coax- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MCX Male to UHF Female Bulkhead Cable Assembly with 50Ohm RG316 Coax. Perfect for connecting devices with precision and reliability.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | MCX Plug |
1st Contact Type | Male Pin |
1st Connector Orientation | Straight |
2nd Connector Series | UHF Jack |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Straight |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
