R02-U01-10002-20

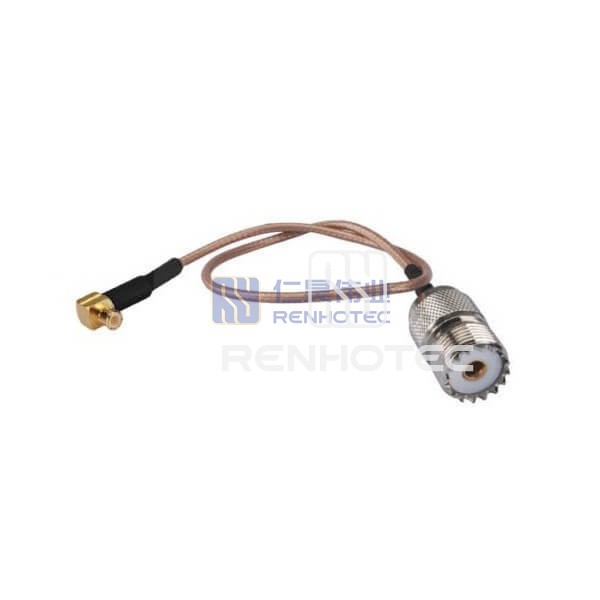

MCX Male Right Angle to UHF Female Cable Assembly with 50Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MCX male right angle to UHF female cable assembly with 50Ohm RG316 coax for reliable signal transmission. Ideal for various applications requiring secure connections.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesUHF Jack
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
