R02-S02-10017-10

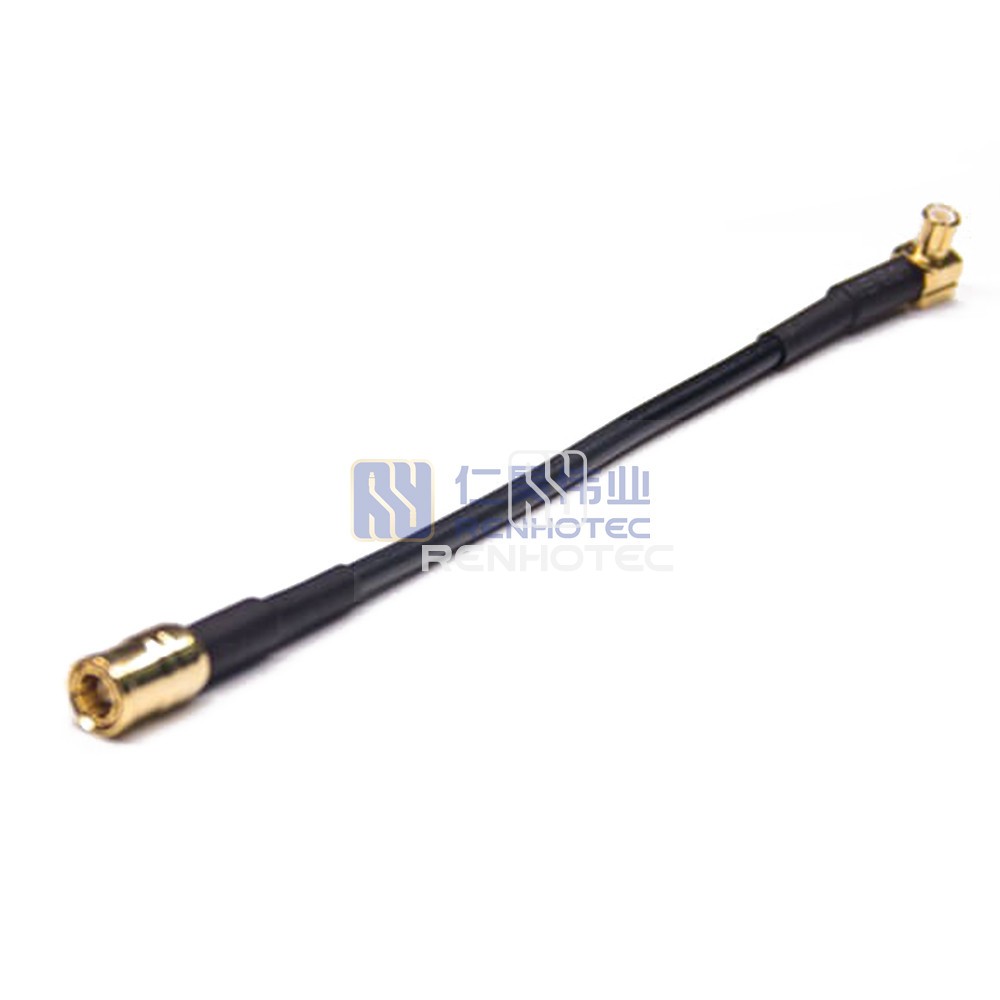

MCX Male Right Angle to SMB Male RF Cable Assembly with 50Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Get reliable RF signal transmission with the MCX Male Right Angle to SMB Male RF Cable Assembly. This 50Ohm RG174 Coax cable ensures seamless connectivity and high-quality performance.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesMCX Plug
1st Contact TypeMale Pin
1st Connector OrientationRight Angle
2nd Connector SeriesSMB Plug
2nd Contact TypeFemale Pin
2nd Connector OrientationStraight
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
