R02-S02-10020-20

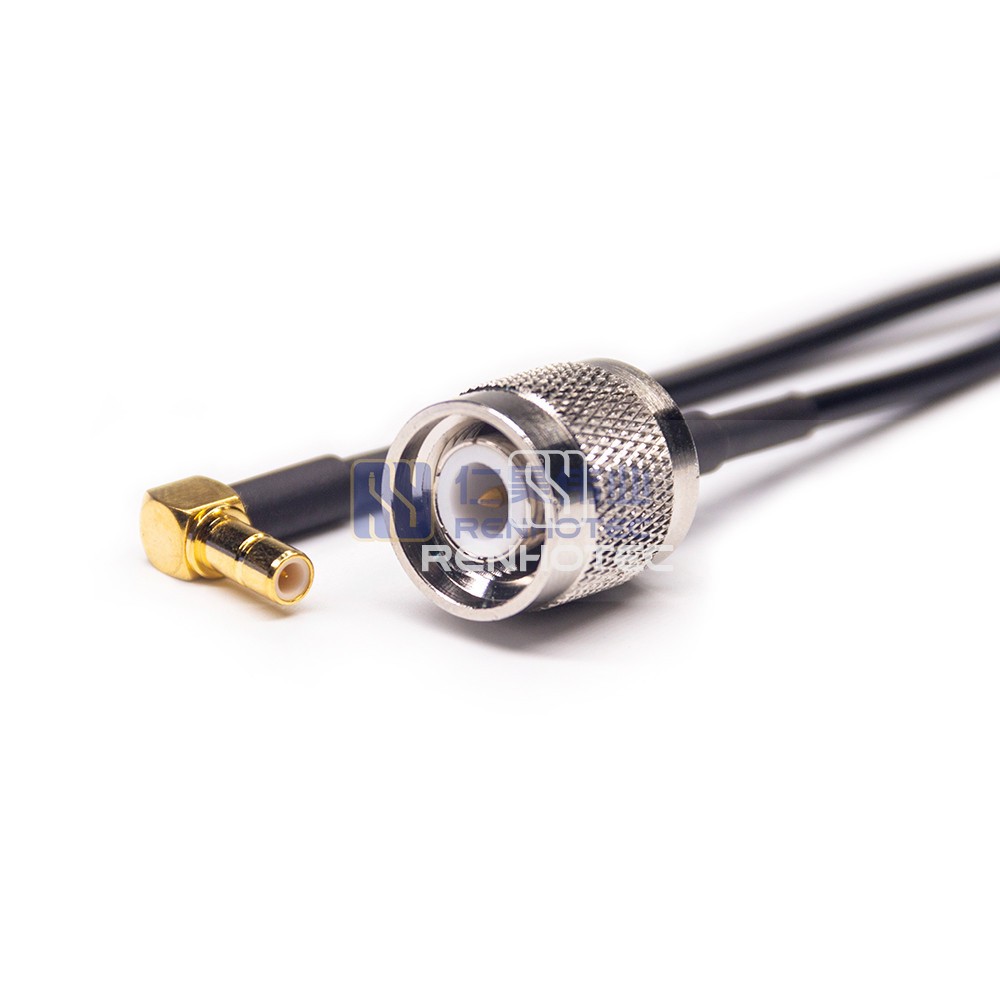

TNC Male to SMB Female Right Angle RF Cable Assembly with 50Ohm RG174 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality TNC Male to SMB Female Right Angle RF Cable Assembly made with 50Ohm RG174 Coax for optimal signal transmission. Ideal for various RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesTNC Plug
1st Contact TypeMale Pin
1st Connector OrientationStraight
2nd Connector SeriesSMB Jack
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
Mechanical
Suitable CableRG174
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
