Products > RF Cable Assembly > BNC Female Bulkhead Front Side Nut to SMB Righ Angle Male Cable Assembly with 50 Ohm RG174 Coaxial Cable
R02-B01-10130-20

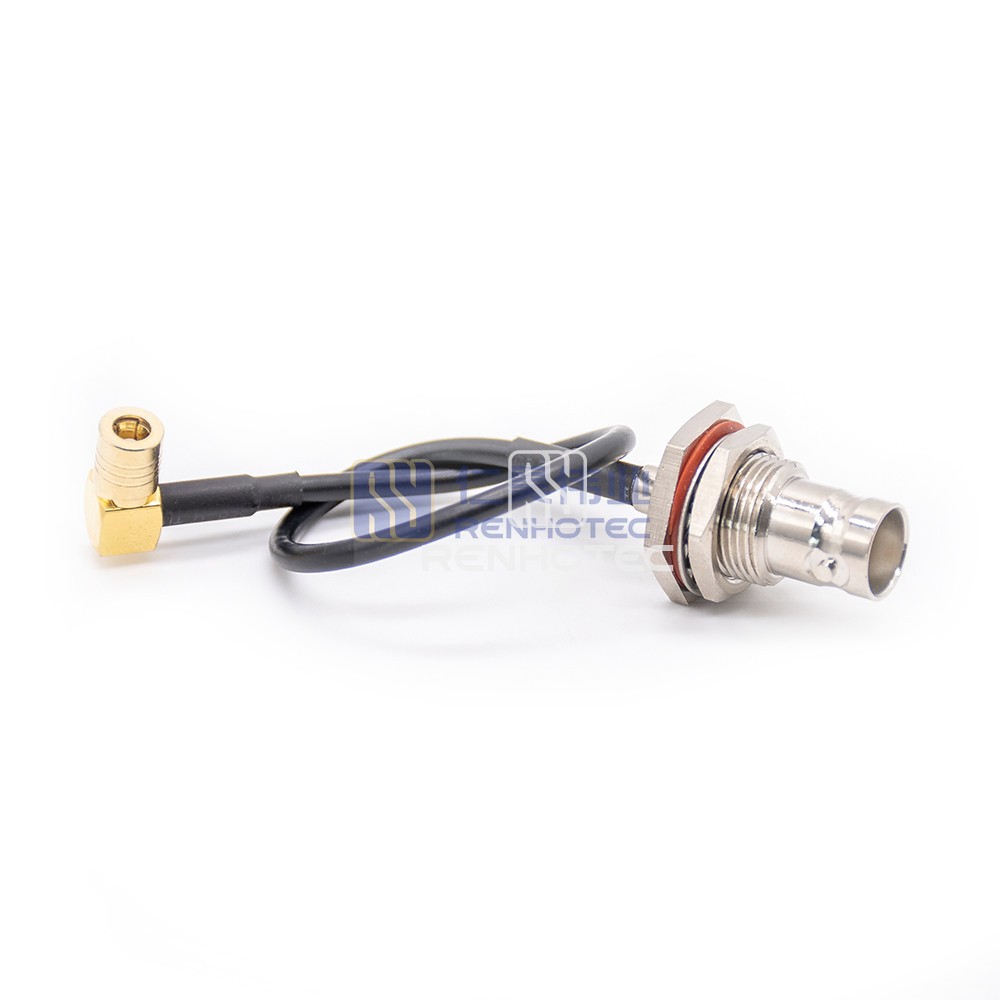

BNC Female Bulkhead Front Side Nut to SMB Righ Angle Male Cable Assembly with 50 Ohm RG174 Coaxial Cable- Overview
- Technical data
- Certification
- Download
Product excerpt
Ensure seamless connectivity with this BNC Female Bulkhead to SMB Right Angle Male Cable Assembly featuring 50 Ohm RG174 Coaxial Cable. Ideal for secure and reliable signal transmission in various electronic applications.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | BNC Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
2nd Connector Series | SMB Plug |
2nd Contact Type | Female Pin |
2nd Connector Orientation | Right Angle |
Features | Waterproof |
Mechanical | |
---|---|
Suitable Cable | RG174 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-4Ghz |
