R02-B01-10055-10

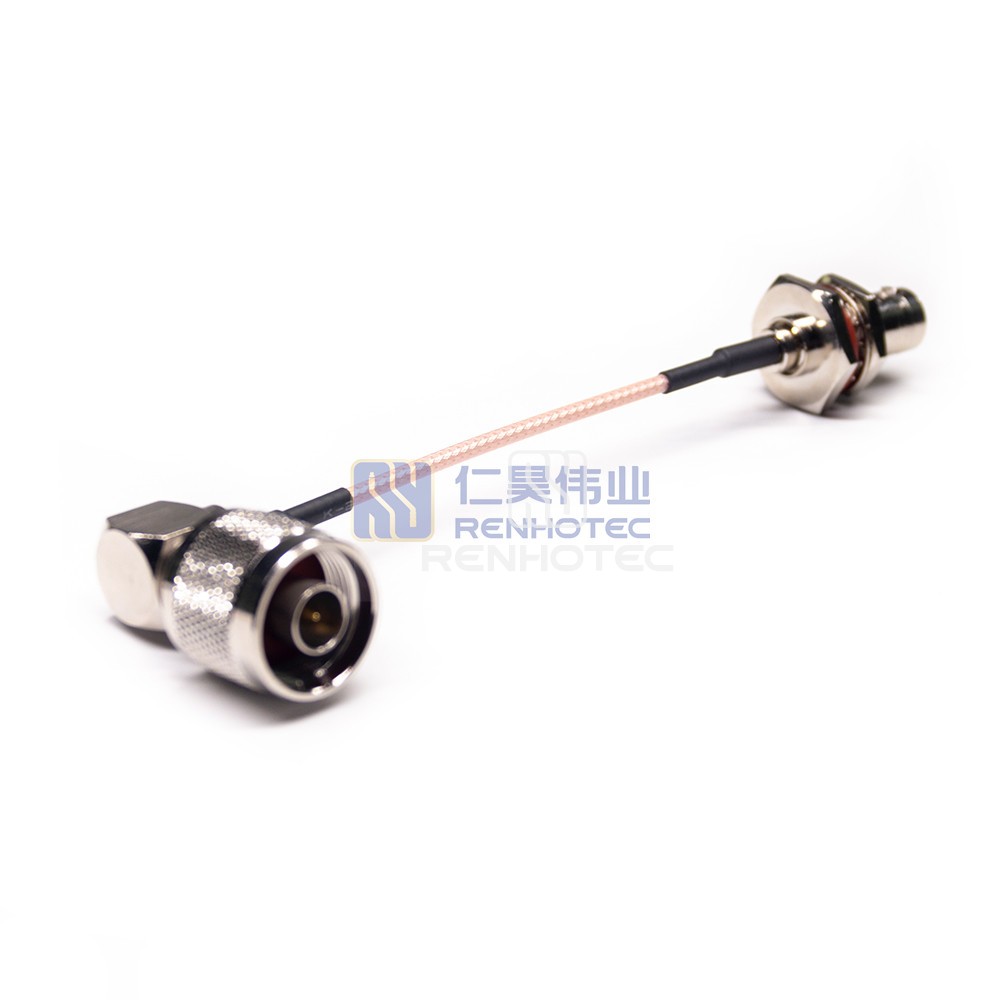

BNC Female Bulkhead to N Male Right Angle RF Cable Assembly with 50 Ohm RG316 Coax
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality BNC Female Bulkhead to N Male Right Angle RF Cable Assembly with 50 Ohm RG316 Coax. Connectors designed for reliable signal transmission in RF applications.
GeneralMechanicalEnvironmentalElectrical
General
Conversion Style
1st Connector SeriesBNC Jack
1st Contact TypeFemale Pin
1st Connector OrientationStraight
2nd Connector SeriesN Plug
2nd Contact TypeMale Pin
2nd Connector OrientationRight Angle
FeaturesWaterproof
Mechanical
Suitable CableRG316
Environmental
Operating Temperature-40°C ~ + 85°C
Electrical
Impedance50 Ohms
Frequency Range0-4Ghz
