Products > RF Cable Assembly > Flange Mount SMA Jack to MMCX Right Angle Plug RF Cable Assemblies RG316 Cable 50ohm
R02-S01-10016-10
Flange Mount SMA Jack to MMCX Right Angle Plug RF Cable Assemblies RG316 Cable 50ohm- Overview
- Technical data
- Certification
- Download
Product excerpt

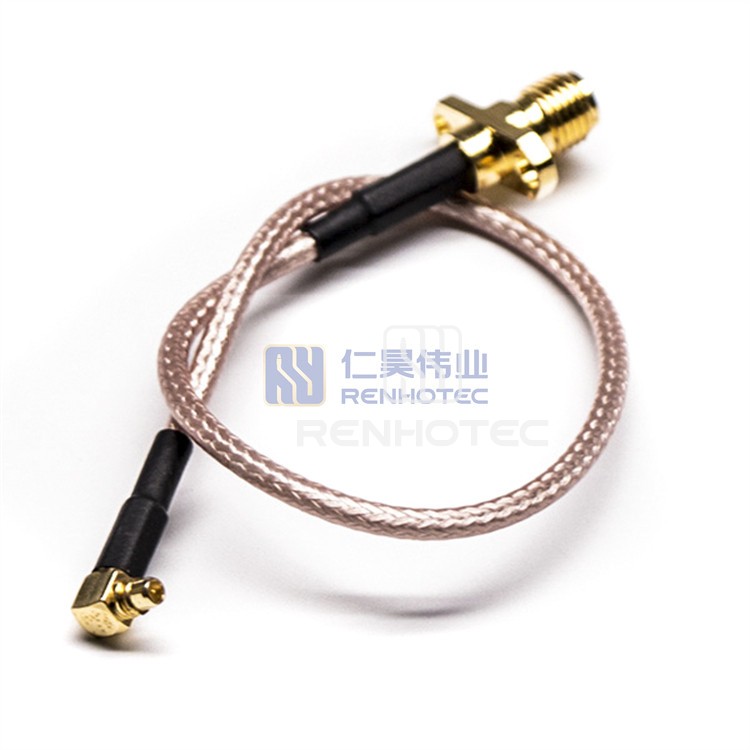

High-quality Flange Mount SMA Jack to MMCX Right Angle Plug RF Cable Assembly with RG316 Cable, designed for optimal performance in 50ohm systems. SKU: R02-S01-10016-10.
GeneralMechanicalEnvironmentalElectrical
General | |
---|---|
Conversion Style | |
1st Connector Series | SMA Jack |
1st Contact Type | Female Pin |
1st Connector Orientation | Straight |
2nd Connector Series | MMCX Plug |
2nd Contact Type | Male Pin |
2nd Connector Orientation | Right Angle |
Mechanical | |
---|---|
Suitable Cable | RG316 |
Environmental | |
---|---|
Operating Temperature | -40°C ~ + 85°C |
Electrical | |
---|---|
Impedance | 50 Ohms |
Frequency Range | 0-6Ghz |
