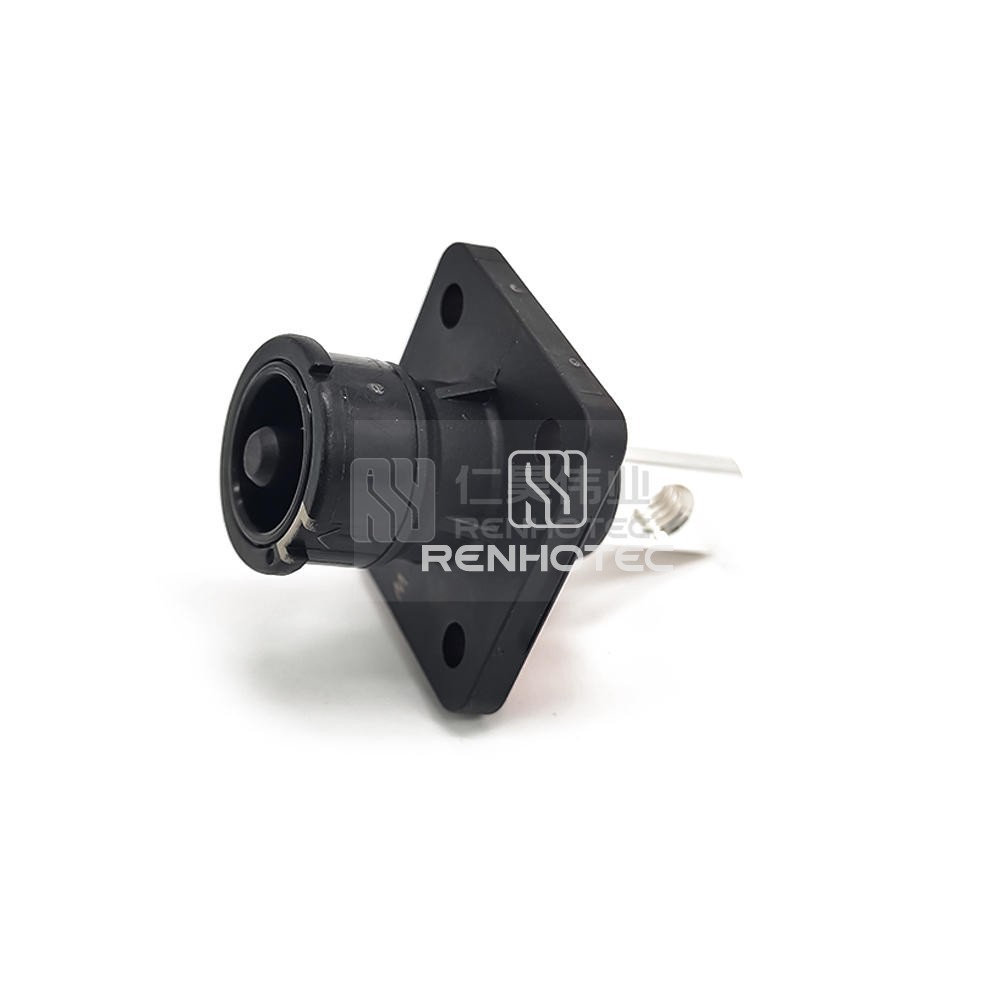

FSPC22160W-M6B2RH
6.0mm Power Entry Connector 125A Receptacle Busbar Teminal(M6 screw) W Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Reliable and durable 6.0mm power entry connector suitable for high current applications. Features a 125A receptable with busbar terminal design and M6 screw for secure connections. Includes a key for added security. Trustworthy solution for industrial power systems.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Number of Positions | 1 |
Contact Size | 6mm |
Contact Termination | Busbar |
Key | W |
Color | Black |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 125A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Material | |
---|---|
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
