Products > Energy Storage Connector > 8.0mm Power Entry Connector 200A Cable Plug Right angled 50mm² Unshielded Cable Black
RHT-P008-C50-BK

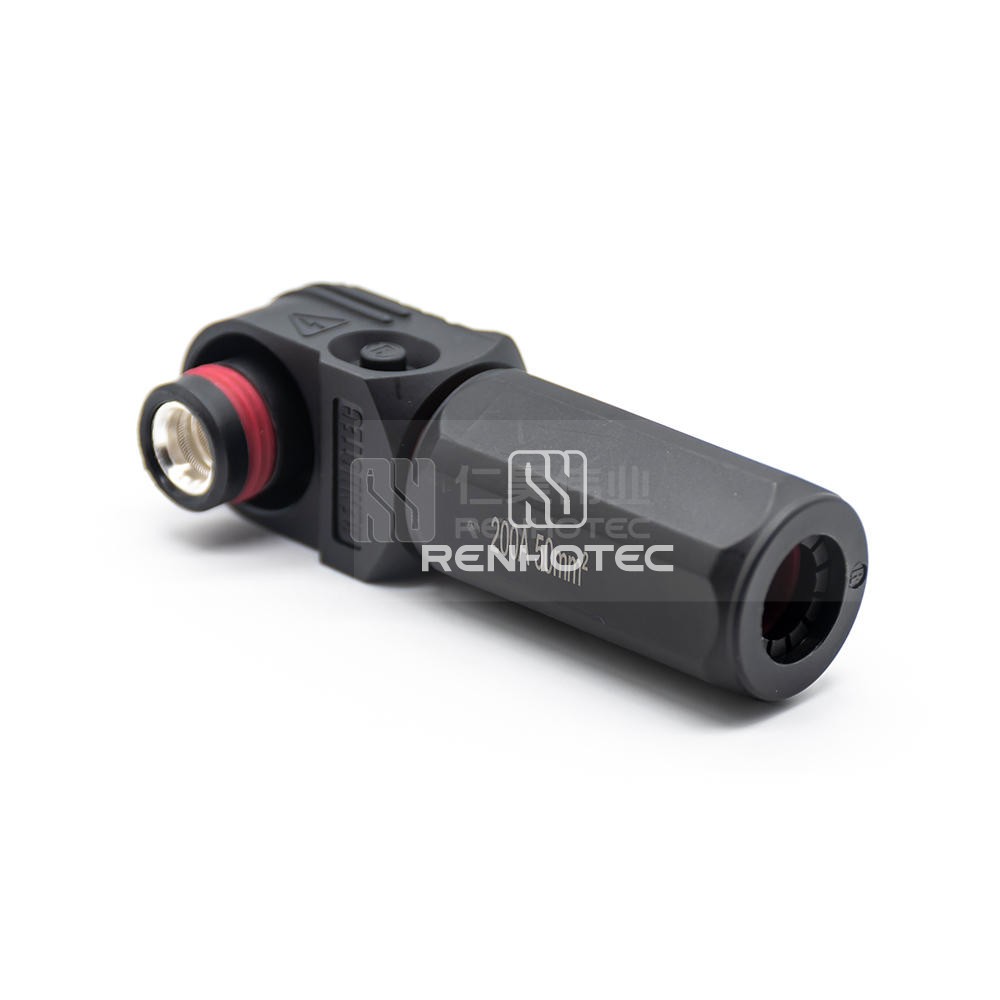

8.0mm Power Entry Connector 200A Cable Plug Right angled 50mm² Unshielded Cable Black- Overview
- Technical data
- Certification
- Download
Product excerpt
Efficiently power your devices with this 8.0mm power entry connector featuring a 200A capacity, right-angled cable plug, and 50mm² unshielded black cable.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 200A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 50mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
