Products > Energy Storage Connector > 8.0mm Power Entry Connector 150A Cable Plug Right Angled 35mm² Unshielded Cable Black
FCC0835-F1BR

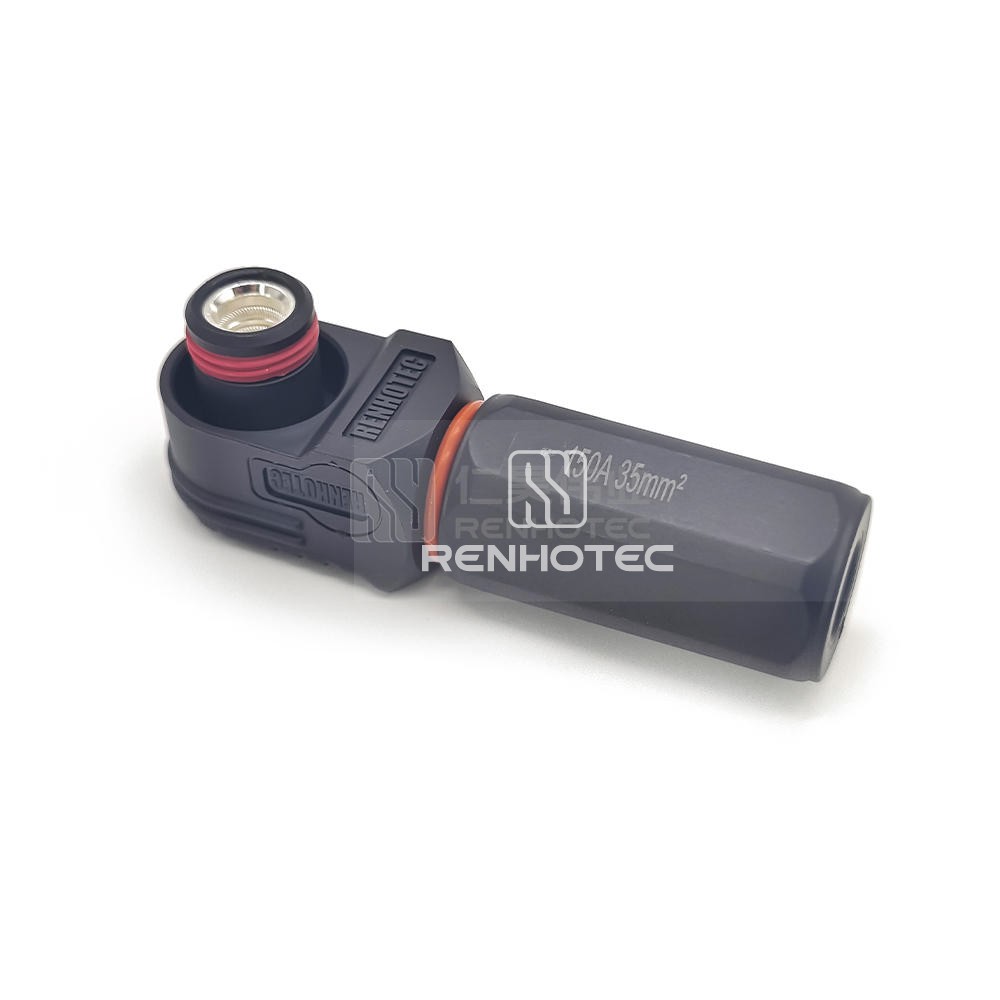

8.0mm Power Entry Connector 150A Cable Plug Right Angled 35mm² Unshielded Cable Black- Overview
- Technical data
- Certification
- Download
Product excerpt
This premium quality power entry connector features a 8.0mm cable plug with 150A capacity, designed with a right-angled 35mm² unshielded black cable for efficient power connectivity. Ideal for various electronics applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Size | 8mm |
| Contact Termination | Crimp |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 150A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Wire Gauge or Range | 35mm² |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
