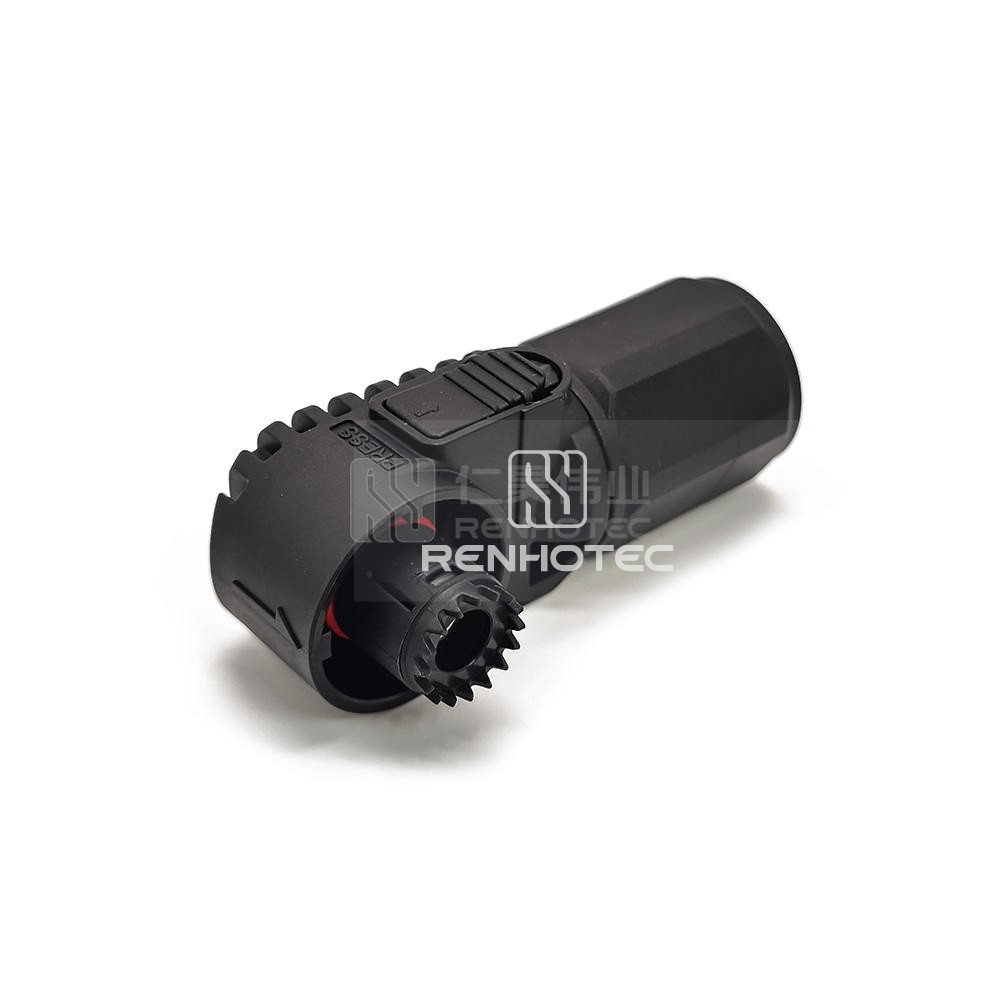

FSPC80160W-25B1RH
Waterproof Battery Storage Connector Right Angle 125A 25mm² Unshielded Cable W Key- Overview
- Technical data
- Certification
- Download
Product excerpt
Keep your battery connections secure and dry with this waterproof connector. Featuring a 125A capacity and 25mm² unshielded cable, this connector also includes a key for added security.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Size | 6mm |
Contact Termination | Crimp |
Key | W |
Color | Black |
Electrical | |
---|---|
Rated Voltage | 600V |
Rated Current | 125A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 25mm² |
Material | |
---|---|
Shell Material | Nylon |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
