Products > Energy Storage Connector > 6.0mm Power Entry Connector 120A Receptacle Busbar Teminal(M6 screw) Red
FCC06BS-M1RL
6.0mm Power Entry Connector 120A Receptacle Busbar Teminal(M6 screw) Red- Overview
- Technical data
- Certification
- Download
Product excerpt

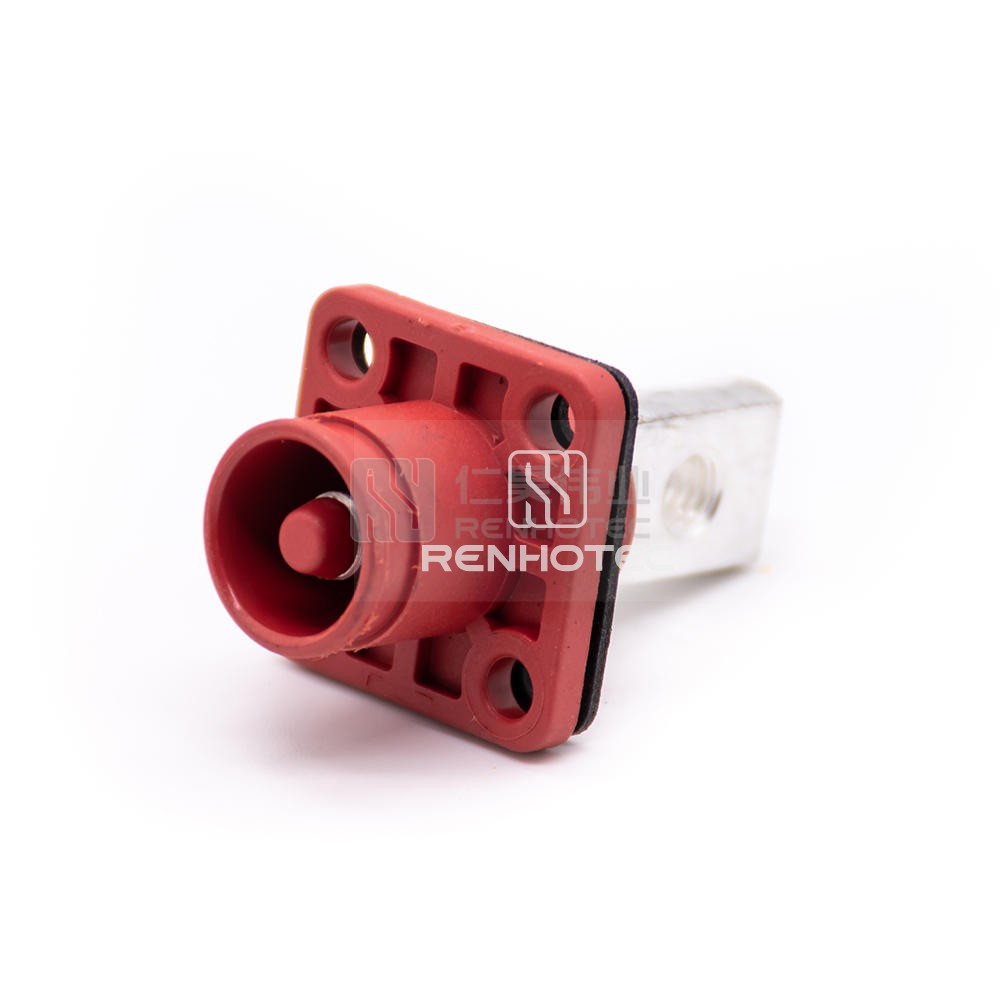

This 6.0mm Power Entry Connector features a robust 120A receptacle with a busbar terminal and M6 screw connection in a vibrant red color. Ensure secure power connections with this high-quality connector for your applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Size | 6mm |
| Contact Termination | Busbar |
| Color | Red |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 120A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
