FSP840101TW-16U0HRH
Waterproof Battery Storage Connector Right Angle 80A Orange 16mm² UnShielded Cable W Key- Overview
- Technical data
- Certification
- Download
Product excerpt

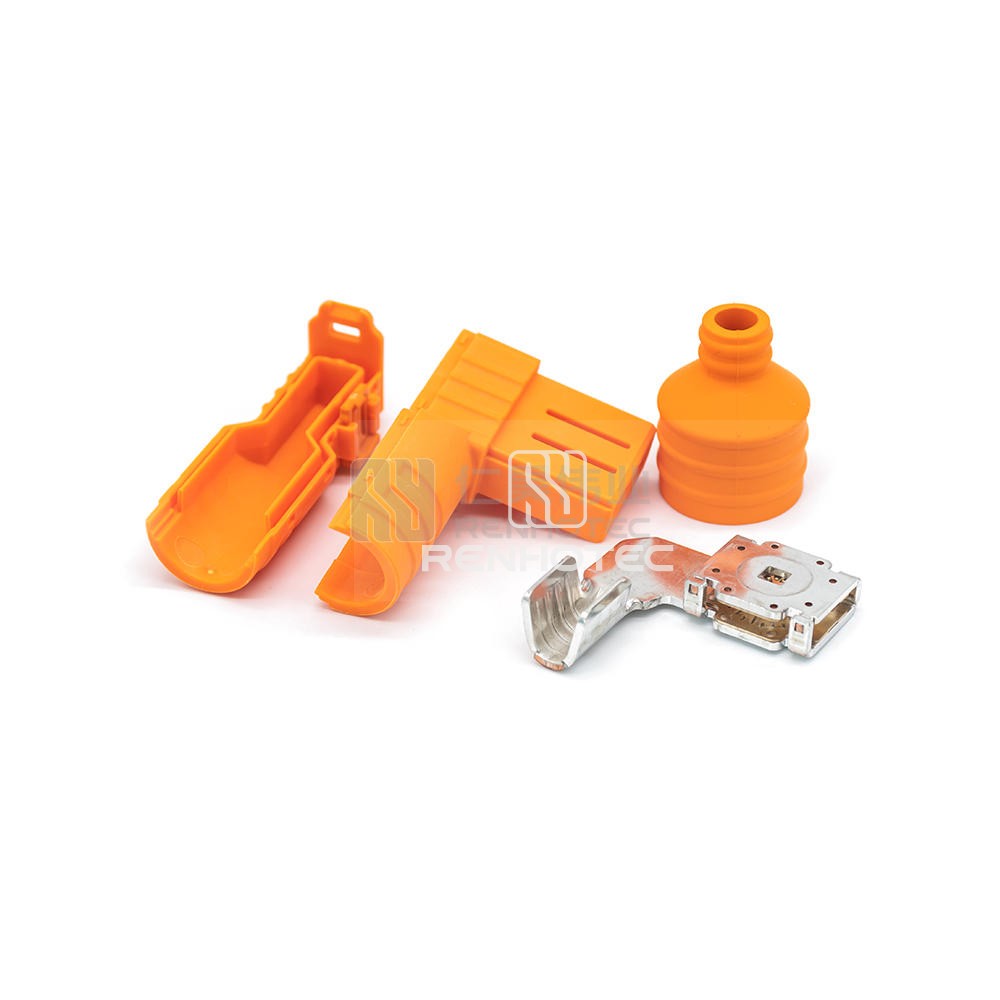

This waterproof battery storage connector features a right angle design with an 80A capacity. The orange 16mm² unshielded cable ensures reliable power connectivity. Comes with a key for added security.
GeneralElectricalMechanicalMaterialEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Number of Positions | 1 |
Contact Termination | Crimp |
Key | W |
Color | Orange |
Electrical | |
---|---|
Rated Voltage | 1000V |
Rated Current | 80A |
Shielding | Unshielded |
Mechanical | |
---|---|
Mounting Type | Cable Type |
Wire Gauge or Range | 16mm² |
Material | |
---|---|
Shell Material | PA66 |
Contact Material | T2 |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP20 |
Operating Temperature | -40°C ~ + 125°C |
Flammability | UL94 V-0 |
