FSP240180CW-UM8B1RH
8.0mm Power Entry Connector 250A Receptacle Busbar Teminal(M8 screw) Black W Key- Overview
- Technical data
- Certification
- Download
Product excerpt

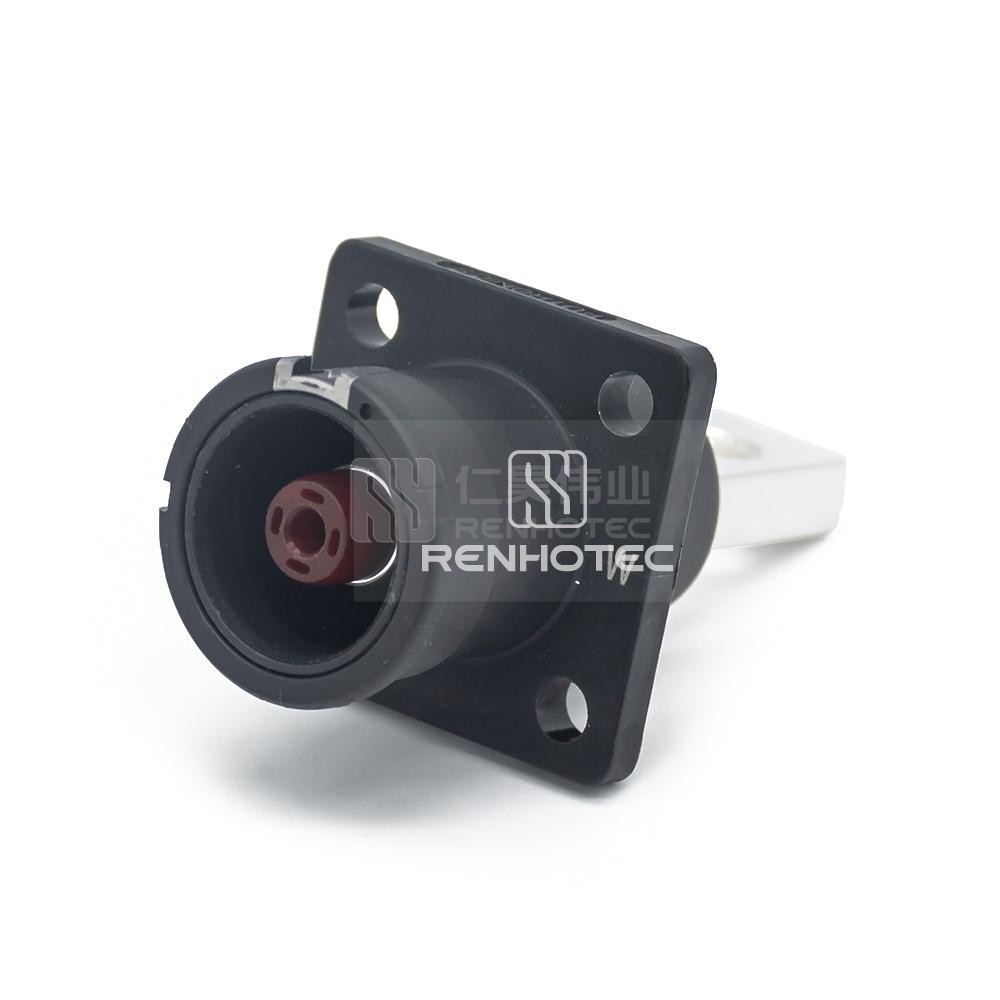

This 8.0mm power entry connector features a 250A receptacle with a busbar terminal, M8 screw, and comes in Black color with a key. Ideal for secure power connections in various applications.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Number of Positions | 1 |
| Contact Termination | Busbar |
| Key | W |
| Color | Black |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 250A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Panel Mount |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
