Products > Energy Storage Connector > 12.0mm Power Entry Connector 250A Cable Plug Right Angled 70mm2 Unshielded Cable Orange
FCC1270-F1YR

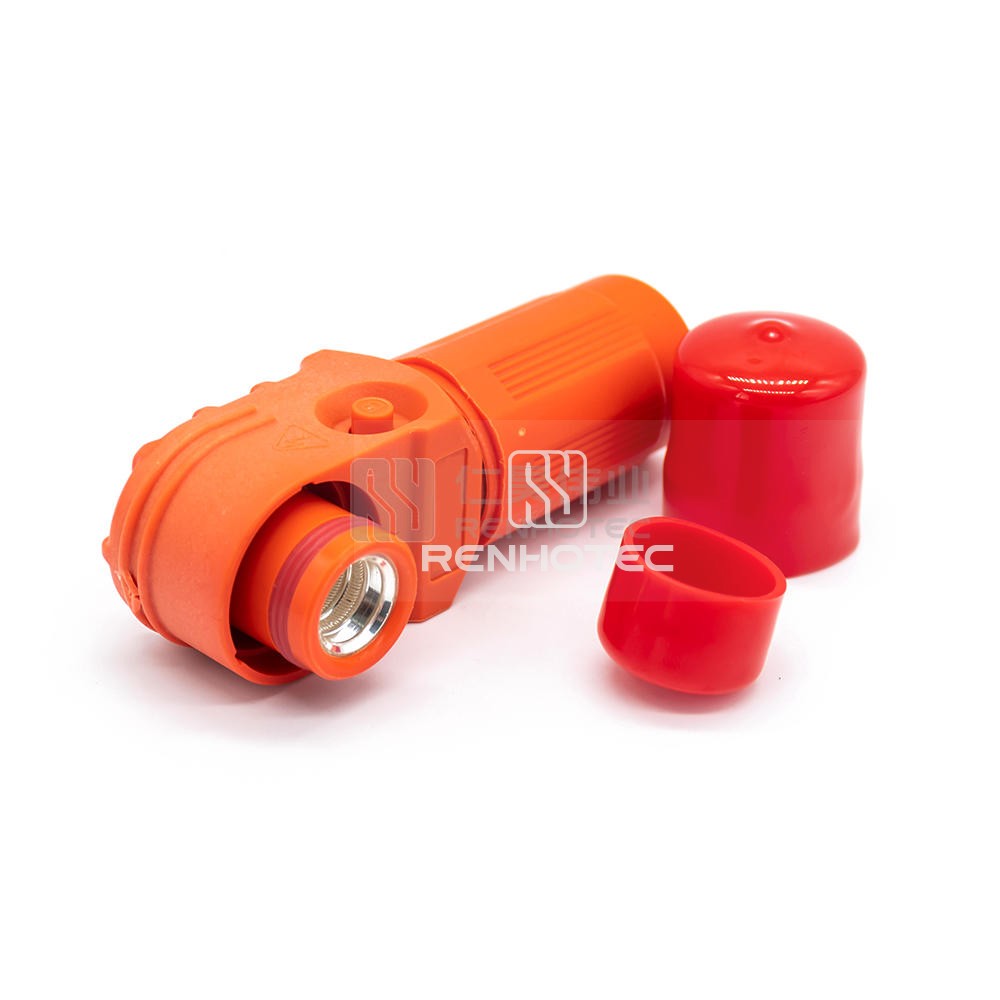

12.0mm Power Entry Connector 250A Cable Plug Right Angled 70mm2 Unshielded Cable Orange- Overview
- Technical data
- Certification
- Download
Product excerpt
Enhance your power connections with this durable 12.0mm Power Entry Connector. Featuring a high capacity of 250A and a right-angled design, it is suitable for 70mm2 unshielded cables. Stand out with the vibrant orange color while ensuring reliable performance.
GeneralElectricalMechanicalMaterialEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Number of Positions | 1 |
| Contact Termination | Crimp |
| Color | Orange |
| Electrical | |
|---|---|
| Rated Voltage | 1000V |
| Rated Current | 250A |
| Shielding | Unshielded |
| Mechanical | |
|---|---|
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Nylon |
| Contact Material | T2 |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP54 |
| Operating Temperature | -40°C ~ + 125°C |
| Flammability | UL94 V-0 |
