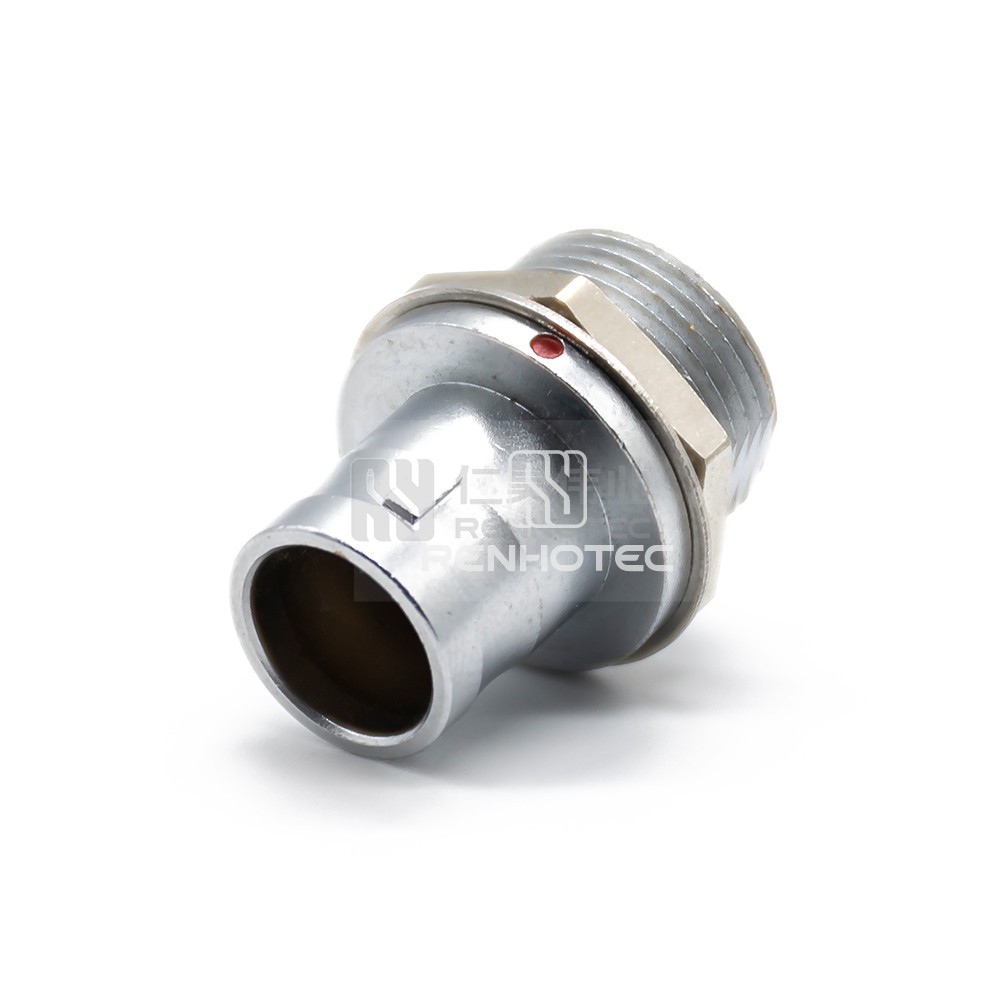

FAG.0B.307.CLA
B Series Push Pull Self-locking Connector Plug Male Straight FAG 0B 307 CLA Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series Push Pull Self-locking Connector Plug Male Straight FAG 0B 307 CLA Back Mount for secure and reliable connections. Ideal for various electronic applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 7 |
Shell | |
---|---|
Shell Size | M9 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 34-28AWG |
Mounting Feature | Bulkhead - Rear Fastened |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 2.5A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
