Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 303 CLL Back Mount
product image

EGG.2B.303.CLL

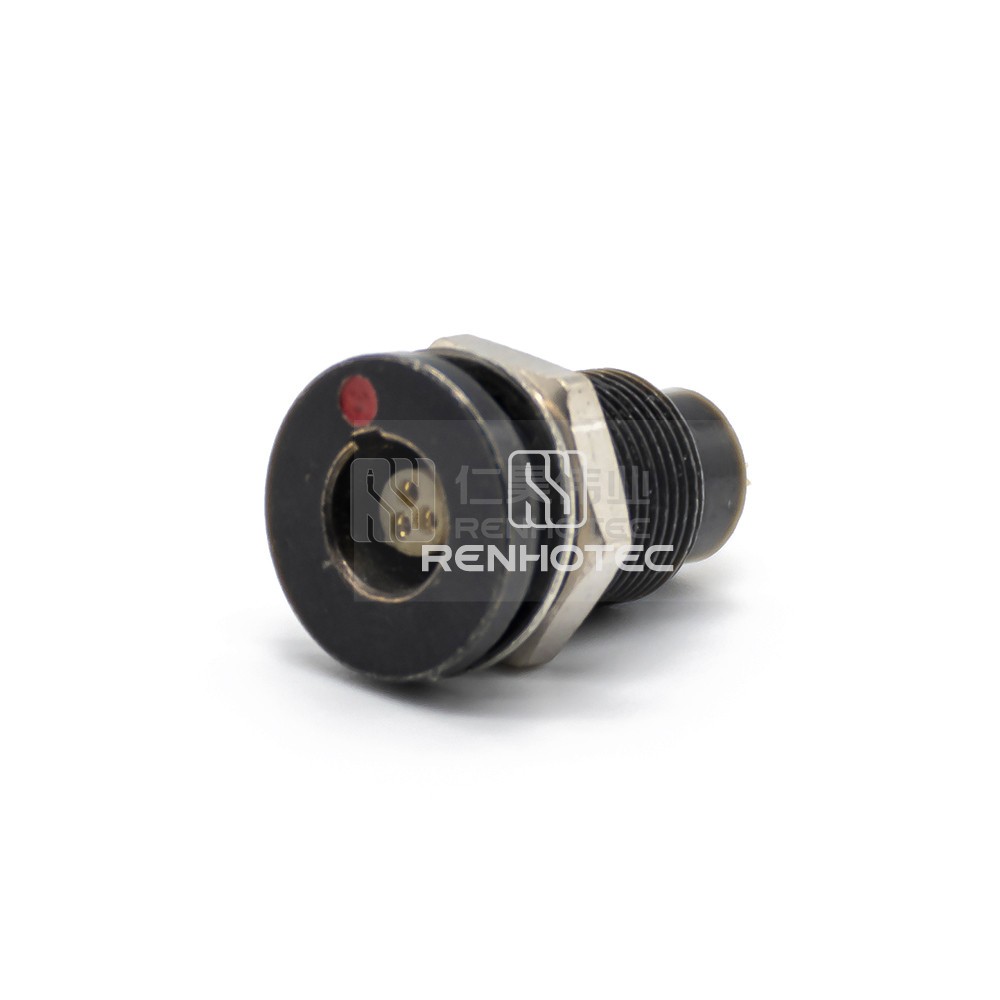

B Series Push Pull Self-locking Connector Socket Female Straight EGG 2B 303 CLL Back Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality B Series push-pull self-locking connector socket female straight EGG 2B 303 CLL back mount for secure and reliable connections. Ideal for a variety of electronic applications.
GeneralMechanicalMaterialElectricalEnvironmental
General
Connector TypeSocket
OrientationStraight
Contact TypeFemale Pin
Number of Positions3
Mechanical
Fastening TypeSnap on
Mounting TypePanel Mount
Wire Gauge or Range24-16AWG
Mounting FeatureBulkhead - Rear Fastened
Material
Shell MaterialCopper Alloy
Contact MaterialCopper Alloy
Contact FinishGold
Insulating MaterialPPS
Electrical
ShieldingShielded
Rated Current17A
Environmental
Operating Temperature-55°C ~ + 150°C

Catelog

RENHOTEC Push-Pull Self-Locking Connetor [EN] Download
