Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 302 CLL Back Mount
EGG.0B.302.CLL

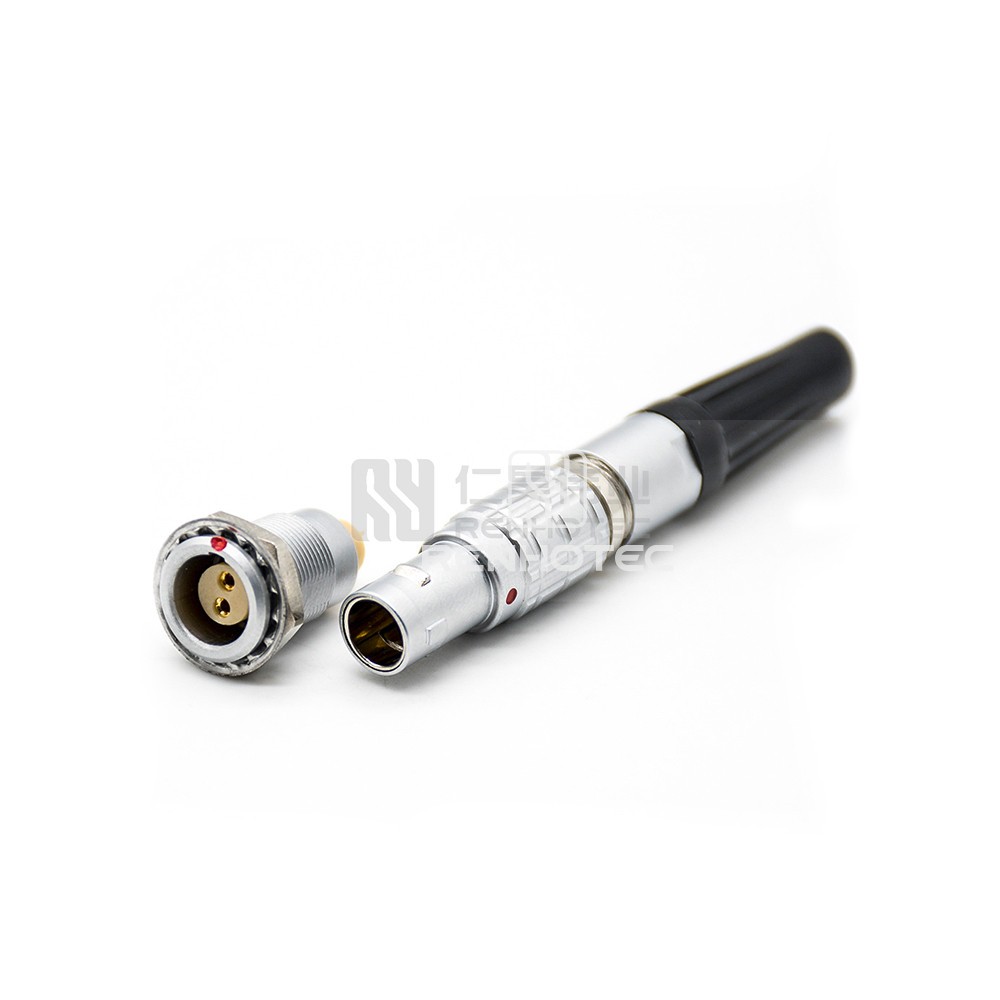

B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 302 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series Push Pull Self-locking Connector Socket Female Straight EGG 0B 302 CLL Back Mount for reliable and secure electrical connections. Designed for back mount installations, this connector offers superior performance and durability.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Socket |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 2 |
| Shell | |
|---|---|
| Shell Size | M9 |
| Mechanical | |
|---|---|
| Fastening Type | Snap on |
| Mounting Type | Panel Mount |
| Wire Gauge or Range | 28-20AWG |
| Mounting Feature | Bulkhead - Rear Fastened |
| Material | |
|---|---|
| Shell Material | Copper Alloy |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Insulating Material | PPS |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 10A |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 150°C |
