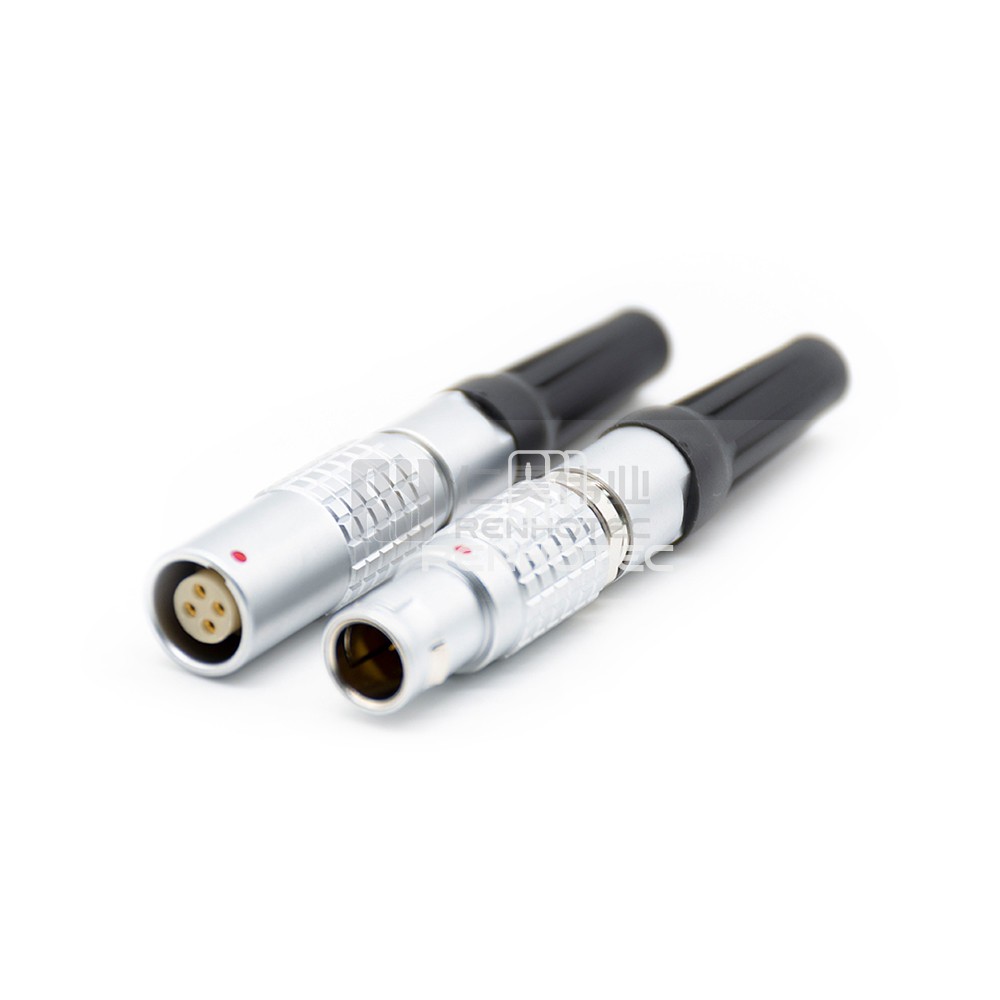

PHG.2B.304.CLLD62Z
B Series Push Pull Self-locking Connector Pulg Female Straight PHG 2B 304 CLLD62Z- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality B Series push-pull self-locking connector plug female straight PHG 2B 304 CLLD62Z. Durable and reliable option for your electronic connections.
GeneralMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 4 |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Cable Type |
Wire Gauge or Range | 28-20AWG |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Gold |
Insulating Material | PPS |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 15A |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
