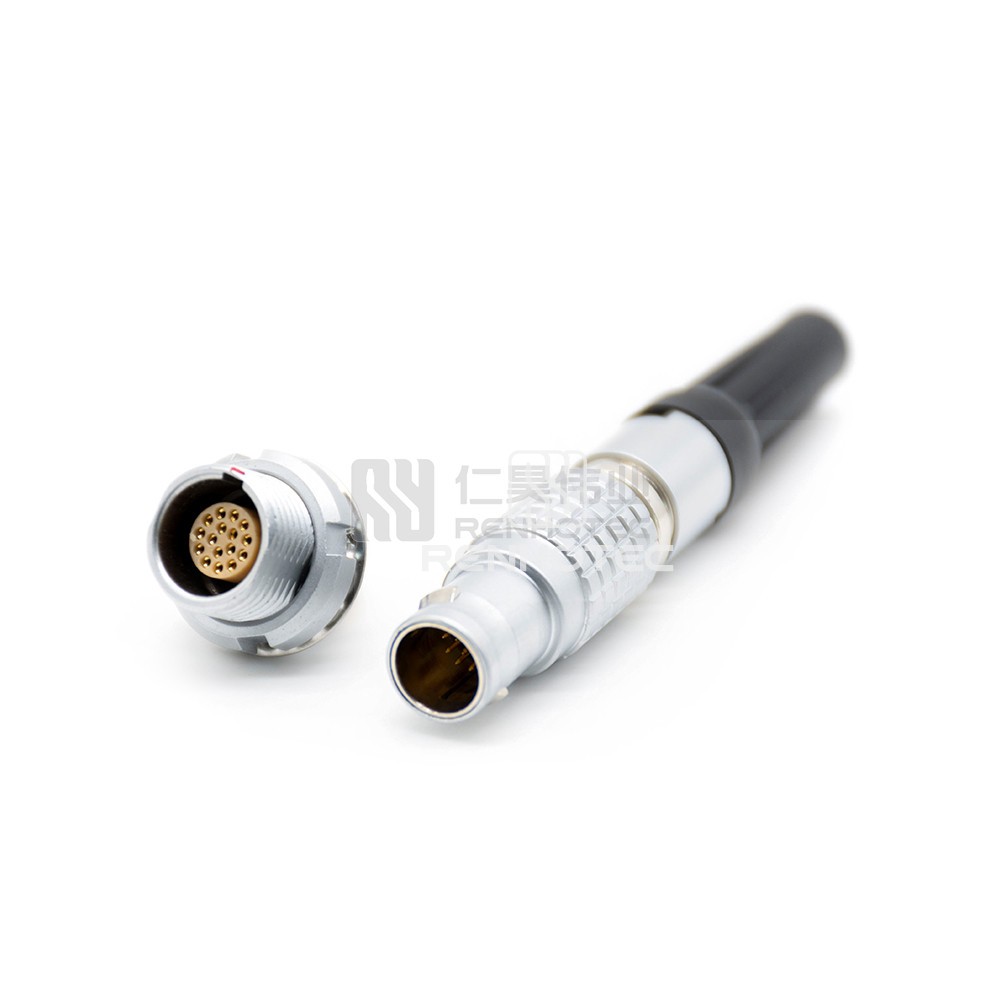

product image

ECG.3B.316.CLL

B Series Push Pull Self-locking Connector Socket Female Straight ECG 3B 316 CLL Back Mount
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality B Series Self-locking Connector Socket, female straight model ECG 3B 316 CLL, designed for back mount applications. Ensure secure and reliable connections with this connector socket.
GeneralShellMechanicalMaterialElectricalEnvironmental
General
Connector TypeSocket
OrientationStraight
Contact TypeFemale Pin
Number of Positions16
Shell
Shell SizeM18
Mechanical
Fastening TypeSnap on
Mounting TypePanel Mount
Wire Gauge or Range30-22AWG
Mounting FeatureBulkhead - Rear Fastened
Material
Shell MaterialCopper Alloy
Contact MaterialCopper Alloy
Contact FinishGold
Insulating MaterialPPS
Electrical
ShieldingShielded
Rated Current8A
Environmental
Operating Temperature-55°C ~ + 150°C
