Products > Push-Pull Connector > B Series Push Pull Self-locking Connector Socket Female Straight ECG 1B 307 CLL Back Mount
ECG.1B.307.CLL

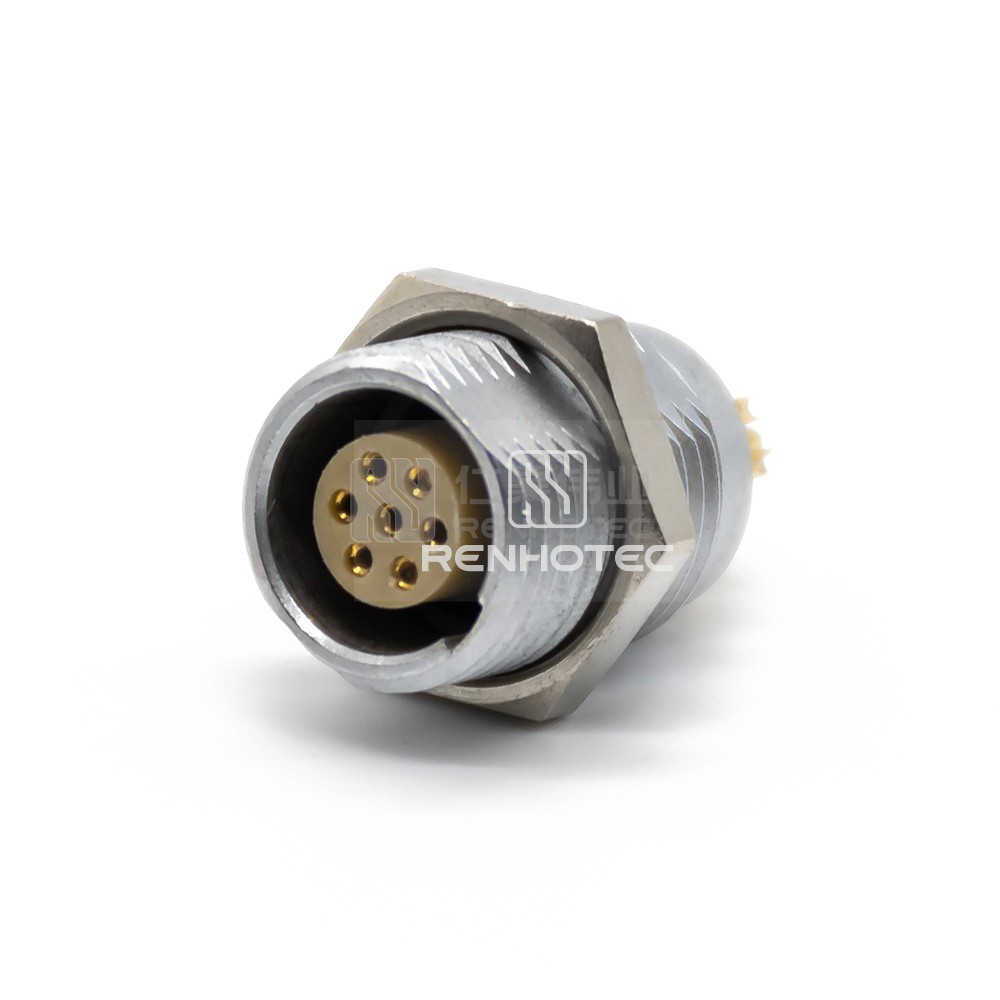

B Series Push Pull Self-locking Connector Socket Female Straight ECG 1B 307 CLL Back Mount- Overview
- Technical data
- Certification
- Download
Product excerpt
Find the high-quality B Series Push Pull Self-locking Connector Socket Female Straight ECG 1B 307 CLL Back Mount. This connector socket ensures secure and reliable connections in various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General | |
---|---|
Connector Type | Socket |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 7 |
Material | |
---|---|
Shell Material | Copper Alloy |
Contact Material | Copper Alloy |
Contact Finish | Nickel |
Insulating Material | PPS |
Mechanical | |
---|---|
Fastening Type | Snap on |
Mounting Type | Panel Mount |
Wire Gauge or Range | 30-22AWG |
Mounting Feature | Bulkhead - Front Fastened |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 150°C |
Shell | |
---|---|
Shell Size | M12 |
Electrical | |
---|---|
Shielding | Shielded |
Rated Current | 7A |
Catelog
RENHOTEC Push-Pull Self-Locking Connetor [EN] | Download |
