RK-16-S-08-R-0

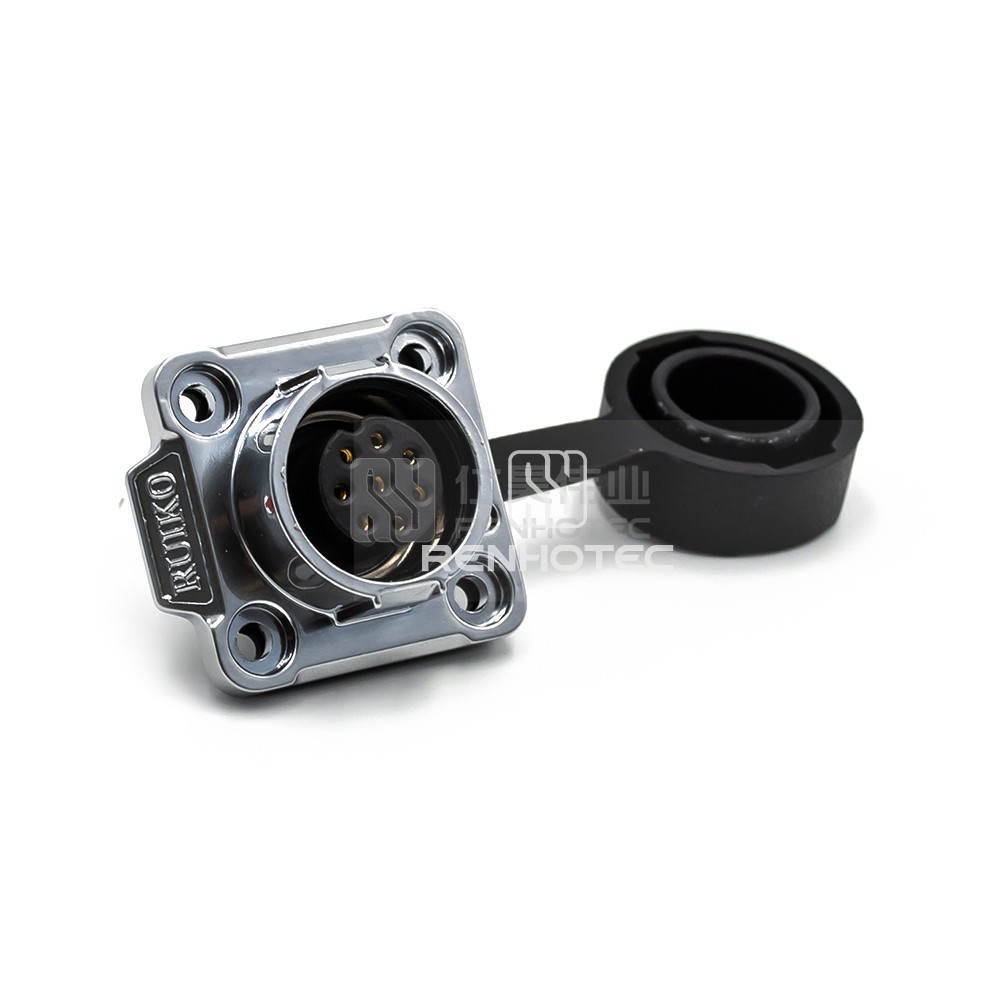

16 Series All-metal Waterproof Connector are Formally Installed with 8 Pin Receptacles

Color:

Silver

Number of Positions:

2345789
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

Ensure seamless connectivity with these all-metal waterproof connectors featuring 8 pin receptacles. Perfect for formal installations.
GeneralMechanicalMaterialElectricalEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions8
Contact TerminationSolder
Mechanical
Fastening TypePush-Pull
Mounting TypePanel Mount
Wire Gauge or Range22-20AWG/0.3mm²-0.5mm²
Material
Shell MaterialZinc Alloy
Shell FinishChrome Plated
Contact MaterialPhosphor Bronze
Contact FinishGold
Insulating MaterialPA66
Electrical
Rated Voltage250V
Rated Current5A
Environmental
Operating Temperature-40°C ~ + 80°C
