MS3116F18-11P/PT06E-18-11P(SR)

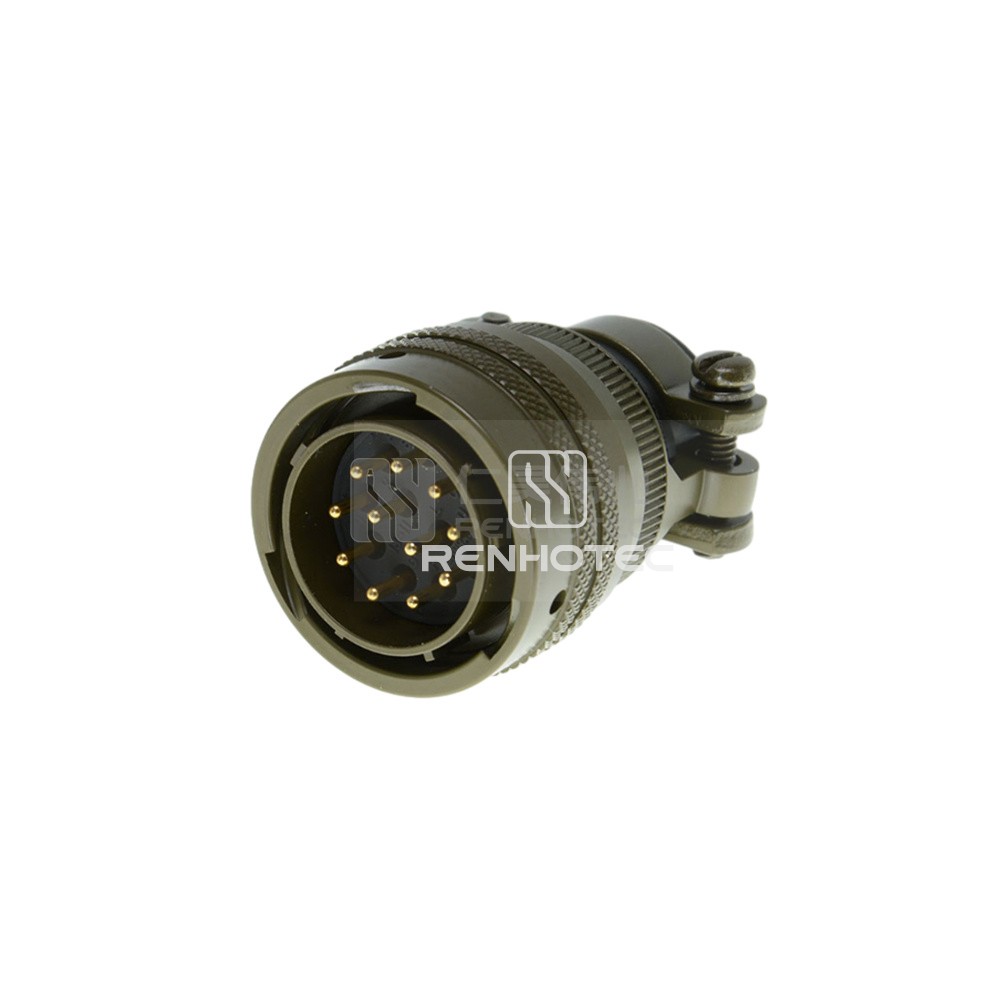

MIL-DTL-26482 Connector MS3116F18-11P Male Straight Plug 11 Pin
Get a Quote
Products >
  • Overview
  • Technical data
  • Certification
  • Download

Product excerpt

High-quality MIL-DTL-26482 Connector MS3116F18-11P Male Straight Plug with 11 Pins. Ensure secure and reliable connections for your electronic devices.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General
Connector TypePlug
OrientationStraight
Contact TypeMale Pin
Number of Positions11
Contact Arrangements18-11
Contact TerminationSolder Cup
ColorOlive Green
Material
Shell MaterialAluminum Alloy
Contact FinishGold
Insulating MaterialSynthetic Rubber
Contact MaterialCopper Alloy
Mechanical
Fastening TypeBayonet
Mounting TypeCable Type
Wire Gauge or RangeAWG20，18，16
Environmental
Operating Temperature-55°C ~ + 125°C
Shell
Shell Size18
Electrical
ShieldingUnshielded
Rated Current22A
Rated Voltage1000V
