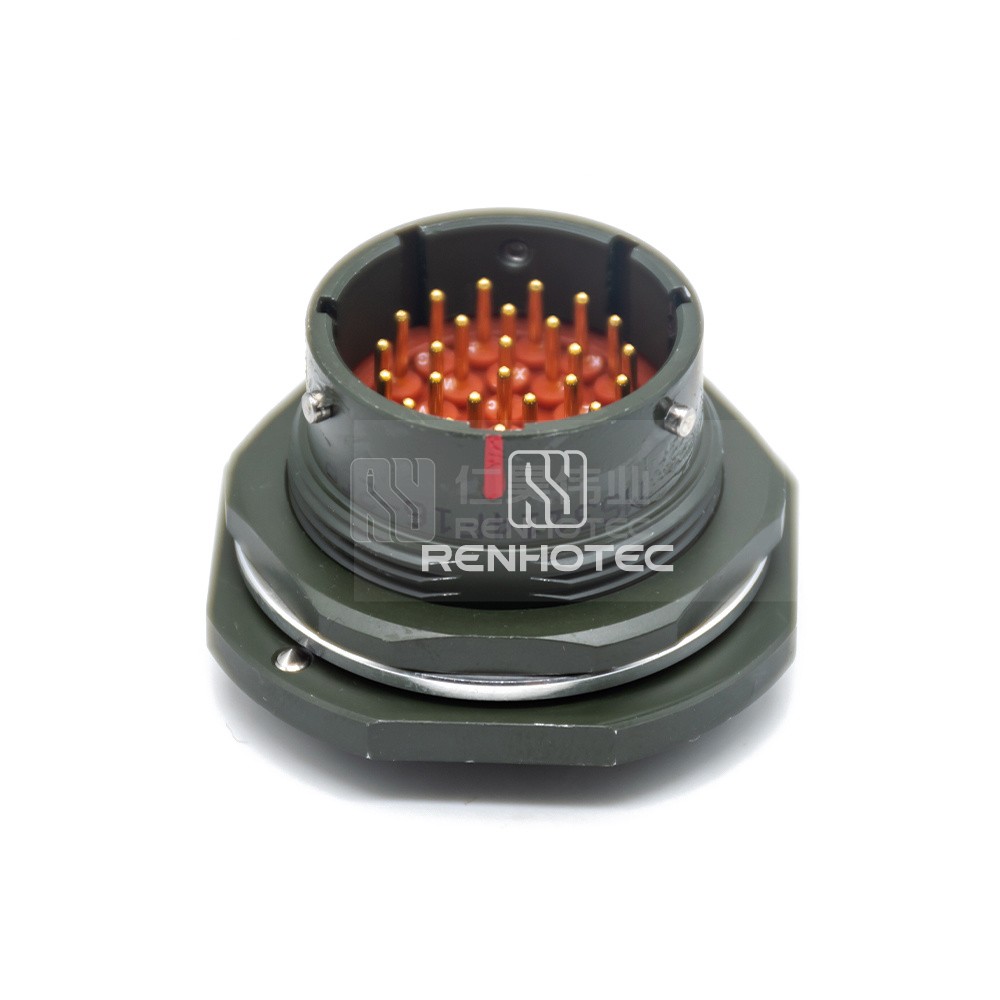

MS3114E16-26P
MIL-DTL-26482 Connector MS3114E16-26P Male Jam Nut Receptacle 26 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-26482 26-pin male jam nut receptacle connector. Reliable and durable design for secure connections in demanding environments.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 26 |
Contact Arrangements | 16-26 |
Contact Termination | Solder Cup |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 16 |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Panel Mount |
Mounting Feature | Bulkhead - Front Fastened |
Wire Gauge or Range | AWG24,22,20 |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Insulating Material | Synthetic Rubber |
Contact Material | Copper Alloy |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 7.5A |
Rated Voltage | 850VDC |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
