MS3116F14-15S/PT06E-14-15S(SR)

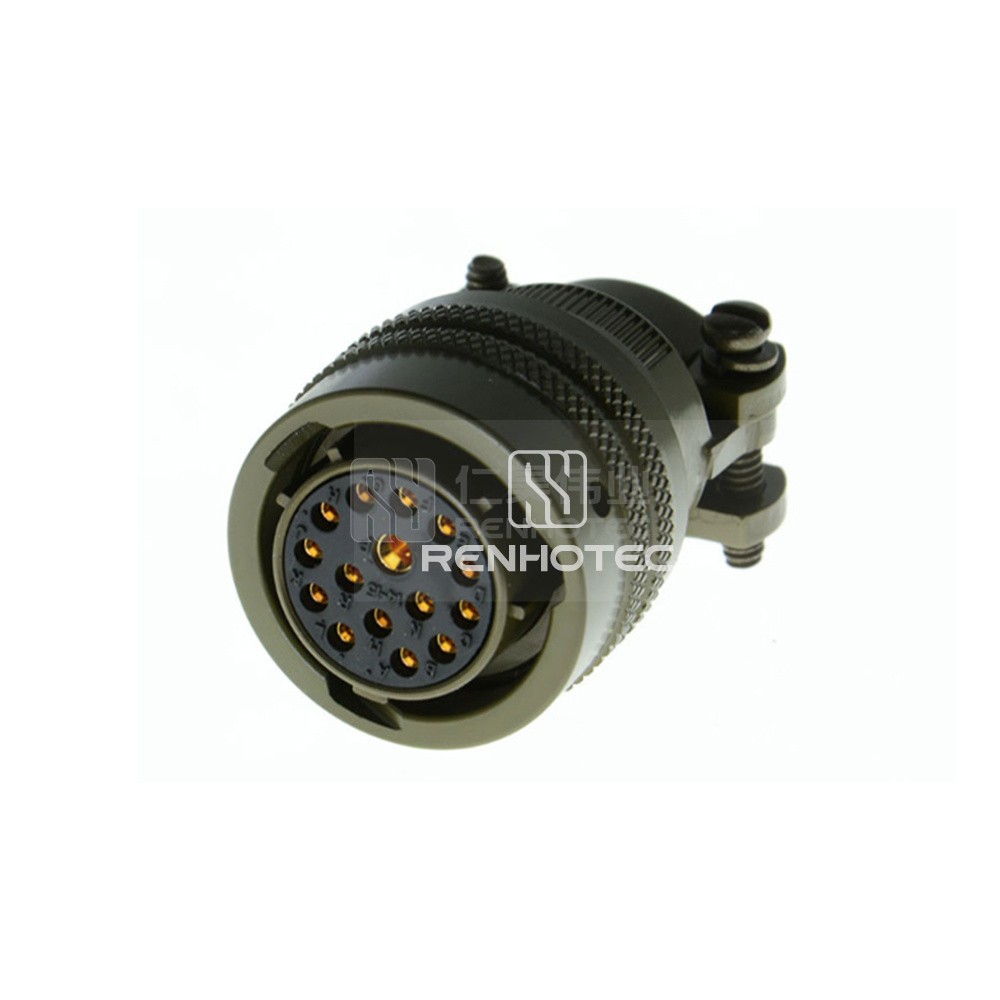

MIL-DTL-26482 Connector MS3116F14-15S Female Straight Plug 15 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
Get the MIL-DTL-26482 connector MS3116F14-15S female straight plug with 15 pins. High-quality and reliable connector for various applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 15 |
| Contact Arrangements | 14-15 |
| Contact Termination | Solder Cup |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 14 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 14*AWG24，22，20/1*AWG20，18，16 |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Contact Finish | Gold |
| Insulating Material | Synthetic Rubber |
| Contact Material | Copper Alloy |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 14*7.5A/1*22A |
| Rated Voltage | 600V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
