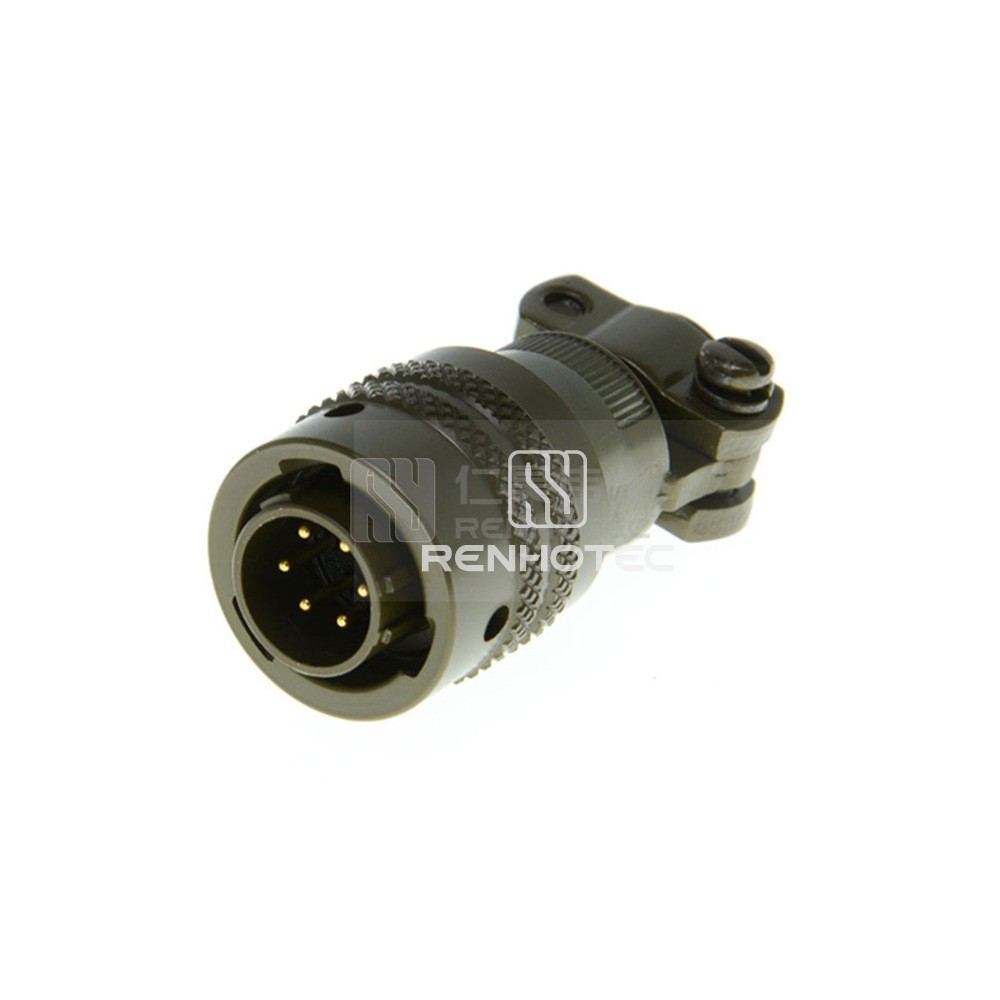

MS3116F10-6P/PT06E-10-6P(SR)
MIL-DTL-26482 Connector MS3116F10-6P Male Straight Plug 6 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-26482 connector featuring an MS3116F10-6P male straight plug with 6 pins. Perfect for reliable and secure electrical connections in various applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Male Pin |
Number of Positions | 6 |
Contact Arrangements | 10-6 |
Contact Termination | Solder Cup |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 10 |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | AWG24,22,20 |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Contact Finish | Gold |
Insulating Material | Synthetic Rubber |
Contact Material | Copper Alloy |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 7.5A |
Rated Voltage | 600V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
