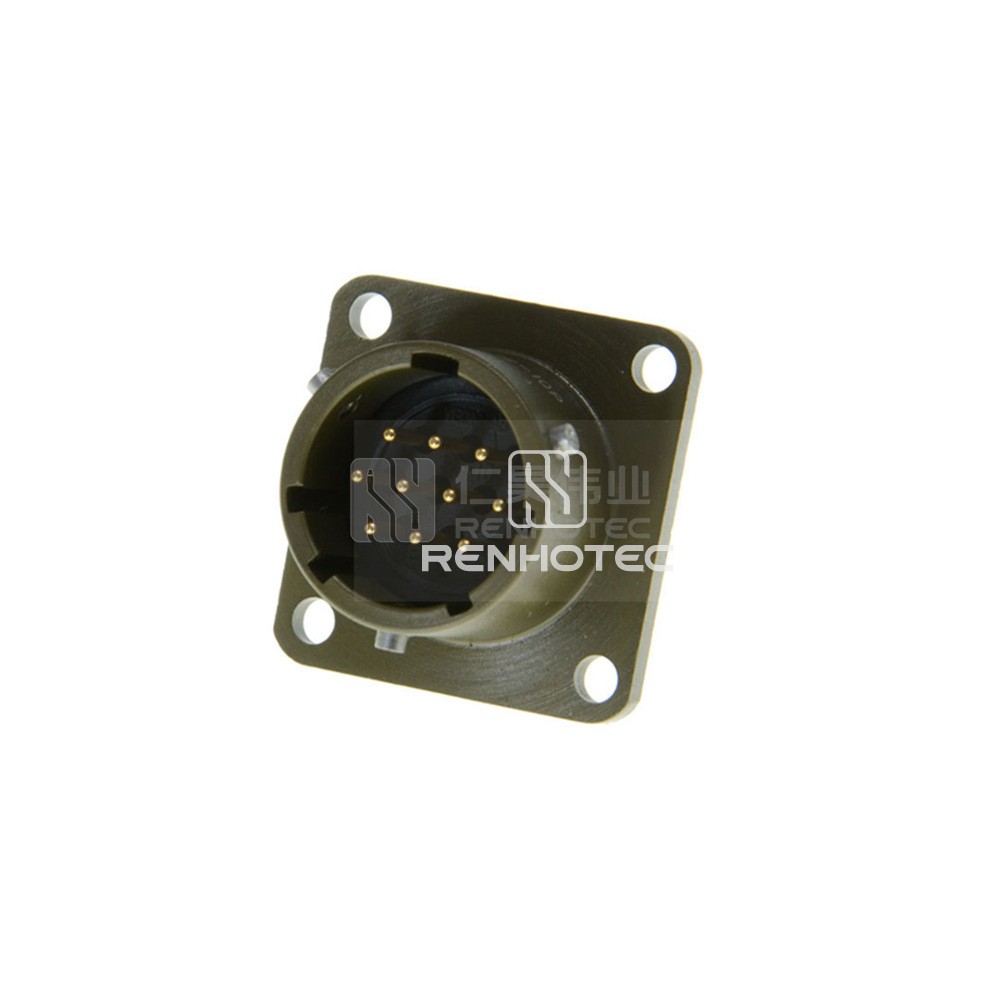

MS3112E12-10P/PT02E-12-10P
MIL-DTL-26482 Connector MS3112E12-10P Male Box Mount Receptacle 10 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-26482 connector with MS3112E12-10P male box mount receptacle featuring 10 pins for reliable and secure electrical connections.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Receptacle |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 10 |
| Contact Arrangements | 12-10 |
| Contact Termination | Solder Cup |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 12 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Panel Mount |
| Mounting Feature | Flange |
| Wire Gauge or Range | AWG24，22，20 |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Contact Finish | Gold |
| Insulating Material | Synthetic Rubber |
| Contact Material | Copper Alloy |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 7.5A |
| Rated Voltage | 600V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
