MS3116F14-5S/PT06E-14-5S(SR)

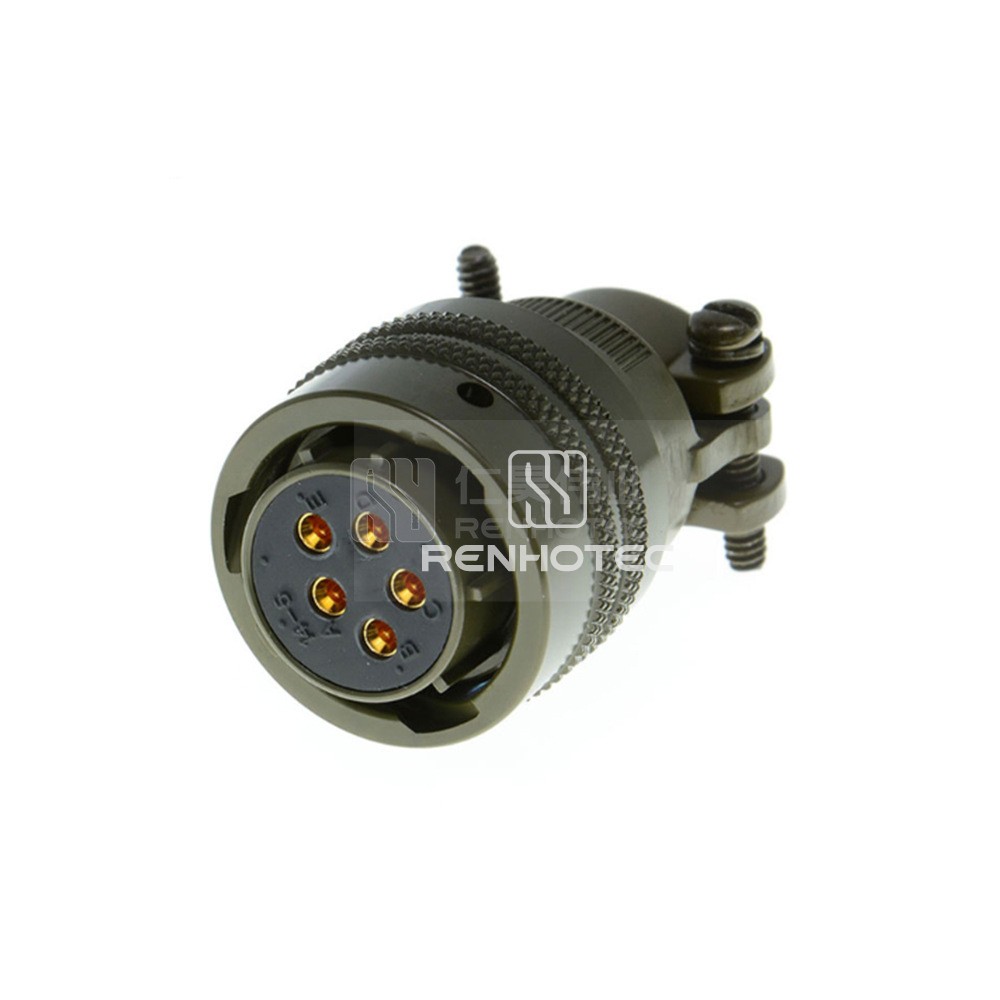

MIL-DTL-26482 Connector MS3116F14-5S Female Straight Plug 5 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
Affordable MIL-DTL-26482 Connector MS3116F14-5S Female Straight Plug 5 Pin. Ideal for various electrical applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
General | |
---|---|
Connector Type | Plug |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 5 |
Contact Arrangements | 14-5 |
Contact Termination | Solder Cup |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 14 |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | AWG20,18,16 |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Contact Finish | Gold |
Insulating Material | Synthetic Rubber |
Contact Material | Copper Alloy |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 22A |
Rated Voltage | 1000V |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
