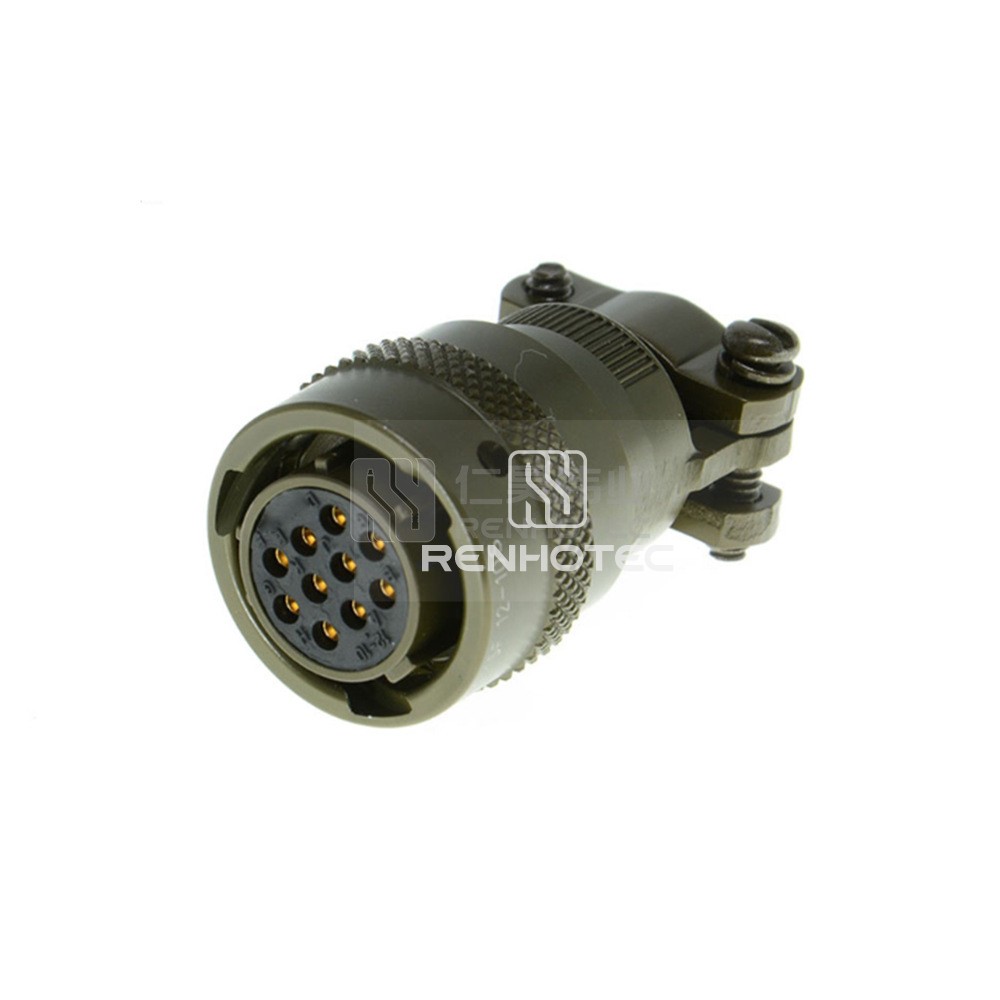

MS3116F12-10S/PT06E-12-10S(SR)
MIL-DTL-26482 Connector MS3116F12-10S Female Straight Plug 10 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
This female straight plug connector is designed as per MIL-DTL-26482 standards and features 10 pins. Ideal for various industrial applications.
GeneralShellMechanicalMaterialElectricalEnvironmental
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 10 |
| Contact Arrangements | 12-10 |
| Contact Termination | Solder Cup |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 12 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Cable Type |
| Wire Gauge or Range | AWG24，22，20 |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Contact Finish | Gold |
| Insulating Material | Synthetic Rubber |
| Contact Material | Copper Alloy |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 7.5A |
| Rated Voltage | 600V |
| Environmental | |
|---|---|
| Operating Temperature | -55°C ~ + 125°C |
