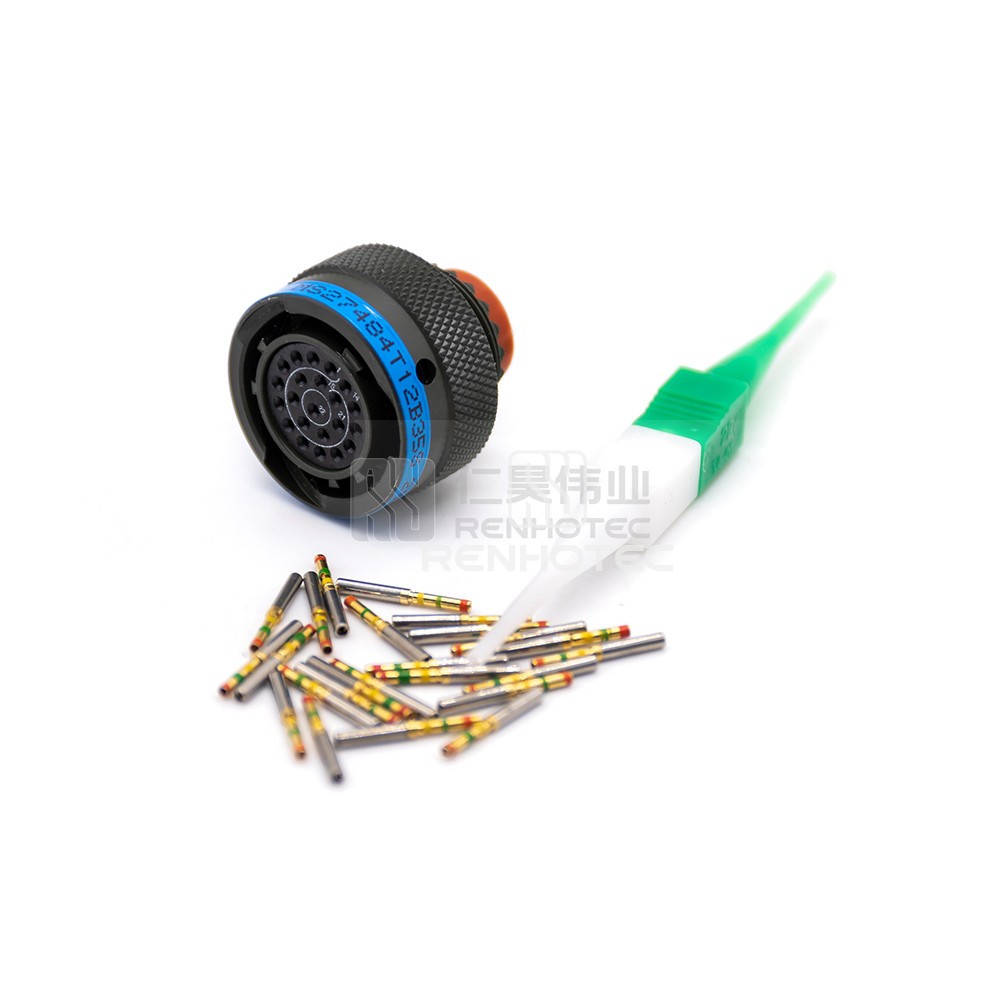

MS27484T12B35S
MIL-DTL-38999 Connector MS27484T12B35S Female RFI Grounding Plug 22 Pin- Overview
- Technical data
- Certification
- Download
Product excerpt
High-quality MIL-DTL-38999 connector featuring MS27484T12B35S Female RFI Grounding Plug with 22 pin configuration.
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 22 |
| Contact Arrangements | 12-35 |
| Contact Termination | Crimp |
| Series | MIL-DTL-38999 Series Ⅱ |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 12 |
| Mechanical | |
|---|---|
| Fastening Type | Bayonet |
| Mounting Type | Cable Type |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Gold |
| Environmental | |
|---|---|
| Ingress Protection | IP67 |
| Operating Temperature | -65°C ~ + 175°C |
| Electrical | |
|---|---|
| Shielding | Shielded |
| Rated Current | 5A |
