CA3102A20-16S

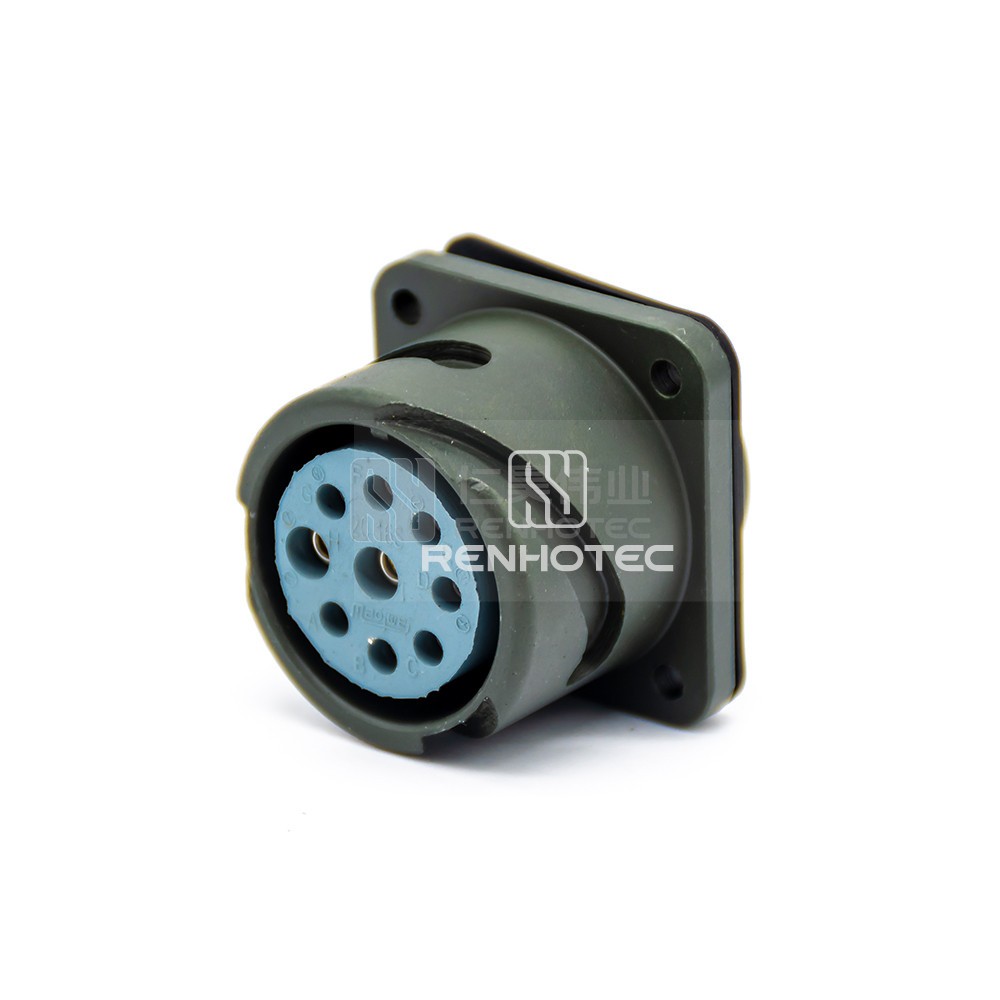

Bayonet Lock CA3102A20-16S 9Pin Female Box Mounting Receptacle Solder Cup
Get a Quote
  • Overview
  • Technical data
  • Certification
  • Download

Product certification

Product excerpt

High-quality Bayonet Lock CA3102A20-16S 9Pin Female Box Mounting Receptacle with Solder Cup contacts. Securely mount and solder your connections with this reliable receptacle.
GeneralShellMechanicalMaterialElectricalEnvironmental
General
Connector TypeReceptacle
OrientationStraight
Contact TypeFemale Pin
Number of Positions9
Contact Arrangements20-16
Contact TerminationSolder Cup
KeyN
ColorOlive Green
Shell
Shell Size20
Mechanical
Fastening TypeBayonet
Mounting TypePanel Mount
Mounting FeatureFlange
Wire Gauge or Range14-12AWG/20-16AWG
Material
Shell MaterialAluminum Alloy
Shell FinishOlive Drab Cadmium
Contact FinishGold
Electrical
ShieldingUnshielded
Rated Current30A/15A
Rated Voltage500V
Environmental
Operating Temperature-55°C ~ + 125°C

Certification

MS5015 Test Report Download

Catelog

RENHOTEC Mil-C-5015 Catalog [EN] Download
