CA3108A32-5S

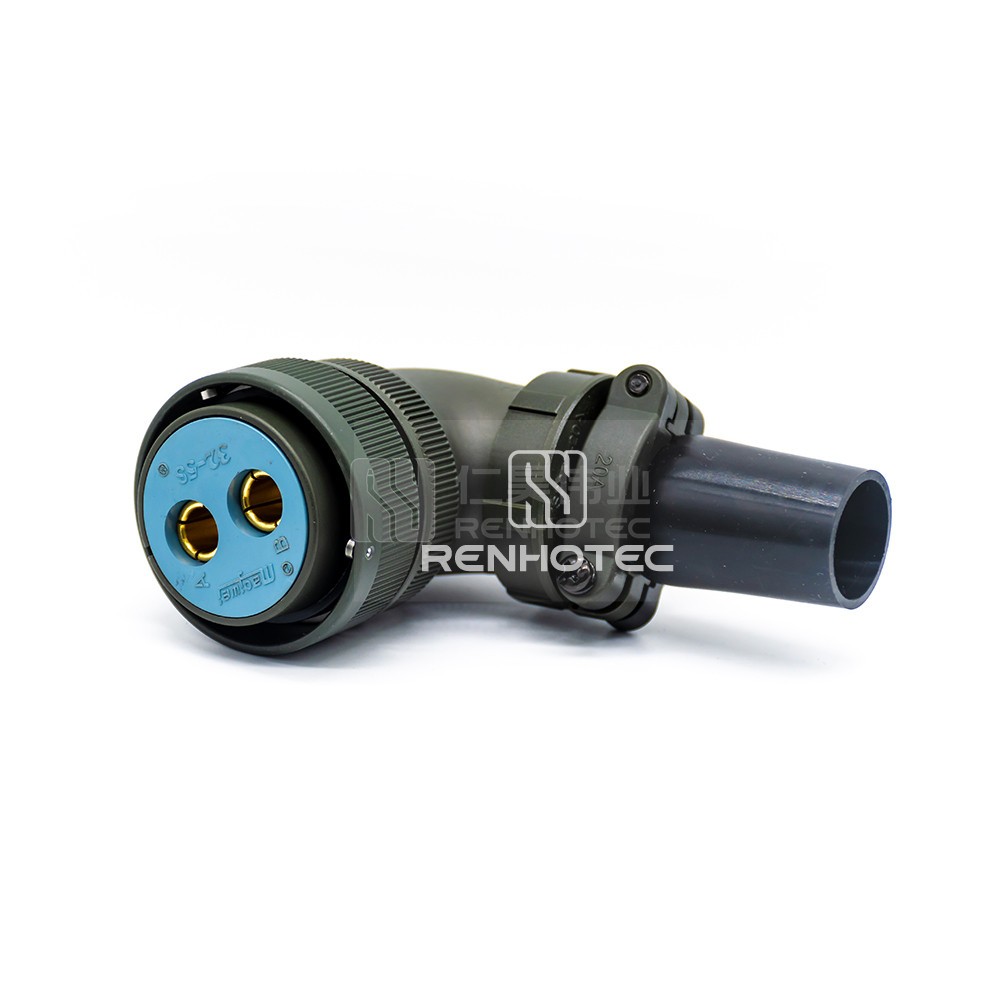

Bayonet Lock CA3108A32-5S 2Pin Female Right Angle Plug Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
Buy the Bayonet Lock CA3108A32-5S 2Pin Female Right Angle Plug Solder Cup for secure and reliable electrical connections. This plug features a solder cup design and a right angle orientation, making it ideal for various applications.
GeneralMaterialMechanicalEnvironmentalShellElectrical
General | |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Female Pin |
Number of Positions | 2 |
Contact Arrangements | 32-5 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Gold |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Cable Type |
Wire Gauge or Range | 2-0AWG |
Environmental | |
---|---|
Operating Temperature | -55°C ~ + 125°C |
Shell | |
---|---|
Shell Size | 32 |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 120A |
Rated Voltage | 500V |
Certification
MS5015 Test Report | Download |
