MS3106A20-18S

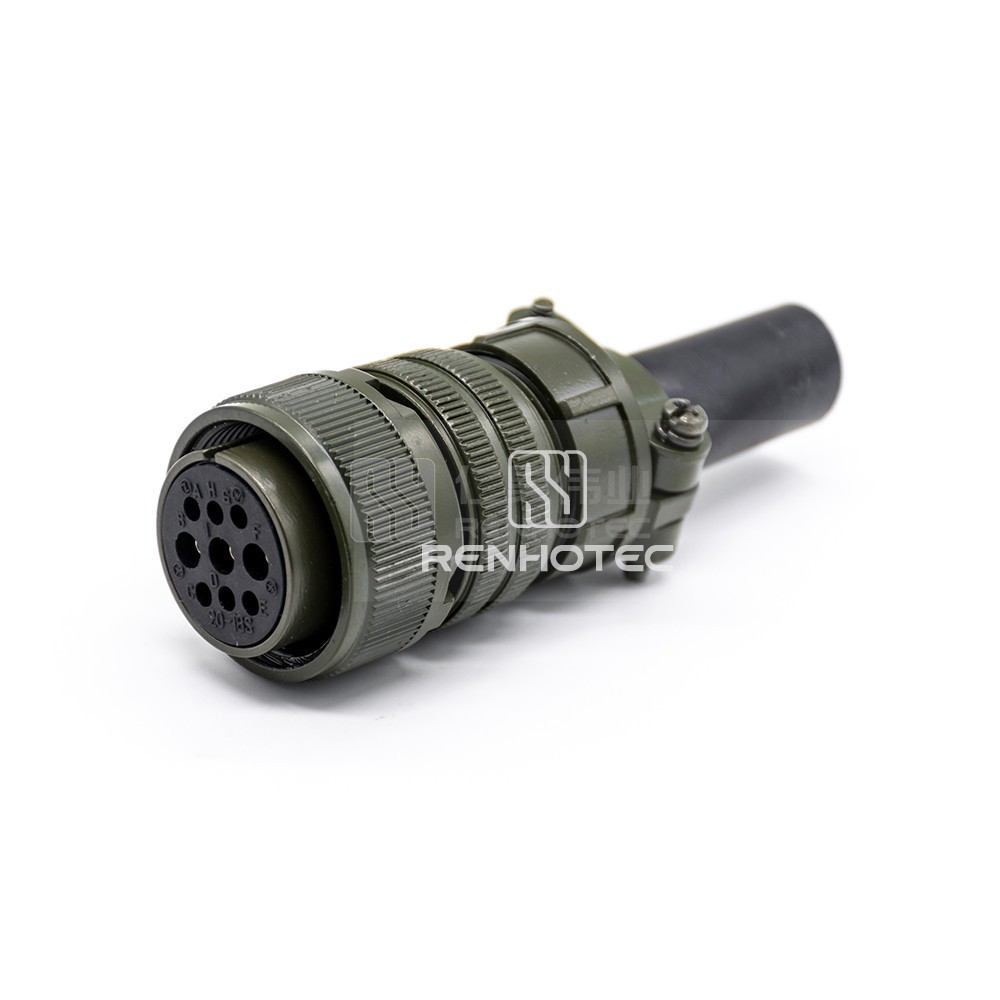

Threaded MS3106A20-18S 9Pin Female Straight Plug Solder Cup- Overview
- Technical data
- Certification
- Download
GeneralShellMechanicalMaterialEnvironmentalElectrical
| General | |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Female Pin |
| Number of Positions | 9 |
| Contact Arrangements | 20-18 |
| Contact Termination | Solder Cup |
| Key | N |
| Color | Olive Green |
| Shell | |
|---|---|
| Shell Size | 20 |
| Mechanical | |
|---|---|
| Fastening Type | Threaded |
| Mounting Type | Cable Type |
| Wire Gauge or Range | 20-12AWG |
| Material | |
|---|---|
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Contact Finish | Silver |
| Environmental | |
|---|---|
| Ingress Protection | IP55 |
| Operating Temperature | -55°C ~ + 125°C |
| Electrical | |
|---|---|
| Shielding | Unshielded |
| Rated Current | 30A/15A |
| Rated Voltage | 500V |
Certification
| MS5015 Test Report | Download |
