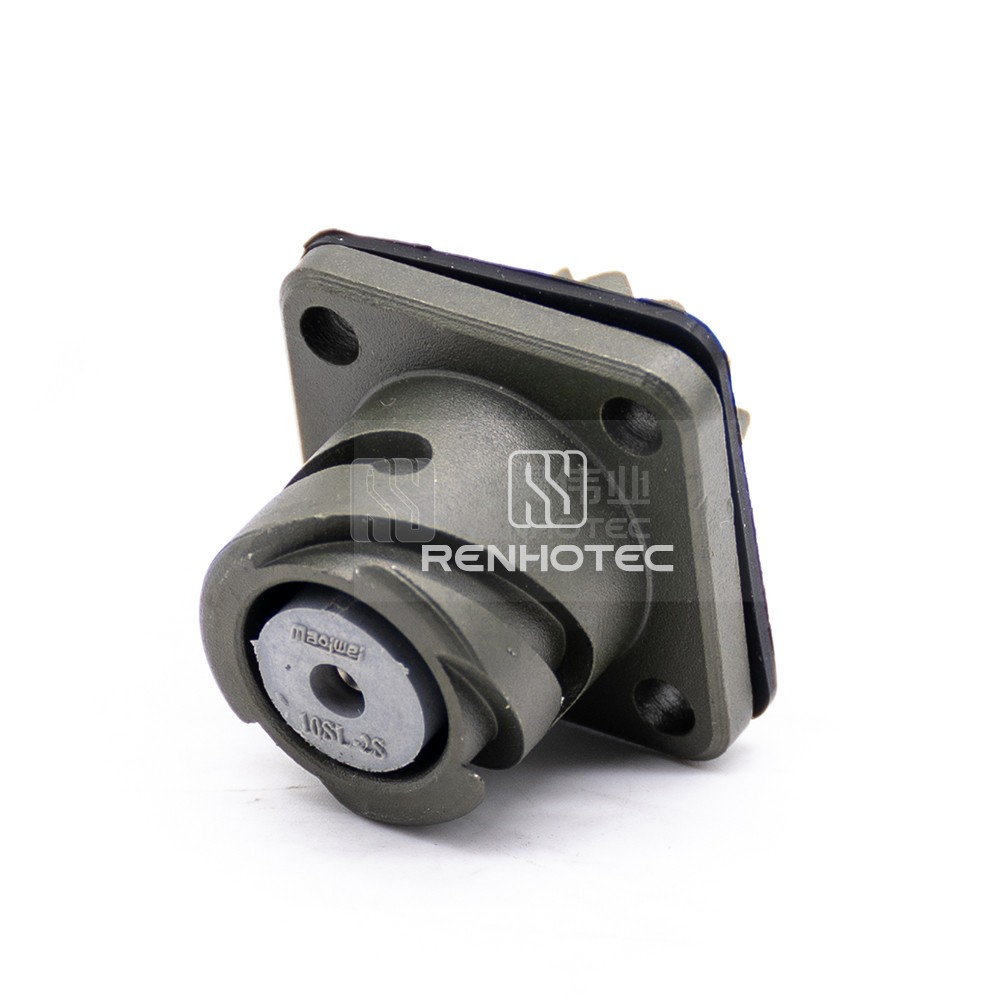

CA3102A10SL-2S
Bayonet Lock CA3102A10SL-2S 1Pin Female Box Mounting Receptacle Solder Cup- Overview
- Technical data
- Certification
- Download
Product certification
Product excerpt
This Bayonet Lock CA3102A10SL-2S receptacle is designed for box mounting and has a solder cup for easy connection. It features a 1-pin female connector for secure connections in various applications.
GeneralShellMechanicalMaterialEnvironmentalElectrical
General | |
---|---|
Connector Type | Receptacle |
Orientation | Straight |
Contact Type | Female Pin |
Number of Positions | 1 |
Contact Arrangements | 10SL-2 |
Contact Termination | Solder Cup |
Key | N |
Color | Olive Green |
Shell | |
---|---|
Shell Size | 10SL |
Mechanical | |
---|---|
Fastening Type | Bayonet |
Mounting Type | Panel Mount |
Mounting Feature | Flange |
Wire Gauge or Range | 20-16AWG |
Material | |
---|---|
Shell Material | Aluminum Alloy |
Shell Finish | Olive Drab Cadmium |
Contact Finish | Silver |
Environmental | |
---|---|
Ingress Protection | IP67 |
Operating Temperature | -55°C ~ + 125°C |
Electrical | |
---|---|
Shielding | Unshielded |
Rated Current | 15A |
Rated Voltage | 500V |
Certification
MS5015 Test Report | Download |
